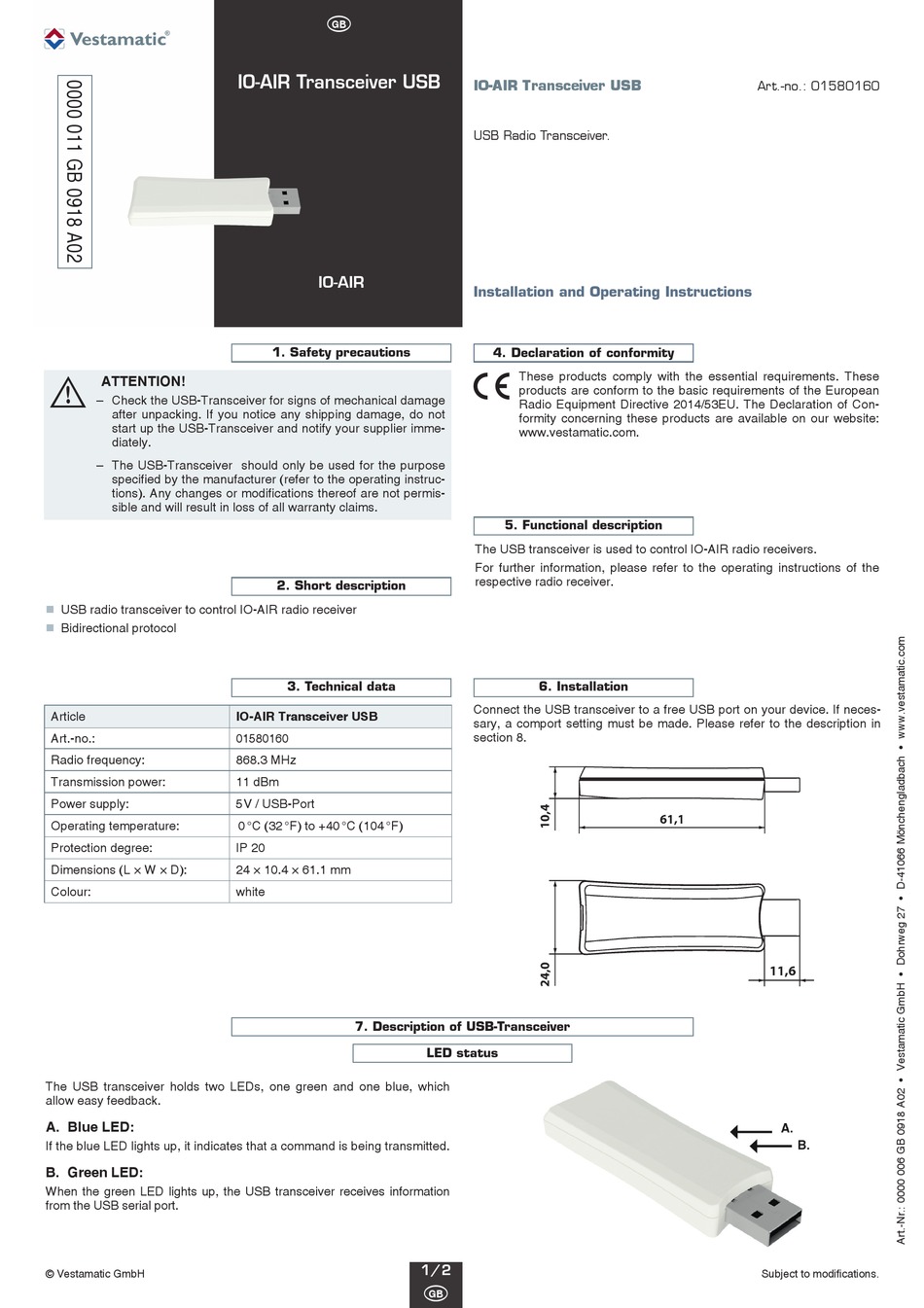

Vestamatic IO-AIR Installation And Operating Instructions

Ä ATTENTION!
– Check the USB-Transceiver for signs of mechanical damage
after unpacking. If you notice any shipping damage, do not
start up the USB-Transceiver and notify your sup plier imme-
diately.
– The USB-Transceiver should only be used for the purpose
specified by the manufac turer (refer to the operating instruc-
tions). Any changes or modifications thereof are not permis-
sible and will result in loss of all warranty claims.
USB radio transceiver to control IO-AIR radio receiver
„
Bidirectional protocol
„
Article
Art.-no.:
Radio frequency:
Transmission power:
Power supply:
Operating temperature:
Protection degree:
Dimensions (L × W × D):
Colour:
The USB transceiver holds two LEDs, one green and one blue, which
allow easy feedback.
A. Blue LED:
If the blue LED lights up, it indicates that a command is being transmitted.
B. Green LED:
When the green LED lights up, the USB transceiver receives information
from the USB serial port.
© Vestamatic GmbH
G
IO-AIR Transceiver USB
IO-AIR

1. Safety precautions

2. Short description

3. Technical data

IO-AIR Transceiver USB
01580160
868.3 MHz
11 dBm
5 V / USB-Port
0 °C (32 °F) to +40 °C (104 °F)
IP 20
24 × 10.4 × 61.1 mm
white

7. Description of USB-Transceiver

IO-AIR Transceiver USB
USB Radio Transceiver.
Installation and Operating Instructions

4. Declaration of conformity

p
These products comply with the essential requirements. These
products are conform to the basic requirements of the European
Radio Equipment Directive 2014/53EU. The Declaration of Con-
formity concerning these products are available on our website:
www.vestamatic.com.

5. Functional description

The USB transceiver is used to control IO-AIR radio receivers.
For further information, please refer to the operating instructions of the
respective radio receiver.

6. Installation

Connect the USB transceiver to a free USB port on your device. If neces-
sary, a comport setting must be made. Please refer to the description in
section 8.
LED status
1/2
G
IO-AIR Transceiver USB
Art.-no.: 01580160
Subject to modifications.
