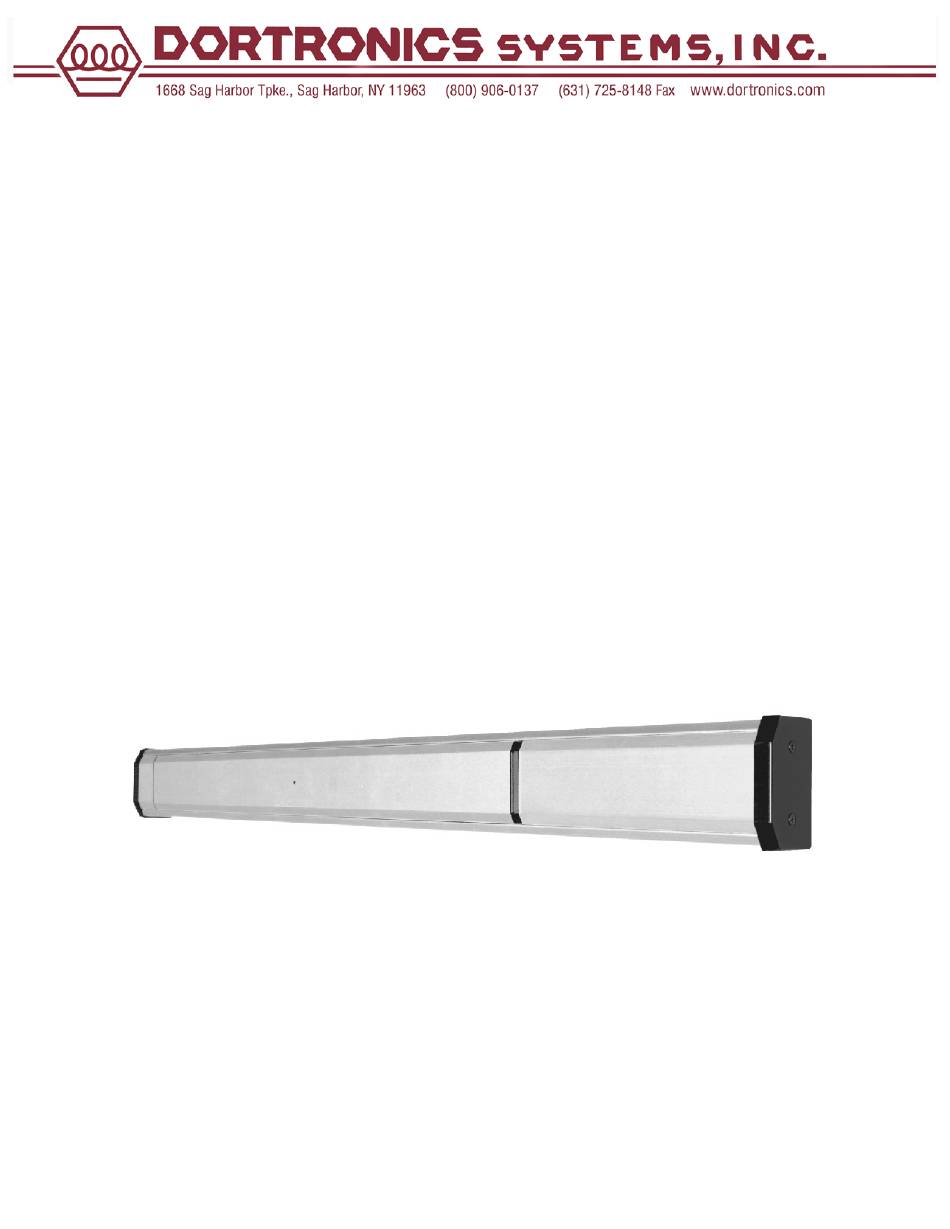

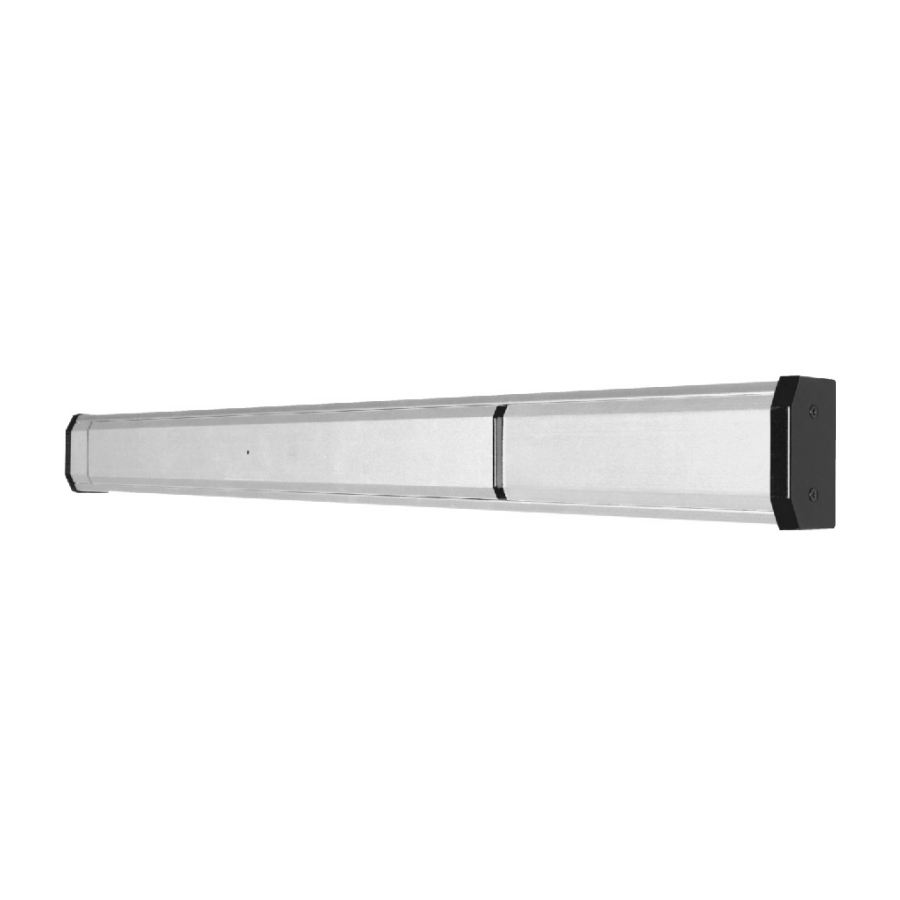

- Page 1 6420 Series Egress Bar Mounting Instructions Rev-1/16...
- Page 2 Step #1 Locate mounting hole on inactive stile. Drill and tap 1/4-20 threads. 40” from bottom of door. Cut lenght of bar off of inactive end if necessary to accomodate smaller width doors leaving enough length for the base plate & optional switch assembly bracket. 1/4-20 1/4-20x1/2"...
- Page 3 Step #2 Exit device attachement. Level & Secure active end of panic by installing two 12-24x1/2 pan HD.M.S. Secure inactive end with single 1/4-20x1/2 round HD.M.S. (phil.) with washer through inactive base plate. Once inactive base plate is secure drill 3/8" wire access hole thru plate & bar into inactive stile.
- Page 6 Step #3 Install strike. To install strike, locate 10-24x5/8 drill & tap on active stile (2 places) Mount & adjust with slotted plate and secure strike. S-Strike...
- Page 7 Step #4 Dogging Instructions: TO DOG - Insert hex key turn clockwise until it stops, fully depress touch bar then release. TO UNDOG - Insert hex key turn clockwise until it stops, touch bar will release. Touch Bar Insert Hex Key...
