Summary of Contents for Atmos 507.3115.B

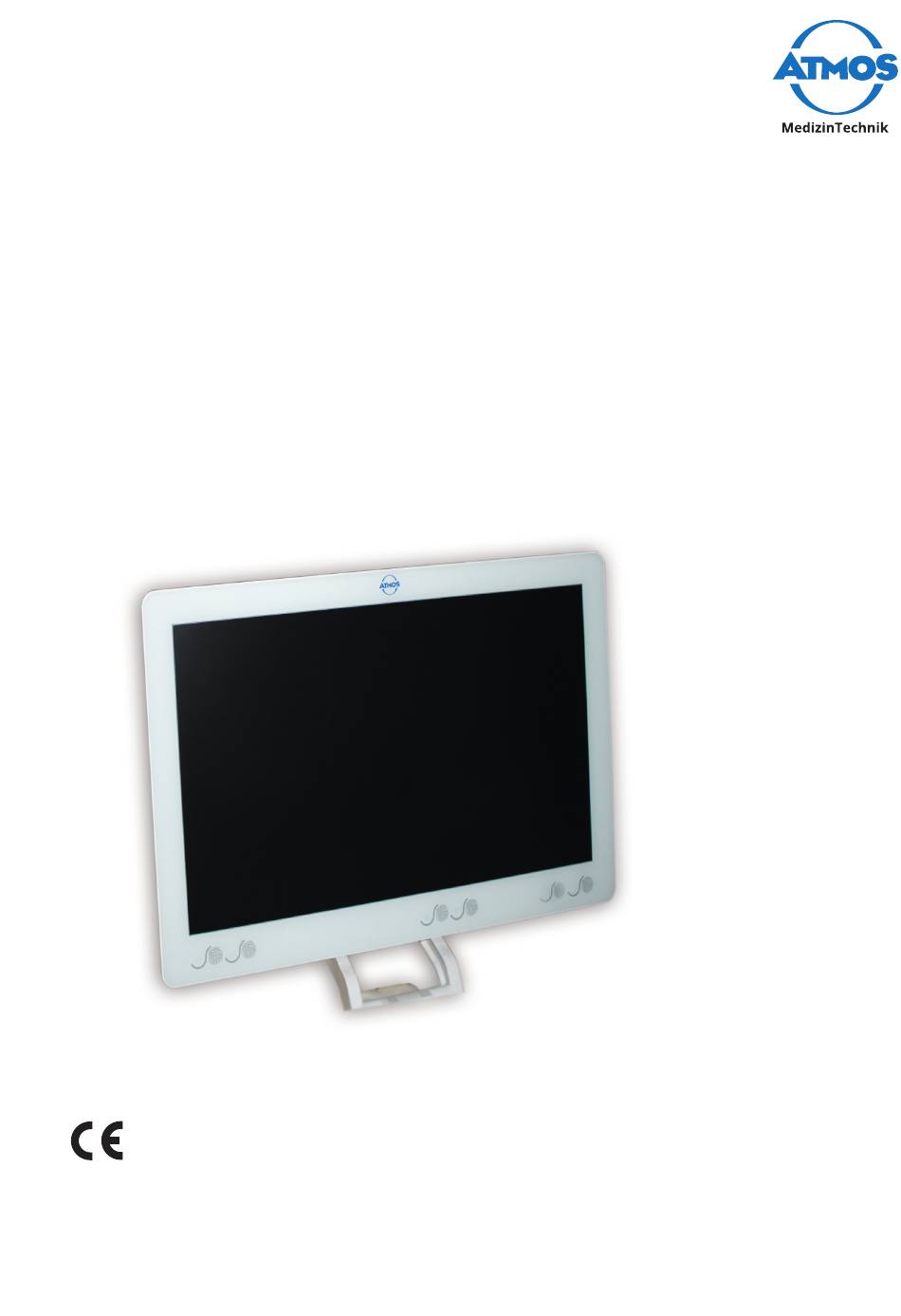

- Page 1 Operating Instructions ATMOS ® Full-HD Monitor English 507.3115.B / 507.3116.B / 507.3117.B / 507.3118.B 2016-05 Index 01...
-
Page 2: Table Of Contents
Table of contents Introduction ........3 4.2 Switching the device on ....13 1.1 Information on operating 4.3 Switching the device off ....13 instructions .........3 4.4 Setting the display up .....13 1.2 Explanation of pictures and 4.4.1 Signal source ........14 symbols..........4 4.4.2 Image settings ......14 1.3 Intended use ........5 4.4.3 Colour settings ......14 1.3.1 Monitor 21.5"... -
Page 3: Introduction
The instructions are intended for the training and teaching of operating personnel and are intended as a reference. Reproduction, even partial, is only permitted with written permission from ATMOS. These operating instructions must always be kept available near the device. -
Page 4: Explanation Of Pictures And Symbols
1.2 Explanation of pictures and symbols In the operating instructions DANGER Warning of a danger which causes immediate death or serious injury. Observe the necessary measures. WARNING Beware of a danger which can cause death or serious injury. Observe the necessary measures. -
Page 5: Intended Use
Accessories This product complies with Do not dispose in the household waste the relevant requirements of EU directives Protection class II UL Approval, this product meets the requirements of the USA and Canada DC voltage Certified by TÜV Rheinland Rheinland CERTIFIED 1.3 Intended use 1.3.1 Monitor 21.5"... -
Page 6: Function
Monitor with touch function provides a USB signal and are connected with a USB cable to another device. 1.5 Intended users Medically trained assistance and technical personnel, doctors. 1.6 Scope of delivery Monitor 21.5" Full-HD, Monitor 24" Full-HD 1 x ATMOS 1 x power 1 x power cable 1 x operating ® Monitor supply instructions Monitor 21.5“... -
Page 7: Transport And Storage
2. Fill in form QD 434 “customer complaint/return shipment”. The form comes with the product and can be found at www.atmosmed.de. 3. Send the device to ATMOS (Chapter „6.3 Sending the device in“ on page 18). Environmental conditions for transport and storage: •... -
Page 8: Hints For Your Safety
In the case, clean and disinfect the device and send it to ATMOS for repair. • Only use original accessories and original spare parts from ATMOS. This applies to the mains cable in particular. •... -
Page 9: Installation And Commissioning
3 Installation and Commissioning 3.1 Device overview Front view and controls nTeR key (without function) IGnaL SOuRce Rear view Supply jack (behind interface cover) VESA100 interface Connections (behind interface cover) Nameplate Equipotential bonding Installation and Commissioning... -
Page 10: Unpacking The Device
Connections No. Connection class Connection USB (only on Monitor with Touch PC (connection with Touch function) function) Video source with HD video signal Display port Video source with HD video signal Cinch Video source with SD video signal S-Video Video source with SD video signal AC adaptor jack Mains supply 3.2 Unpacking the device 1. Place the package on a solid surface. The display may be scratched by sharp objects. -
Page 11: Connecting The Device
& The device can acclimatise. 3. Check the device for any transport damage. If the device is damaged: Document and report the transport damage. Send the device to ATMOS, see Chapter „6.3 Sending the device in“ on page 18. 4. Select a suitable operating location. -
Page 12: Use With Other Devices
15. Perform a function check, see Chapter „6.2 Function check“ on page 18. 3.4 Use with other devices Only qualified personnel may install electrical systems. The person who installs an electrical medical system is responsible for ensuring that the performance, installation and commissioning, safety, specifications and use of the ATMOS Monitor are not ® affected. Note the following when using the device in connection with other devices. -
Page 13: Operation
» All other keys are white and are ready for use. » The ATMOS logo is displayed on the monitor. » The monitor searches for an input signal. & The input signal search can be disabled, see Chapter „4.4.1 Signal source“ on page 4.3 Switching the device off... -
Page 14: Signal Source
4.4.1 Signal source To set the signal source up, go to Source options. • Main screen channel: Selects audio input, the image is displayed. • Input search: Enable or disable the automatic search for connected inputs. • PiP Mode: The images of the two inputs can be displayed simultaneously (Picture in Picture). -
Page 15: Sound Settings
4.4.5 Sound settings To adjust the sound settings, go to Audio Set-up. • Volume • Balance: Sets the right and left audio channel. • Bass: Sets the pitch depth. • Treble: Sets the pitch height. • Auto Volume 4.4.6 Settings menu To adjust the settings menu, go to OSD settings. -
Page 16: Cleaning And Disinfection
Make sure that the cleaning cloth is only damp and not wet. • Do not subject the device to an autoclave or sterilisation. • Do not immerse the device in disinfectant solution. 1. Turn the ATMOS Monitor off . ® 2. Separate the ATMOS Monitor from the mains supply. -
Page 17: Surface Disinfectant
5.2.1 Surface disinfectant Disinfectant Constituents in 100 g Manufacturer Hexaquart forte benzalkonium chloride (benzyl-C12-18 20 g BBraun, ® alkyldimethylammonium, chloride) 7.9 g Melsungen didecyldimethylammonium chloride 5 – 15 % Non-ionic surfactant < 5 % Meliseptol Wipes 1-Propanol 17 g BBraun, ®... -
Page 18: Maintenance And Service
To carry out these measures the person must have the necessary test devices and original spare parts. ATMOS recommends: Work should be carried out by an authorized ATMOS service partner. This ensures that repairs and testing are carried out professionally, original spare parts are used and warranty claims remain unaffected. -
Page 19: Troubleshooting
7 Troubleshooting The ATMOS Monitor was subject to a thorough inspection in the factory. However, ® should an error occur, you may be able to solve this yourself. Error indication Possible cause Remedy Device does not The power cable is 1. -
Page 20: Accessories
8 Accessories Accessories Carrier 507.3125.0 DVI cable - Display port, 2m 507.5507.0 20 Accessories... -
Page 21: Disposal
® 1. Clean and disinfect the device. 2. In Germany: Send the device to ATMOS or back to your specialist dealer. They will dispose of the device properly. 3. In other countries: Dispose of the device properly and in accordance with country- specific laws and regulations. -
Page 22: Technical Data
10 Technical data Voltage 100-240 V~ ± 10 %; 50-60 Hz Power input max. 1.6 A Power consumption 80 W max (230 VAC) Fuses 3.15 AT Other safety equipment Short circuit protection, overvoltage protection, overload protection: Shutdown with auto recovery Resolution 1920 x 1080 pixels (Full HD) Angle of view 178 degrees horizontal/vertical Brightness: 250 cd/m2... - Page 23 CE-Marking Class 1, CE GMDN code 16603 UMDNS code 16-603 ID No. (REF) 507.3115.0, 507.3116.0, 507.3117.0, 507.3118.0 Technical data...
-
Page 24: Information On Emc
When operation is required close to or in combination with other equipment, the electrical medical equipment must be observed to verify its intended operation in this arrangement. Guidance and manufacturer's declaration - electromagnetic emissions The ATMOS Monitor is designed for operation in the electromagnetic environment ® specified below. The customer or user of the ATMOS Monitor should ensure that it is ®... - Page 25 UT) commercial or hospital and voltage for 0,5 Cycles for 0.5 Cycle environment. If the user variations of the ATMOS Monitor ® 40 % U 40 % UT according to IEC requires continued operation (60 % Dip of the...
- Page 26 ATMOS Monitor is used exceeds the compliance level above, the ATMOS ® ® Monitor must be observed to demonstrate proper function. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the ATMOS Monitor.
- Page 27 ® The ATMOS Monitor is intended for use in an electromagnetic environment in which HF ® disturbances are controlled. The customer or user of the ATMOS Monitor can thereby ® help to prevent electromagnetic interference by maintaining a minimum distance...
- Page 28 ATMOS MedizinTechnik GmbH & Co. KG Ludwig-Kegel-Straße 16 79853 Lenzkirch / Germany Phone: +49 7653 689-0 atmos@atmosmed.de www.atmosmed.com...
