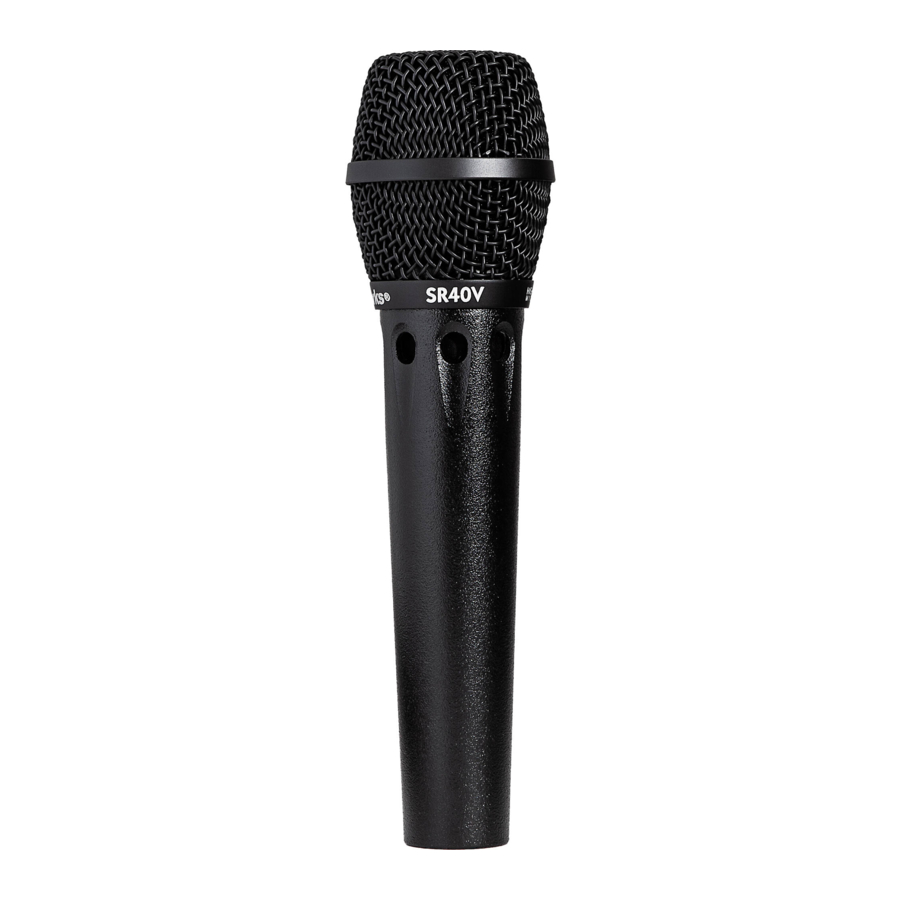

- Page 1 S R 4 0 V HANDHELD CONDENSER VOCAL MICROPHONE For more information, please visit www.earthworksaudio.com or call 1-603-654-2433.
- Page 2 • When not in use, keep the microphone in its case. T R O U B L E S H O O T I N G If you encounter issues while using your Earthworks Audio microphone, please make sure that: • Your microphone is connected to an active power supply.
- Page 3 In contrast, if one were asked to spread their arms to indicate the width of the pick-up pattern of an Earthworks cardioid microphone, they would indicate something like shown in Figure 3a. The actual polar response of an Earthworks cardioid microphone is illustrated in Figure 3b. Again, notice that the shaded areas in Figures 3a and 3b are virtually the same.
- Page 4 In contrast, the near-perfect polar response of Earthworks cardioid microphones provide a wider pickup pattern (or area) where you can obtain the full frequency response of the microphones. Figure 5 on the following page, is the same 80-voice choir is covered using only 3 Earthworks cardioid microphones. Figure 5.
- Page 5 Figure 8 below, shows that it would actually take 12 conventional cardioid mi-crophones to provide the same coverage as 3 Earthworks cardioid microphones, when placed 3 feet in front of the choir. Figure 8. An 80-voice choir miked with 12 conventional microphones at 3 feet Three characteristics of Earthworks microphones will provide more gain before feedback: (1) Smooth off-axis response, (2) picking up far less sound from the rear of the microphone and (3) wider usable polar-response that allows microphones to be placed closer to the source.
- Page 6 C L O S E R M I K I N G What we have reviewed so far is technical information shown on charts and graphs. Now let’s look at what P R OV I D E S A D D I T I O N A L happens in the actual use and application of these two types of cardioid microphones.
- Page 7 C H O I R M I C ™ D E S I G N The majority of conventional hanging choir microphones suffer from several similar design flaws. Some P H I L O S O P H Y have the microphone electronics installed in the ceiling with unbalanced microphone cable going to the microphone.
-
Page 8: Online Warranty Registration
WA R R A N T Y & R E PA I R Online Warranty Registration You can perform the warranty registration for your Earthworks microphones online by visiting the Earthworks website at www.earthworksaudio.com/register. Simply complete this form with the required information. You can also register multiple microphones on the same online registration form. - Page 9 G U I D E L I N E S Earthworks near-perfect polar response may require some elements of your mike placement to be F O R P O S I T I O N I N G done differently. Please read the manual to gain a full understanding of the pick-up characteristics of C H O I R M I C S Earthworks cardioid microphones.
- Page 10 37 Wilton Rd. Milford, NH 03055 (603) 654-2433 sales@earthworksaudio.com earthworksaudio.com © 2020 Earthworks, Inc...
