Horizon Fuel Cell Technologies HYDROFILL PRO User Manual

2.
the HYDROFILL PRO.
SOLUTION A: Disconnect the HYDROSTIK or HYDROSTIK PRO and re-connect it again slowly. Make sure the
smooth and the HYDROSTIK or HYDROSTIK PRO is fully inserted into the thread.
SOLUTION B:
SOLUTION C: Remove and re-connect the AC-DC adapter.
3.
SOLUTION A
SOLUTION B: Disconnect the HYDROSTIK or HYDROSTIK PRO and connect it to a fuel cell product to
confirm there is hydrogen in the cartridge.
*One way to check the volume of hydrogen inside a cartridge, is to weigh the HYDROSTIK or HYDROSTIK PRO before and
is around 0.9 grams.
4. The LED light alternates between red for 1 second and off for 3 seconds.
SOLUTION: Try to add 40°C to 70°C water into the water tank.
5. The LED light alternates between red for 1 second and off for 1 second.
SOLUTION: Check the water level of the water tank and waste water tank is correct. Either add
water to the water tank or remove water from the waste water tank as required.
6. T
SOLUTION A:
SOLUTION B: Check the water temperature (see 4. SOLUTION)

FREQUENTLY ASKED QUESTIONS

Q:
How is hydrogen stored?
A: Hydrogen is stored in small cartridges (HYDROSTIK or HYDROSTIK PRO) at low pressure. When refueling,
hydrogen gas is sent into the cartridge at high pressure, and adsorbed onto the surface area of a special metal
alloy which is contained inside the cartridges, thus becoming a solid (hydride). When connected to the fuel
cell, the HYDROSTIK or HYDROSTIK PRO cartridges slowly release hydrogen using a heat exchange process
with the ambient temperature.
Q: How can I refill HYDROSTIK or HYDROSTIK PRO cartridges with hydrogen?
A: Add water into the unit's water tank, connect the AC-DC adapter and insert a HYDROSTIK or HYDROSTIK PRO
cartridge. The HYDROFILL PRO will split water into hydrogen and oxygen, sending hydrogen into the
HYDROSTIK or HYDROSTIK PRO cartridge. It will take around 4-6.5 hours to fully fill a HYDROSTIK or
Q: What is the purity level of the hydrogen produced by the HYDROFILL PRO?
A: The purity of the hydrogen produced by the HYDROFILL PRO is 99.99%. The metal hydrides contained in the
cartridge first adsorb hydrogen, then release it at a higher purity into the fuel cell.
Q: When do I need to add water to the water tank?
A:
When should I empty the drainage tank?
Q:
A: When the waste tank is full, pour waste water out and refill the water tank.
Q:
A:
Empty the water tank if you will not use the HYDROFILL PRO within one hour. Add fresh
water. to the water tank before use again.
HydroFill Pro_UM_V1.5_EN
WARNING
• Do not tamper with, or disassemble the HYDROFILL PRO
• Keep HYDROFILL PRO away from fire, open flame, or heat sources
• Keep HYDROSTIK or HYDROSTIK PRO cartridge away from fire, open flame, or heat sources
• Keep HYDROFILL PRO away from children
• Add

SYSTEM OVERVIEW

The HYDROFILL PRO system uses a proton exchange
membrane (PEM) electrolyzer to recharge Horizon's
HYDROSTIK and HYDROSTIK PRO metal hydride cartridges
y.

SYSTEM FEATURES

Quiet, safe and convenient hydrogen supply
High hydrogen purity 99.99%
Connects to AC power

INCLUDED IN THIS BOX

a.

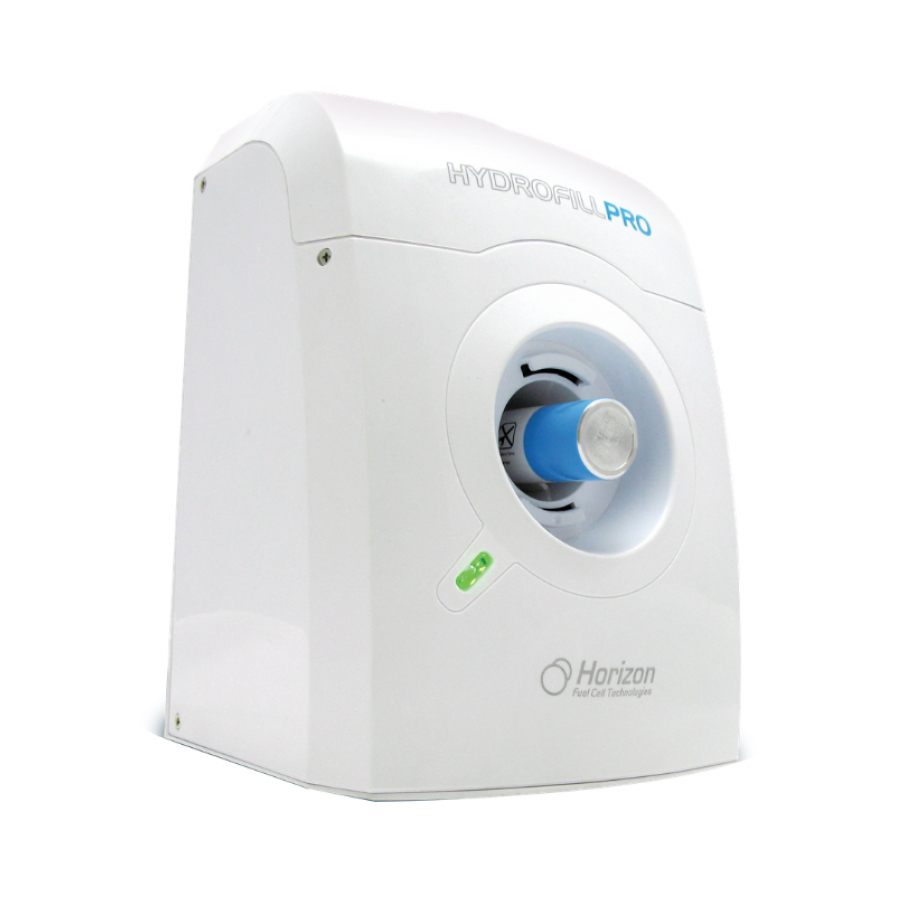

HYDROFILL PRO unit
b. AC-DC adapter cord
c. User Manual

SPECIFICATIONS

Stack type
Dimensions (W x D x H)
Weight
Rated power
Input voltage
Water input
Water temperature
Water
Hydrogen output pressure
Hydrogen genera on capacity
Purity
Refilling me for one cartridge
4
300000221
HYDROFILL PRO
USER MANUAL
carefully to avoid over-filling the water tank
and HYDROSTIK PRO cartridge
(b) AC-DC adapter
Proton exchange membrane electrolysis cell
145 x 153 x 208 mm (5.7 x 6 x 8.2 in)
1.8Kg ±5% (3.97Lbs ±5%)
≤23W
DC: 10V-19V
De-ionized or dis lled water
10-40°C (50-104°F)
Approx. 20ml/hr (1.2in /hr)
0-2.8 MPaG (0-406 PSI)
Up to 3L/hr (0-183 in /hr)
99.99%
HYDROSTIK and HYDROSTIK PRO
Around 4-6.5 hours (at 25C ambient temperature)
Water tank cover
Waste water tank
Water tank
HYDROSTIK or
HYDROSTIK PRO
cartridge port
Status indicator
(a) HYDROFILL PRO unit
HYDROFILL PRO
User Manual
(c) User Manual
3
