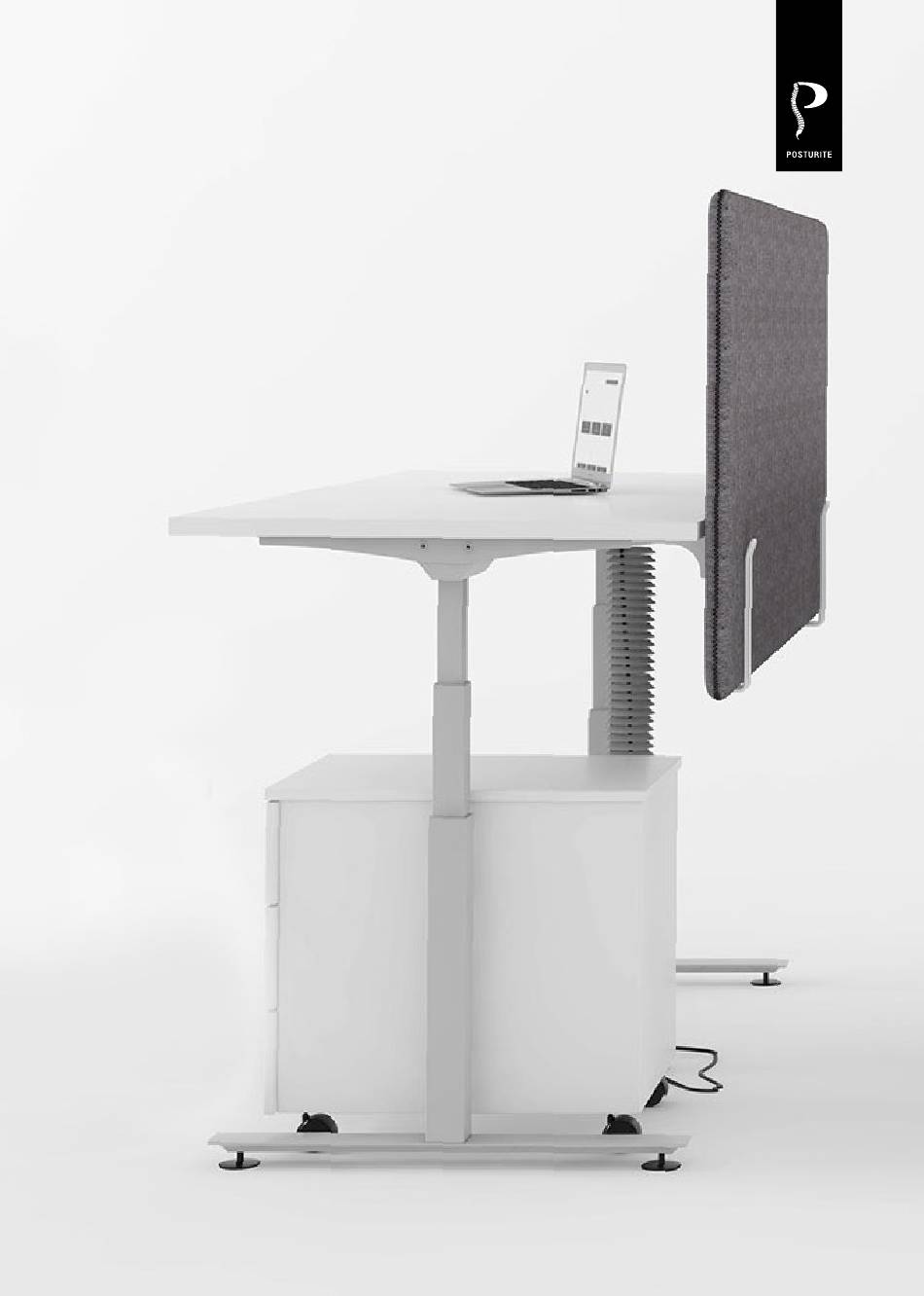

- Page 1 DeskRite 350 Electric Sit-Stand Desk Assembly Instructions...
- Page 2 Warning! Do not swap control boxes between Recommended Estimated time desks. Only connect power cable when people for to assemble: desk is fully assembled. Power adapter assembly: 2 20 minutes only for use on your desk. Contents Your package is likely to contain extra fastenings, should you need spares. 15mm M6 20mm M6 Adjustable...
- Page 3 Loosen the bolts in the head of the desk leg, slide the cross bars into place and retighten the bolts with the allen key provided. Note: you may need to extend the cross bars to reveal the attachment slots and bolt holes. Repeat on the opposite side until both sides are tightly screwed together.
- Page 4 Attach the desk feet to the legs using the bolts (B) and allen key provided. Screw in the adjustable base feet x 2 (C) into the desk foot. Repeat on the opposite side of the desk for the other leg. Repeat on the opposite side.
- Page 5 Use the bolts (D) to attach the desk top support arms to the desk frame. Ensure they are securely fastened using the allen key provided. Repeat on the opposite side. Adjust the width of the telescopic crossbars to accomodate the appropriate desk width required. Loosen and tigthen the hex bolts with the allen key.
- Page 6 Line up the holes on the desk top and support arms. Use the bolts (A) to secure the desk top into place. Using the screws (G) and washers (H) attach the cross bar to the desk top in the centre where the bar is narrower. Use the longer screws (F) to secure the cross bar where the cross bar is wider, as shown in diagram.
- Page 7 Use the screws (E) to screw the control box to the centre of desk top between the cross bar. Plug in the power cable and use the provided cable clips and ties to keep the cable secure and tidy.
- Page 8 Connect the switch to the control box. Using the screws (I) attach the switch to the front edge of the desk as shown.
- Page 9 Connect the leg cables into the control box as shown in the diagram below. Tidy up all the cables using the clips and ties provided. Plug into the mains power. Your desk is now fully assembled.
- Page 10 Once finished you can place your office equipment on the desk. This desk can hold up to 100kg of weight.
- Page 11 Once assembled... 1. Once you’ve assembled the desk, you will need to calibrate the electronic motor. To do this, lower the desk to its lowest setting by pressing the down (-) button. Now the desk is ready to be adjusted to a suitable height for you. 2.
- Page 12 Other ergonomic office products available Opløft Penguin Number Slide Keyboard Ambidextrous Vertical Mouse Sit-stand platform with retractable number pad MoovRite MultiLite Vision Rocking standing platform Laptop/Tablet Stand Document Holder and Writing Slope +44 (0) 345 345 0010 support@posturite.co.uk posturite.co.uk...
