Summary of Contents for Abbey B06-071

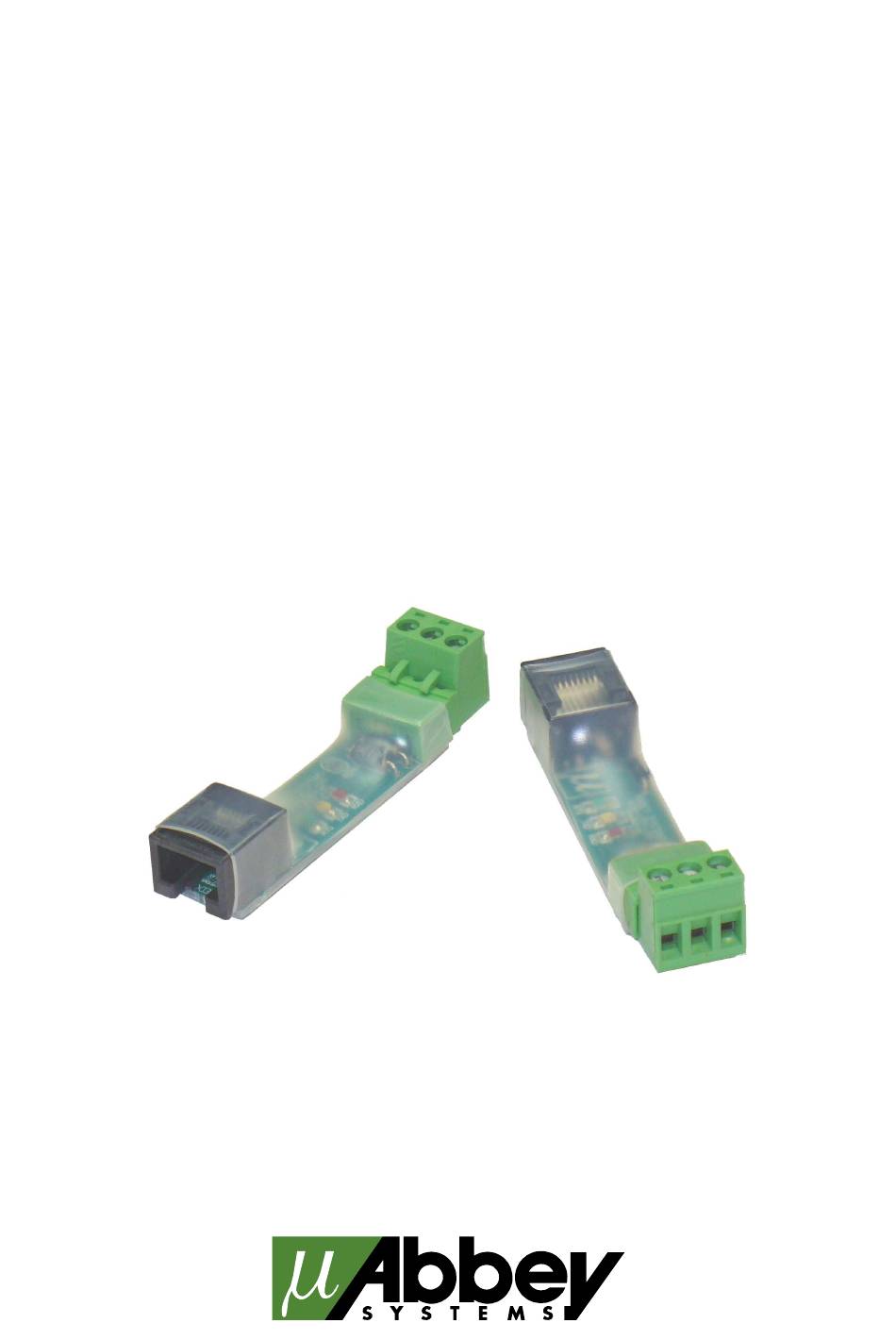

- Page 1 RS232 to RS485 Converter Model B06-071 Installation Guide...
- Page 2 Introduction The B06-071 converts RS-232 serial data to and from RS-485. It is designed for use with the Topcat and Swampfox RTUs to allow communication with one or more IEDs with isolated RS485 interfaces. Status RS-232 LEDs RS-485 B06-071 Layout Connection to Abbey Systems RTUs Use an RJ-45 patch cable to connect CN1 to the appropriate serial port on the RTU.
- Page 3 Isolation The converter does not provide electrical isolation. Isolation is recommended and should be provided by the RS-485 interface in each IED. Stand-alone products can also provide isolation if there is none present on the IED. IG-518-4-2012-Feb B06-071 Installation Guide...
- Page 4 Copyright © 2006-2014 Abbey Systems Ltd www.abbey.co.nz support@abbey.co.nz Level 3, 220 Willis Street PO Box 27-497 Wellington, New Zealand Phone +64-4-385-6611 Fax +64-4-3856848 Document Number IG-518-4-2014-Apr Products Covered B06-071 Revision Number Revision date 19 May 2014...
