Summary of Contents for NetComm Wireless NDD-0203-02

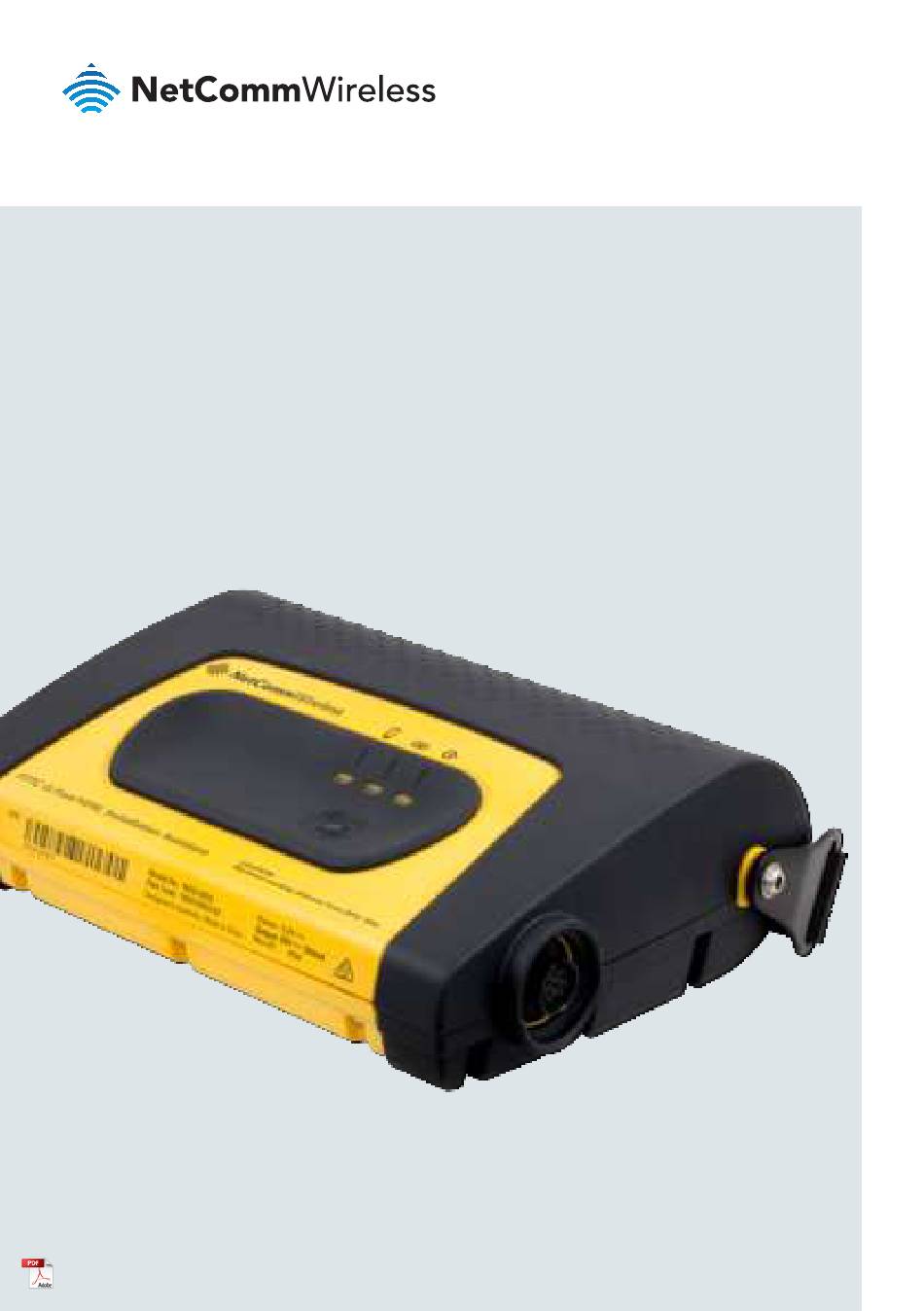

- Page 1 Quick Start Guide FTTC G.Fast/VDSL Installation Assistant NDD-0203-02...
- Page 2 Quick Start Guide This quick start guide provides an introduction to the FTTC G.Fast/VDSL Installation Assistant. The FTTC G.Fast/VDSL Installation Assistant is used to power an FTTC DPU and allows technicians to configure and perform diagnostics on an FTTC DPU.
-
Page 3: Package Contents
NDD-0203-02 - FTTC G.Fast/VDSL Installation Assistant Package contents The NDD-0203-02 FTTC G.Fast/VDSL Installation Assistant package includes: 1 x FTTC G.Fast/VDSL Installation Assistant (NDD-0203-02) 1 x Battery pack (Li-ion, 1 x Battery charger 1 x Battery charger 10.4 Ah, removable) mounting bracket... -
Page 4: Device Overview
Device overview ITEM Power button LED indicators Output port (used with Dual RJ11 lead) Battery compartment cover Carry strap... -
Page 5: Led Indicators
NDD-0203-02 - FTTC G.Fast/VDSL Installation Assistant LED indicators The LED indicators provide you with information about the power, connection and remaining battery level of the device. LED DESCRIPTION COLOUR FUNCTION Displays the power (ON/OFF) status of the Installation Power Status Assistant. -
Page 6: Battery Status Led
Battery Status LED COLOUR STATE STATUS Blinking one time per second < 10% 10 - 30% 30 - 60% Amber 60% - 100% Green Note: We recommend that you do not begin an installation if the battery charge level is below 10%. Audible Alerts ALERT STATUS... - Page 7 NDD-0203-02 - FTTC G.Fast/VDSL Installation Assistant Getting started with the Installation Assistant Push the retaining clip up and then lift as shown in the image below to remove the battery compartment cover. Insert the battery pack into the battery compartment as shown below, taking care to align it correctly, then replace the battery compartment cover.
- Page 8 Connect the round end of the dual RJ11 lead to the output port of the Installation Assistant and turn the cable gland clockwise to lock it in place. Connect the pre-wired line of the FTTC DPU to the black DPU port of the dual RJ11 lead.
- Page 9 NDD-0203-02 - FTTC G.Fast/VDSL Installation Assistant Push the power button on the top panel of the Installation Assistant once. The unit beeps once and the power LED lights up blue to indicate the Installation Assistant has turned on. The DPU takes approximately 10 minutes to pre-charge.
- Page 10 Using the magnetic wand The FTTC DPU features a magnetic service button which is used with the magnetic wand to trigger the following functionality: A short hold with the magnetic wand reactivates the LED indicators for 10 minutes (1 to 10 seconds magnet proximity). A medium hold with the magnetic wand reboots the FTTC DPU (11 to 20 seconds magnet proximity).
-
Page 11: Charging The Battery
NDD-0203-02 - FTTC G.Fast/VDSL Installation Assistant Charging the battery Place the battery in the charger as shown below. The battery may only be inserted into the charger in one direction. The Installation Assistant package includes both a 12 V DC Charge lead with cigarette lighter plug and a 240 V AC to 15 V DC adapter which can be used to power the charger. - Page 12 Charger Status LED The charger features a single bi-colour (red/green) LED indicator. See the table below for a description of each status of the LED indicator. COLOUR STATE STATUS Charger powered on. No battery Fault (Battery overheated, battery fault, or charger voltage too low) Blinking once per second Blinking once...
-
Page 13: Mounting The Charger
NDD-0203-02 - FTTC G.Fast/VDSL Installation Assistant Mounting the charger To mount the charger, place screws, bolts or other fastening equipment through the holes on the mounting bracket. The dimensions of the holes are given below. 47 mm 4.50 mm Ensure that you leave at least 157mm from the top of the charger to allow the battery to... - Page 14 Ordering additional parts If you require additional parts, contact your sales representative and quote the following part numbers: PART NUMBER PART NAME CBL-0094-PKG FTTC Dual RJ11 lead BAT-0005-PKG FTTC Battery pack HDW-0067-PKG FTTC Magnetic wand HDW-0062-PKG FTTC Battery charger pack...
- Page 15 NDD-0203-02 - FTTC G.Fast/VDSL Installation Assistant DPU Troubleshooting DPU is not powering up • Only use the FTTC Installation Assistant to power up the DPU. The Network Connection Device (NCD) must not be used in the field for installation. Check the ports of the Y-cable and the RJ-11 plug from Line 1 of the DPU.
- Page 16 Check that the DPU is connected to the DPU port of the Y-cable. The DPU end of • the Y-cable is BLACK. Y-cable RJ-11 If the DPU powers up and won’t attach to the OLT, check that the fibre connector •...
-
Page 17: Safety And Product Care
NDD-0203-02 - FTTC G.Fast/VDSL Installation Assistant Safety and product care AS/NZS CISPR 32 Warning Warning: This is a class A product. In a domestic environment, this product may cause radio interference in which case the user may be required to take adequate measures. - Page 18 Do not use or install this product in extremely hot or cold areas. Ensure that the device is installed in an area where the temperature is within the supported operating temperature ranges: In Use: (-5°C to 50°C) Charging: (0°C to 40°C) FTTC G.Fast/VDSL Installation Assistant IP rating: IP54 Do not use your device in an enclosed environment or where heat dissipation is poor.
- Page 19 NDD-0203-02 - FTTC G.Fast/VDSL Installation Assistant Device heating Your device may become warm during normal use. Children Do not leave your device and its accessories within the reach of small children or allow them to play with it. They could hurt themselves or others, or could accidentally damage the device.
- Page 20 NETCOMM WIRELESS LIMITED ABN 85 002 490 486 Head Office, 18-20 Orion Road Lane Cove, Sydney, NSW 2066, Australia +61 2 8205 3888 +61 2 9424 2010 sales@netcommwireless.com www.netcommwireless.com...
