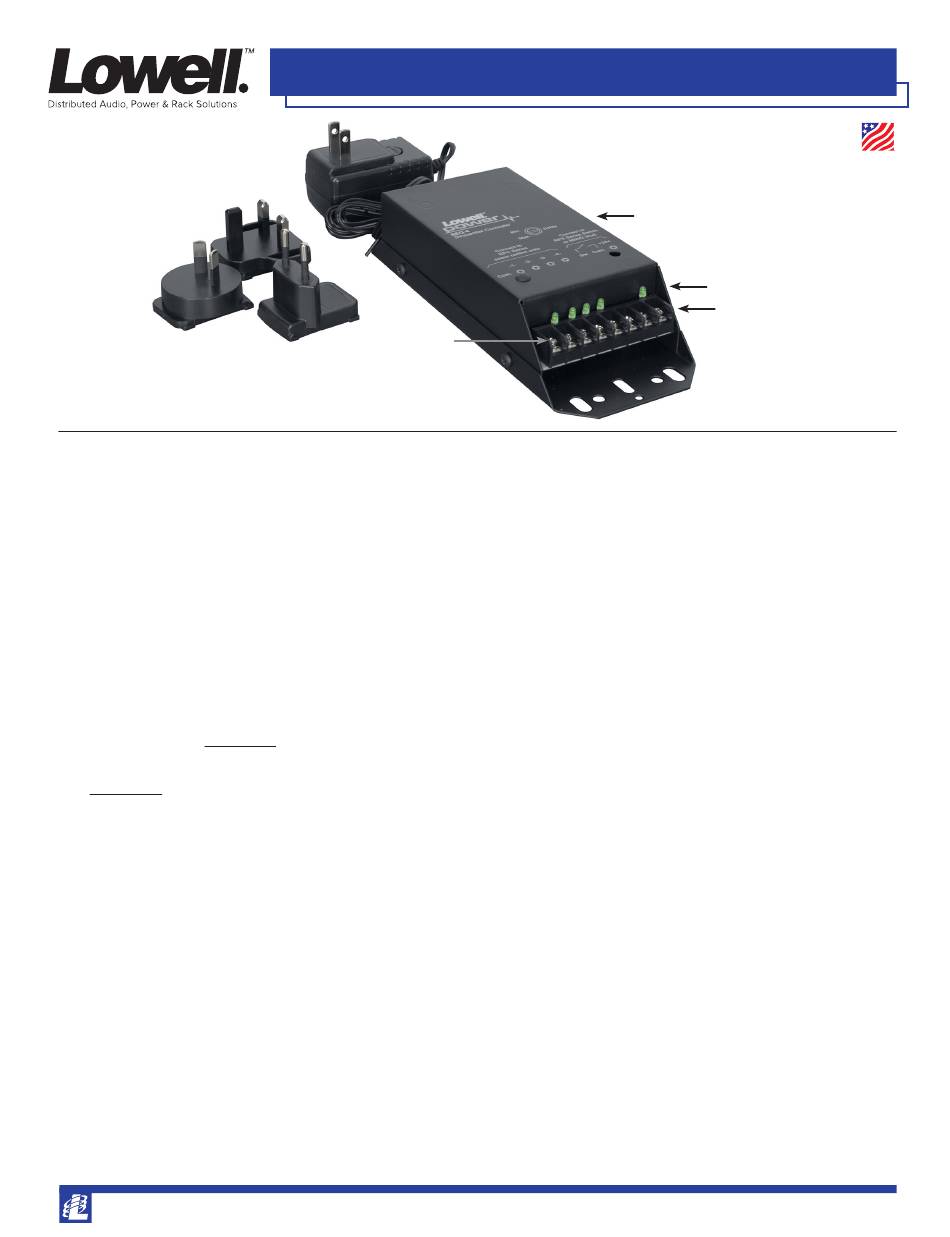

Compact low voltage four step sequencer model SEQ-4 is
designed to work with a single external switch and low voltage
remote power controls (RPCs) to provide time-delayed activation
and deactivation of AC powered equipment on site or at remote
locations.
Note: This sequencer is for use with compatible components that feature classic
connections. It is not for use with devices that feature pass-through connections.
FEATURES:
• Power Requirement: 100-240VAC 12W
• Activation Trigger: Sequencing is initiated by a remote
external switch (order separately).
– The circuitry is designed to operate using a single remote
SPST switch with maintained contact closure.
– The sequencer can accept mulltiple switches if they have
momentary contact closure and Lowell MSM2 module is
connected between the sequencer and switches.
• Four (4) Step Delay:
– Time-delayed closure circuits activate in sequential order
(1, 2, 3, 4) and deactivate in reverse order.
– The delay between steps can be adjusted via an externally
accessible trimpot (0.5-10 seconds).
– LEDs provide visual status of the activation sequence.
– Includes auxiliary 24VDC output (300mA max.) for use with
remote indicators, if needed.
• Compact Chassis: 7" x 3.28" x 1.69" (4 lbs.) steel chassis
with black powder epoxy finish and mounting holes.
– Unit can be installed in a remote location or rack panel (2U).
– Operational diagram printed on top of chassis aids system
set-up.
• Country of Origin: Made in U.S.A. with global components
Lowell strives to provide accurate information while reserving the right to change specifications and/or improve manufacturing methods without prior notification.
©2021 Lowell Manufacturing Co., 100 Integram Dr., Pacific MO 63069 / tel. 800.325.9660 / www.lowellmfg.com
OUTPUT to connections
(up to 10 RPCs for each circuit)
• Power Supply: UL Listed power supply (100-240VAC input,
• Installation: The sequencer is typically installed in a
• Connections: Order compatible remote power controls and
• A&E Specifications: The four step sequencer shall be Lowell
Low Voltage Sequencer (4 step): SEQ-4
Chart for connections
24VDC 500mA output) with 6 ft. cord and NEMA 1-15P plug.
Includes three adaptors for international use (Schuko CEE
7/16, BS1362, AS3112).
convenient location, while remote power controls are placed
near equipment to be controlled—in another rack, room or
building.
– Maximum distance between switch, sequencer and remote
power controls: 22 gauge wire = 6,600 ft.; 18 gauge wire
= 17,160 ft.
– System Capacity: Accepts up to 10 RPCs per step.
switches separately. (See last page.)
model SEQ-4, which shall feature barrier strip terminals for
connection to a single external remote switch with maintained
contact closure (or multiple remote switches with momentary
closure and Lowell MSM2 module wired between the
sequencer and switches). The sequencer shall connect to
external remote power controls (RPCs) to activate remote
equipment in four steps with an adjustable time delay between
each step. It shall activate RPCs in order (1, 2, 3, 4) and
deactivate them in reverse order. The sequencer shall feature
a steel chassis with mounting holes, black powder epoxy
finish, and overall dimensions of 7" x 3.28" x 1.69". It shall
be made in the USA with global components, and include a UL
Listed power supply with NEMA 1-15 plug and three adaptors
(Schuko CEE 7/16, BS1362, AS3112). External switches and
remote power controls are required for sequencer use and
shall be ordered separately.
Made in USA

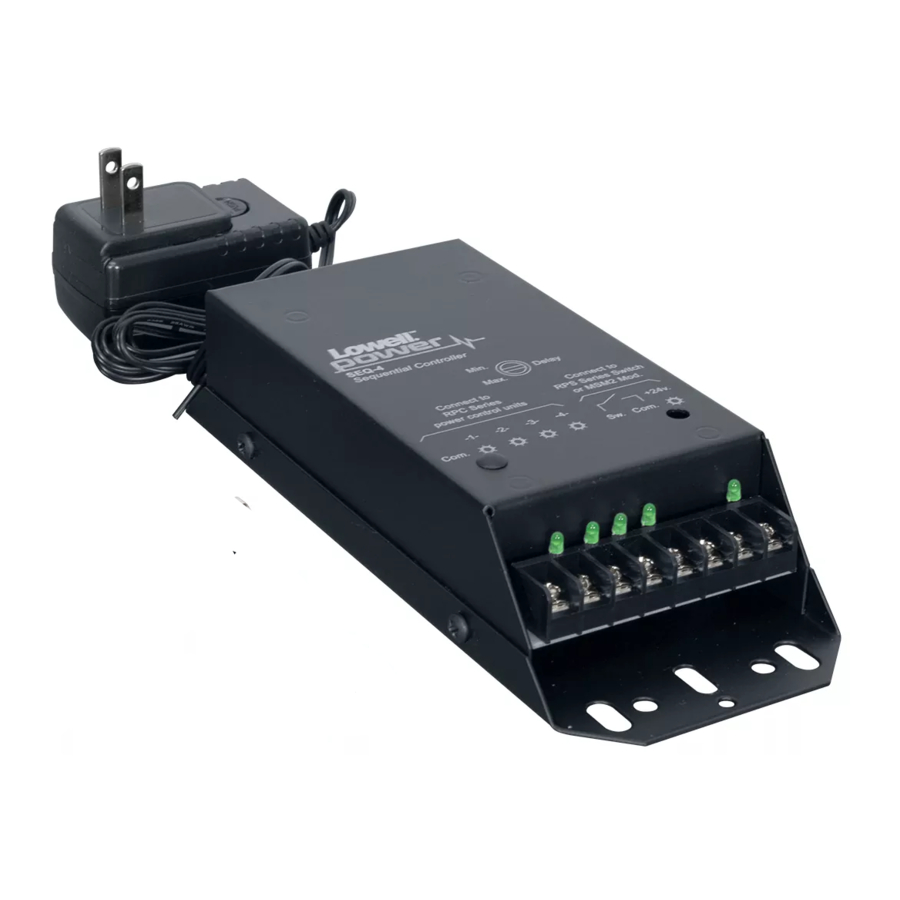

LEDs show sequencing status
INPUT for activation trigger
Spec 1602
Model SEQ-4 Rev. 02-02-21 | pg. 1/4
