Summary of Contents for Foresight Sports FTP10

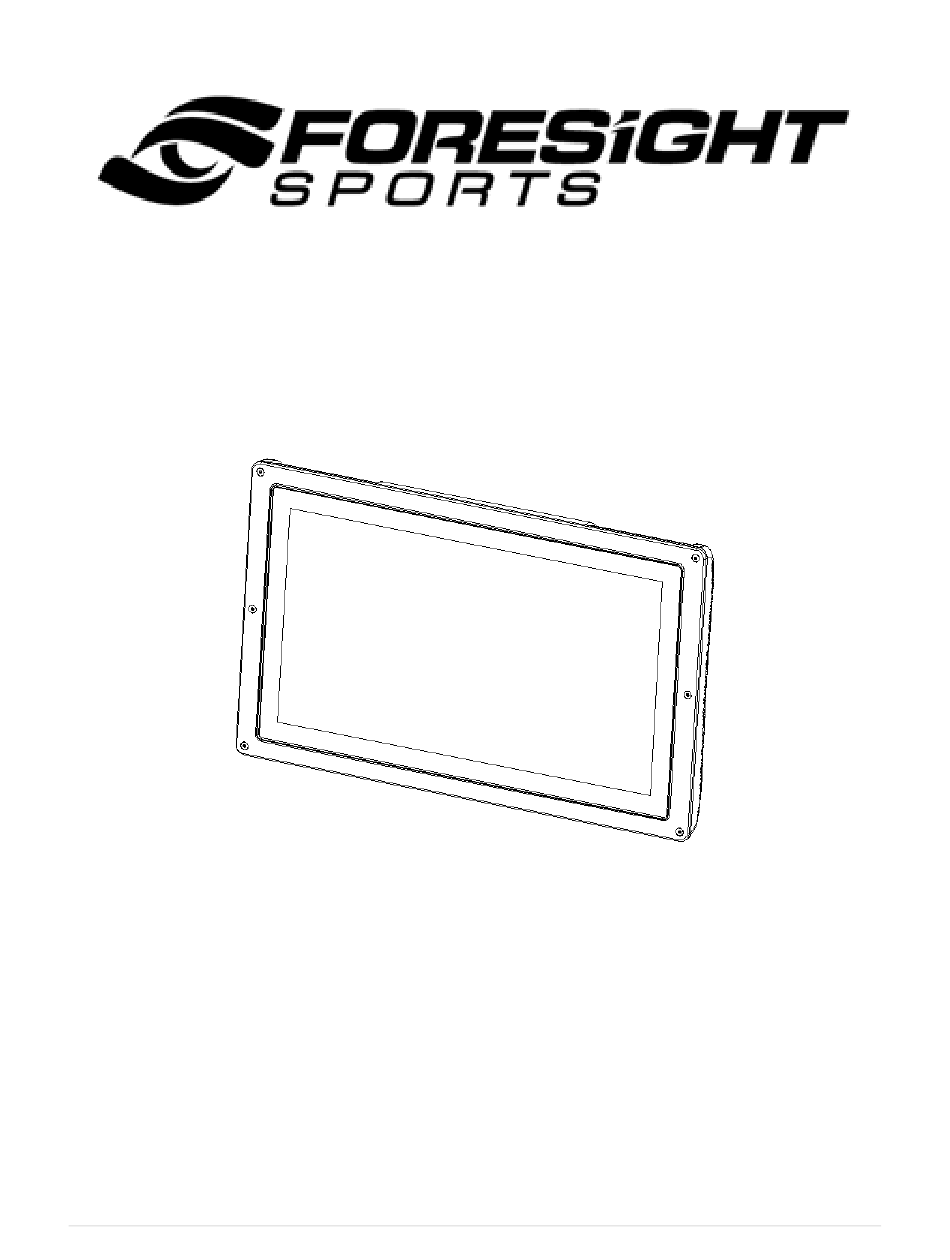

- Page 1 Touch Panel Installation and Operation Guide F T P 1 0 0 I n s t a l l a t i o n a n d O p e r a t i n g I n s t r u c t i o n s R e v . 0 2...
-
Page 2: Table Of Contents
Table of Contents Safety ................................3 International Standards: ........................... 4 Safety: ..............................4 EMC: ..............................4 Power ................................ 5 Installation: ............................... 5 Cleaning: ..............................6 Setup: ................................7 Provided Contents ............................ 7 Requirements: ............................8 Mounting Instructions ..........................8 Connecting the FTP100 ..........................9 Operating Instructions .......................... -
Page 3: Safety
Safety Notes Cautions and Warnings This guide contains icons indicating a degree of importance to the user. They are indicated as follows. Note: Indicates information the user should consider optimizing use of this device. Caution: Indicates potential for damage to device. User should follow instructions carefully to avoid potential problems. -
Page 4: International Standards
International Standards: Safety: (1) UL 62368-1: Ed. 2 - Audio/video, information and communication technology equipment - Part 1: Safety requirements (2) EN/IEC 62368-1:2014 - Audio/video, information and communication technology equipment - Part 1: Safety requirements (1) FCC 47 CFR Part 15, Subpart B – Verification - Title 47: Telecommunication; Part 15— Radio Frequency Devices. -
Page 5: Power
Power: The FTP 100 should only be powered suing the recommend input specification. Failure to do so may damage the device and prevent proper operation. The power should be supplied from a grounded source for safety. Failure to do so may result in electric shock. -
Page 6: Cleaning
Cleaning Only use cleaning agents designed for regular cleaning of LCD screens. Use a soft lint free cloth in combination. Never spray cleaning agents directly onto the screen. Always spray liquid onto the cloth and then begin wiping. If glue or strong residue which normal LCD cleaning agents are unable to remove exists, the use of a normal hexane agent is permissible. -
Page 7: Setup
Setup Provided Contents: FTP100 Touch Panel (1) Height – 14.37 in. Length – 22.85 in. Width – 2.44 in. Weight – 35.05 lbs. DIN Supply Output Cable (1) Length – 15ft. HDMI to Micro HDMI Cable (1) Length – 15ft. USB 2.0 to Mini USB Cable (1) Length –... -
Page 8: Requirements
The Foresight Sports Touch Panel FTP100 uses a standard 200mm x 100mm VESA mounting pattern using 8mm screws. To install the FTP100 follow the steps outlined below. In this example the FTP100 is being mounted to a Foresight Sports bay divider but the application is universal with a VESA approved mount. -
Page 9: Connecting The Ftp100
Top screws Fig. 2 Connecting the FTP100: STEP 1: Lift the rubber flap (Fig. 3) located at the bottom of the touch panel to access the AC Power, USB-B Mini and Micro HDMI ports Fig. 3 F T P 1 0 0 I n s t a l l a t i o n a n d O p e r a t i n g I n s t r u c t i o n s R e v . 0 2... - Page 10 STEP 2: Connect HDMI to Micro HDMI to the port underneath touch panel. DC Jack USB Port HDMI Port Fig. 4 STEP 3: Connect USB to USB Mini cable from PC to port underneath touch panel. STEP 4: Connect AC Power cable from 24-volt power source to port underneath touch panel (red LED indicator light should turn on and fan inside touch panel should begin spinning).
-
Page 11: Operating Instructions
STEP 5: Ensure all cables are seated properly and routed with a 90 bend to the right and seated in the guides molded on the plastic part of the enclosure. DONE: Touch panel should now be fully functional. Operating Instructions The FTP100 is designed to use finger touch to interact with the display. -
Page 12: Specifications
Specifications Display: Item Description Specification Model Name FTP100 Screen Diagonal 21.5” (546.85mm) Active Area 18.74” x 10.54” (476.06mm x 267.79mm) Pixels H x V 1920(x3) x 1080 Pixel Pitch 274.95µm (per one triad) x 247.95µm Pixel Arrangement RGB Vertical Stripe Display Mode AHVA, normally black White Luminance (Center)
