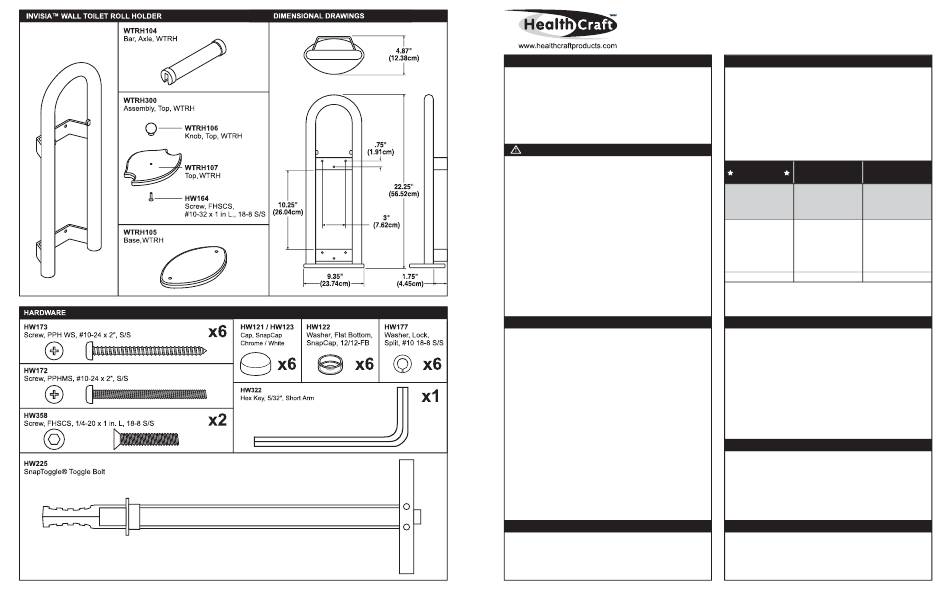

Healthcraft Invisia Installation Instructions

WTRH200 (BN/CRP/PCW)
Weldment, Handle, WTRH
HealthCraft Products Inc., Toll Free 888-619-9992.
2790 Fenton Road, Ottawa, Ontario, Canada, K1T 3T7.
x4
DC155 REV B Page 4 of 4
Specifications subject to change without notice.
THANK YOU...
Thank you for purchasing the Invisia™ Wall Toilet Roll Holder.
We are confident that you will find the unique design and
durable construction of this product to be of great assistance
in your daily routine.
To fully enjoy your Invisia™ Wall Toilet Roll Holder, please
take a few moments to read these instructions. You should
store these instructions in a safe place for future reference.
SAFETY CONSIDERATIONS
CAUTION: It is your responsibility to see that your Invisia™
Wall Toilet Roll Holder is properly assembled, installed, and
cared for. Failure to follow instructions in this manual could
result in serious injury. Support rails can be slippery when wet
- use this product with caution.
INVISIA™ WALL TOILET ROLL HOLDER INSTALLATION
The Invisia™ Wall Toilet Roll Holder should only be installed in
areas where the mounting surface is structurally sound.
Strengthening modifications may be required (see page 3 for
details). Should not be installed in fiberglass / acrylic shower
enclosures with insufficient stiffness and strength. Should not be
installed into metal studs. If you are not equipped to undertake
the outlined work we recommend that you have your Invisia™
Wall Toilet Roll Holder installed by a qualified contractor.
Suggested maximum user weight of support rail is
500lbs/227kg, however this rating is conditional upon
suitable fasteners and supporting surface.
WARRANTY
All HealthCraft™ Products are covered by a one year limited
warranty with the exception of hand grips which are subject to
normal wear. Buyer hereby indemnifies, agrees to hold
harmless and defend HealthCraft™ Products Inc. from and
against any and all liabilities, claims, (founded and
unfounded), losses, damages, costs and expenses (including
without limitation consequential damages and reasonable
professional fees) resulting from buyers specification,
application, or improper use of goods described hereon;
buyers omission or neglect.
HealthCraft™ Products Inc. does not assume any liability for
damage resulting from services performed by others or faulty
installation, misuse or misapplication of goods sold by
HealthCraft™ Products Inc.
x4
HealthCraft™ Products Inc. shall not be liable for prospective
profits or special, indirect, or consequential damages, or for
the cost of any corrective work done without HealthCraft™
Products Inc. prior approval. HealthCraft™ Products Inc. total
liability hereunder shall in no event exceed the purchase price
of the goods specified hereon.
TOOLS REQUIRED
• Level • Personal Protective Eyewear
• Hammer • Carbide tip drill suitable for tile
• Stud Finder • Protective blanket
• Center Punch
HealthCraft Products Inc., Toll Free 888-619-9992.
2790 Fenton Road, Ottawa, Ontario, Canada, K1T 3T7.
Invisia ™ Wall Toilet Roll Holder
WTRH-BN / WTRH-CRP / WTRH-PCW
FASTENERS: INSTALLATION & MAINTENANCE
The Invisia™ Wall Toilet Roll Holder must be secured to the
wall with fasteners appropriate to the structural material.
Included are 2 sets of mounting hardware for different wall
applications. Inspect, or have inspected (and tighten if
necessary) the screws on a monthly basis. See Page 3 for
structural reinforcement
SnapToggles® can be used as an alternative to structural
reinforcement - ONLY if
compromised and are judged to be suitably structural (1/2"
drywall, or tile walls on 1/2" min cement board).
FULL MOUNTING PARTIAL MOUNTING
STRUCTURE STRUCTURE
(RECOMMENDED) AVAILABLE
All mount points fasten Minimum one (center)
into structural wood mount point fastens into
(wood studs, structural wood; no
reinforced wood structure available for
framing, etc.) other mount points
#10 x 2" S/S Screw #10 x 2" S/S Screw and
Lock Washer (into wood)
and Lock Washer (into
+ SnapToggles® with
wood)
#10 x 2" S/S Bolts
(for areas w/o structure)
500lbs load capacity 350lbs load capacity
TIPS FOR DRILLING INTO TILE
• Use carbide tipped masonry drill on ceramic, or consider a
diamond tip drill for porcelain tile.
• If possible, drill a smaller pilot hole first.
• Be careful to prevent the drill from moving when you first
start it rotating - use duct tape or a wood guide on the
surface of the tile to hold the drill from walking sideways.
• A variable speed drill on slow is best to start the hole. Do
not apply too much pressure when drilling. Do not use a
hammer drill.
WATERPROOFING
We recommend that sealant be applied around the wall
contact points for any products mounted in the shower. If not
properly sealed, there is the potential for water to seep into the
wall. This may cause the wood to rot, thus compromising the
structure the support rail is attached to.
SOLID SURFACES: CLEANING AND MAINTENANCE
The tray is made from a durable, non-porous, solid surface
material that resists the growth of bacteria. Clean with general
household cleaners. The surfaces & edges can be sanded
and buffed to repair if necessary.
Specifications subject to change without notice.
Installation Instructions:
suggestions. Supplied
the walls have not been
NO MOUNTING
STRUCTURE
AVAILABLE
None of the mount
points align with the
available structure
WE DO NOT
RECOMMEND THIS
PRODUCT BE
INSTALLED USING
ONLY SNAP
TOGGLES®.
N/A
DC155 REV B Page 1 of 4
