- Page 1 Operating Manual Hyperion 971IPS Hyperion 959IPS Long-Range DC Bar Mid-Range DC Air Curtain...
-
Page 3: Table Of Contents
Contents Introduction Unpacking and Inspection Contents Options Features of Hyperion 959IPS Installation Operation Maintenance Troubleshooting Technical Characteristics UL Approval CE Approval Health and Safety Repairs and Warranty Technical Drawing Products shown in this document may be covered by one or more patents, patents applied for and/or registered designs and/or trade marks. -
Page 5: Introduction

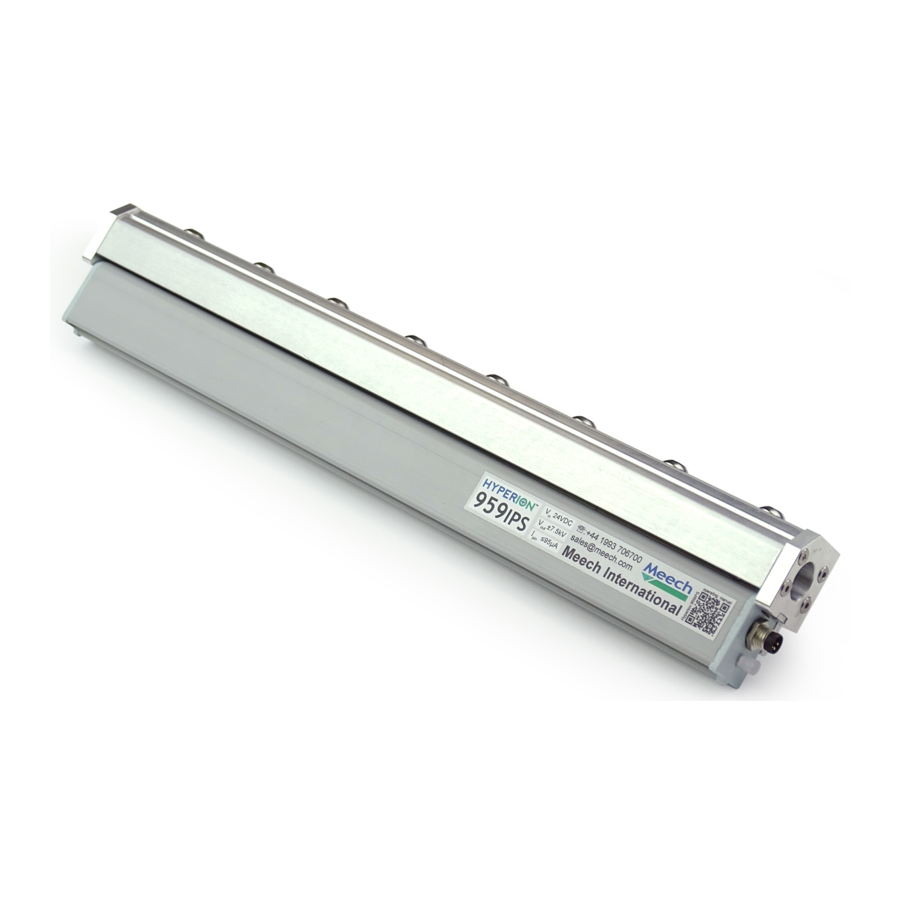

Introduction The Hyperion 959IPS is a compact, pulsed DC ionising air curtain. It provides high speed ionised airflow that can be used to clean objects or provide extra long range static control. The assembly combines a highly efficient air curtain with a Hyperion 924IPS pulsed DC ionising bar. -
Page 6: Unpacking And Inspection
Unpacking And Inspection Your Hyperion 959IPS bar was carefully packed at the factory in a container designed to protect it from accidental damage. Nevertheless, we recommend careful examination of the carton and contents for any damage. If damage is evident, do not destroy the carton or packing material and immediately notify the carrier of a possible damage claim. -
Page 7: Features Of Hyperion 959Ips
Low voltage wiring and Integrated Power Supply The 959IPS is powered by 24V DC via a 4-pin M8 Connector. Shockless Emitters The Titanium emitter pins on the 959IPS are resistively coupled to the high voltage supply. This avoids sparking and operator shocks. Sealed Construction IP66 construction allows the bar to be mounted in areas subject to occasional wash- down or spillage. - Page 8 Clean Pin Alert LED The local LED illuminates constant green to indicate that the bar is on and working correctly. Red flashing LED shows that bar is dirty and needs cleaning. Solid red illumination indicates a fault with the high voltage output. Green constant –...
- Page 9 It is important to clean this area during cleaning operations. Air Inlet The ¼” BSPT inlet is a global standard for air fittings. This allows the 959IPS to be integrated into any line with ease.
-
Page 10: Installation
Mechanical Installation The 959 IPS can be used in many different applications. Your Meech distributor will be able to give you advice on the correct distance and position for your 959IPS, depending on the application . As a rough guide, for cleaning applications, try to get the 959IPS within 100mm of the target surface. - Page 11 Electrical Installation WARNING The 959IPS requires a grounded 24V DC supply. The 0V line must be connected to ground. Failure to do so, will result in damage to the bar or the 24V supply and will void the warranty. Connection to the 959IPS is via an industrial M8 4 Pin connector. With the following...
- Page 12 Connection using Meech 24V DC power supply Meech 24VDC supplies are grounded internally. It is important that the mains connection offers a ground connection. Two-pin outlets without a ground connection must not be used. Connection using customer’s own power supply: It is the customer’s responsibility to check that either the 24V power supply they will be using is grounded.
- Page 13 PLC Wiring M8 Pin 1 24VDC 10kΩ Pull up M8 Pin 2 Output 0V, 24V M8 Pin 3 Output Signal Voltage Normally Open Output Matrix Normally Closed Output Matrix 24V Supply 24V Supply 24V Supply 24V Supply Power ON Power OFF Power ON Power OFF OK (Green LED)
-
Page 14: Operation
Failure to do so could result in stored charges giving a small electric shock. Setting the Rate The 959IPS features a variable output frequency. The frequency that should be set depends on the ionising product and the distance to the target object. We recommend leaving the unit set to the default frequency, 20Hz. -
Page 15: Maintenance
Maintenance Ionising bars become contaminated with usage. Dirt build-up on the body of the ioniser and, particularly on the pins, will cause a drop in performance. To get the best from your bar, it should be cleaned as part of regular machine maintenance. If regular cleaning is not carried out, the bar will detect the drop in performance and trigger the Clean Pin alert. -
Page 16: Troubleshooting
Let dry for a minute and turn back on. Troubleshooting Solid Green LED In normal operation the LED on the bar will illuminate Green. This indicates that the bar is operating correctly with good ionisation performance. No LED Meaning No power to bar Action Check 24V Power Supply over pins 1 and 3. -
Page 17: Technical Characteristics
STATIC ELIMINATION BAR Environmental Protection IP66 Max Ambient Temperature 60 °C UL Approval Static elimination bar Hyperion 959IPS has been investigated by UL in accordance with the following standard(s): UL 60950-1 & CAN/CSA C22.2 No. 60950-1-07. operating manual rnational STATIC ELIMINATION BAR... -
Page 18: Ce Approval
The 959IPS requires a grounded 24V DC supply. The 0V line must be connected to ground. Failure to do so, will result in damage to the bar or the 24V supply and will void the warranty. -
Page 19: Technical Drawing
Technical Drawing... - Page 20 Meech International Meech Static Eliminators USA Inc Meech Elektrostatik SA Meech CE 2 Network Point 2915 Newpark Drive Kaiserbaracke 166 Gábor László utca 2 Range Road, Witney Norton, OH 44203 B-4780 St.Vith Budapest 1041 Belgium Hungary OX29 0YN, UK Tel: +44 (0)1993 706700 Tel: +1 330 564 2000 / 1 800 232 4210 Tel.: +49 (0)6555 3733 399 Tel: +36 1 7977039...
