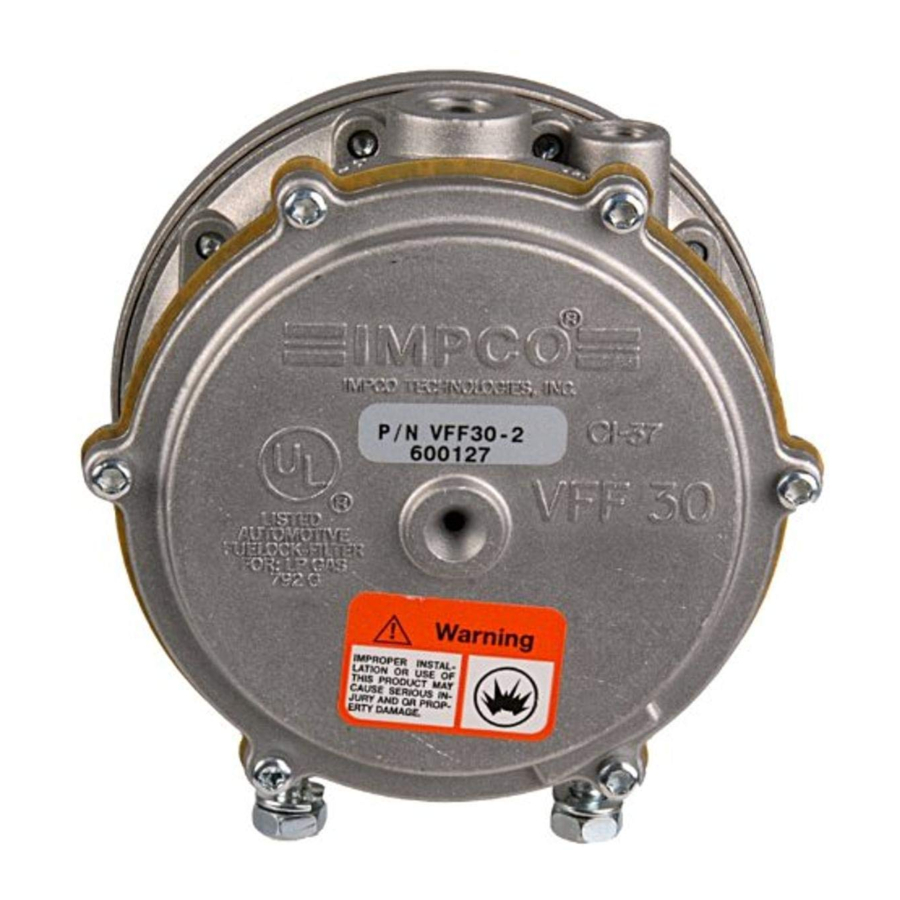

VFF30 LOCKOFF/FILTER
Important: Any maintenance, service or repair
should be performed by trained and
experienced service technicians. Proper tools
and equipment should be used to prevent
injury to the servicing technician, property or
system components. Service repairs should
always be performed in a safe environment
and the technician should always wear
protective clothing to prevent injury.
The IMPCO PPI-4-116 repair kit instructions
will provide the technician information to
successfully repair the VFF30 Lockoff. Always
inspect the major casting pieces for damage,
corrosion or cracks before attempting a service
repair. Be sure the repair kit part number you
are using is correct for the Lockoff being
serviced. Diaphragms are color coded and
have different performance characteristics:
BLACK: Hydrin diaphragm material is the
standard material and is well suited for the
most common applications.
YELLOW: Silicone diaphragm material is the
optional upgrade material that provides
excellent flexibility in cold weather climates
and is more resistant to chemical
contamination.
BLUE: Fluorosilicone diaphragm material
provides excellent high and low temperature
durability with increased chemical resistance.
This material is recommended for turbo
applications.
Part #
RK-VFF30
RK-VFF30-2
RK-VFF30-3
RK-VFF30-958 Repair Kit, VFF30 (Fluorosilicone Diaphragm)
AF1-10
AF1-10-001
July, 2015
REPAIR KIT INSTRUCTIONS
REPAIR KIT PART NUMBERS
Repair Kit, VFF30 (Standard Hydrin Diaphragm)
Repair Kit, VFF30 (Silicone Diaphragm)
Repair Kit, VFF30 ( Fluorosilicone Diaphragm)
Repair Kit, VFF30 (Gasket and Filter Only)
Repair Kit, VFF30 (Gasket and Filter Only)
IMPCO Technologies Inc.
3030 South Susan St.
Santa Ana, CA 92704
www.impcotechnologies.com
Do not use Teflon tape to seal any fuel fittings.
Failure to follow this warning may cause
internal leaks resulting in serious injury and/or
property damage.
Description
3030 S Susan Street, Santa Ana, CA 92704
Ph: +1 714 656 1200 Fax: +1 714 656 1400
PPI-4-116 REV.C
Page 1 of 15
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Impco RK-VFF30
- Page 1 Repair Kit, VFF30 (Standard Hydrin Diaphragm) RK-VFF30-2 Repair Kit, VFF30 (Silicone Diaphragm) RK-VFF30-3 Repair Kit, VFF30 ( Fluorosilicone Diaphragm) RK-VFF30-958 Repair Kit, VFF30 (Fluorosilicone Diaphragm) AF1-10 Repair Kit, VFF30 (Gasket and Filter Only) AF1-10-001 Repair Kit, VFF30 (Gasket and Filter Only) July, 2015 IMPCO Technologies Inc.
- Page 2 (self-tapping or machined) as the two types are not interchangeable. **Included in all repair kits and the only two parts included in AF1-10. PPI-4-116 REV. C IMPCO Technologies Inc. July, 2015 Page 2 of 15 3030 South Susan St. Santa Ana, CA 92704...
- Page 3 1. Remove 10 Screws (17) from "Fuel In" cover. 2. Remove Cover (16) and Gasket (15). 3. Remove Filter (13) and screen (12). July, 2015 IMPCO Technologies Inc. PPI-4-116 REV.C 3030 South Susan St. Page 3 of 15 Santa Ana, CA 92704...
- Page 4 6. Using a small flat head screwdriver, remove Valve Seat (19). 7. Gently lift up and remove the Valve Operating Pin (10). PPI-4-116 REV. C IMPCO Technologies Inc. July, 2015 Page 4 of 15 3030 South Susan St. Santa Ana, CA 92704...
- Page 5 10. Insert paper-clip hook in center hole of Seal Retaining Washer (14) and remove. 11. Using the same hook, remove the Pin Seal (9) through valve jet. July, 2015 IMPCO Technologies Inc. PPI-4-116 REV.C 3030 South Susan St. Page 5 of 15 Santa Ana, CA 92704...
- Page 6 Do not use harsh solvents such as brake or carburetor cleaner on any of the non-metallic components as they will damage the material. PPI-4-116 REV. C IMPCO Technologies Inc. July, 2015 Page 6 of 15 3030 South Susan St. Santa Ana, CA 92704...
- Page 7 3030 S Susan Street, Santa Ana, CA 92704 Ph: +1 714 656 1200 Fax: +1 714 656 1400 Reassembly 14. RK-VFF30 Kit Includes: GI-89 Gasket (15) F1-10 Filter (13) S7-3 Screen (12) BD1-26* Diaphragm Assy (3) S1-59 Screw, 8-32 x 5/8" (1) S1-100 Screw, 12-24 x 5/8"...
- Page 8 19. Use needle nose pliers to hold the Seal Retainer Washer (14). PPI-4-116 REV. C IMPCO Technologies Inc. July, 2015 Page 8 of 15 3030 South Susan St. Santa Ana, CA 92704...
- Page 9 Pin into place through the Washer, Lip Pin Seal and Body (7) housing. 22. Pin (10) properly placed in valve jet. July, 2015 IMPCO Technologies Inc. PPI-4-116 REV.C 3030 South Susan St. Page 9 of 15 Santa Ana, CA 92704 www.impcotechnologies.com...
- Page 10 (4). Align the tip of Spring (over valve) and center between the 3 guide fins as shown in illustration. Tighten Screw 28-32 in-lbs. (3.2-3.6 Nm) PPI-4-116 REV. C IMPCO Technologies Inc. July, 2015 Page 10 of 15 3030 South Susan St.
- Page 11 28. Insert Screen (12) and Filter (13) into recess. 29. Press Filter (13) so that’s properly seated in recess. July, 2015 IMPCO Technologies Inc. PPI-4-116 REV.C 3030 South Susan St. Page 11 of 15 Santa Ana, CA 92704...
- Page 12 Screws (17) through the gasket and into the Body (9). 32. Insert remaining 8 Screws (17) in their openings. PPI-4-116 REV. C IMPCO Technologies Inc. July, 2015 Page 12 of 15 3030 South Susan St. Santa Ana, CA 92704...
- Page 13 Body (there is only one position in which the holes will line up). July, 2015 IMPCO Technologies Inc. PPI-4-116 REV.C 3030 South Susan St. Page 13 of 15 Santa Ana, CA 92704 www.impcotechnologies.com...
- Page 14 If leaks are found, the Lockoff must be replaced. If no leaks are found, the Lockoff can be reinstalled and returned to service. PPI-4-116 REV. C IMPCO Technologies Inc. July, 2015 Page 14 of 15 3030 South Susan St.
- Page 15 COMBUSTION ENGINES AND GAS TURBINE ENGINES, TO THE EXTENT THESE STANDARDS ARE NOT IN VIOLATION WITH FEDERAL, STATE OR LOCAL LAW. FAILURE TO ABIDE BY THE ABOVE WILL VOID ANY IMPCO WARRANTY ON THE PRODUCTS AND MAY CAUSE SERIOUS INJURY OR PROPERTY DAMAGE.
