Summary of Contents for heatcon! WG

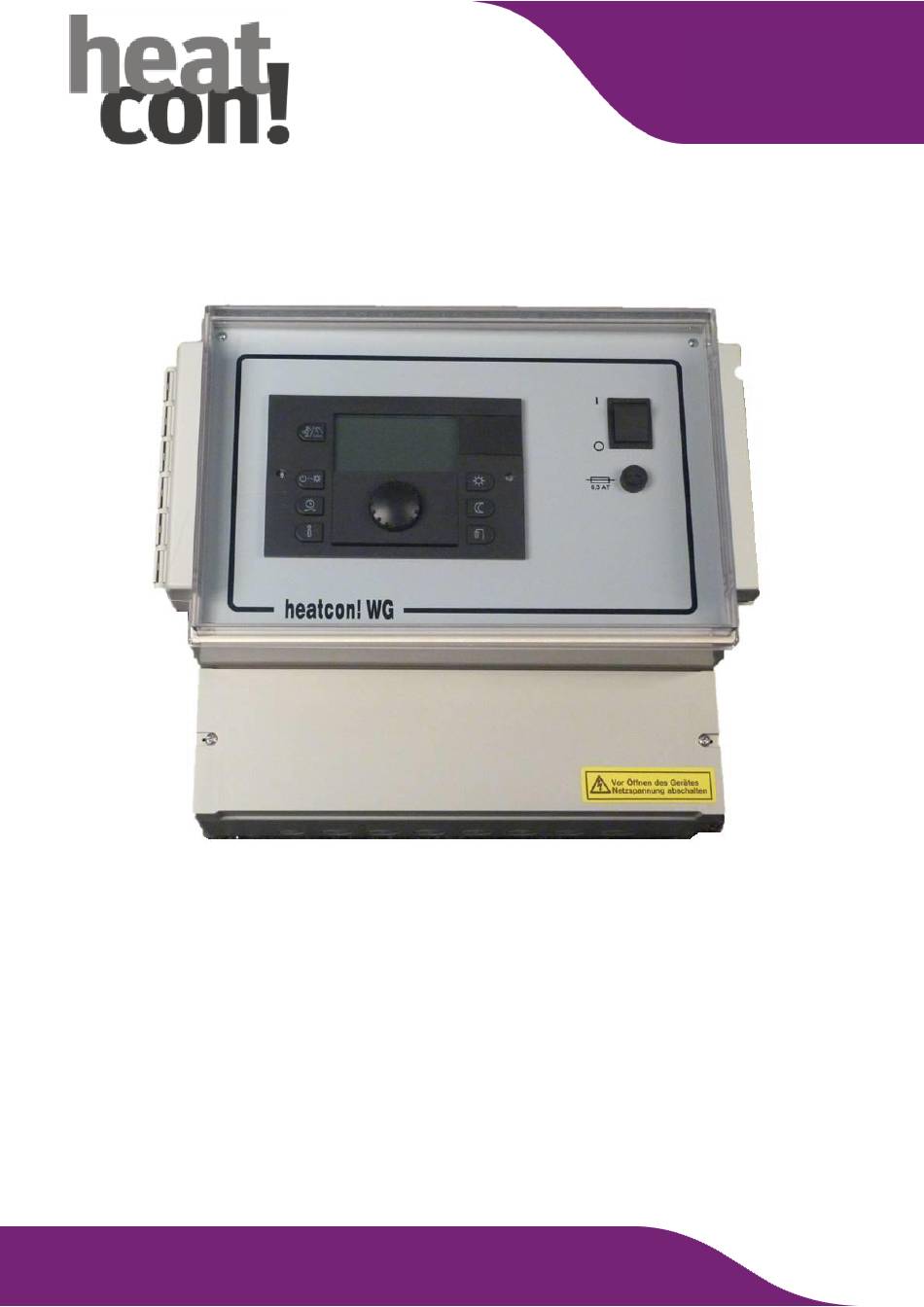

- Page 1 Installation guide heatcon! System WG 0450000600-1915...
- Page 2 heatcon! System Installation guide Edition: 04.2019 Art:0450000600-1915 We reserve the right to make technical and content changes to this document at all times without prior notice. EbV assumes no responsibility for any errors or omissions in this document. All rights to this document and the contained the contained themes and figures are reserved. Reproduction, disclosure to third parties or use of the content, either in whole or in part, is forbidden without the prior written consent of EbV.
- Page 3 ............................4 ERSONNEL QUALIFICATIONS WG ............................. 5 HE HOUSING HEATCON HEATCON! WG ..............................5 INSTALLATION ..............................5 SUPPLY LINE AT THE HEATCON! WG........................6 CONNECTION TERMINALS ........................... 6 INSTALLATION (PARAMETERIZATION) HEATCON! EC ..................6 MMI ............................6 NSTALLATION VIA ........................7...
- Page 4 Safety General Information Any person charged with working on the device or system, must have read and understood this manual, especially the chapter on “Safety”. Instruction may be necessary, dependent on the professional qualifications of the persons in question. The relevant accident prevention regulations and other generally accepted safety regulations must be complied with. Structure of the warning instructions Explanation of the warning instructions in this manual: DANGER...
- Page 5 The housing heatcon WG The wall mounting housing heatcon! WG is intended for indoor installation and must not be installed outdoors. Bevor installation and during use the housing must be checked for damage and thightness and replaced by a specialist if necessary.
- Page 6 Ensure that no pipes or cables are laid in the wall beneath the mounting location that could be damaged by the installation. Supply line at the heatcon! WG The electrical installation must be carried out with fixed wiring in accordance with DIN VDE 0100-520.
- Page 7 Installation via Computer/Laptop 7.2.1 Preparation For the installation of the heatcon! EC via PC/laptop it is necessary to make the internal connections LAN and USB accessible. Open the wall-mounted housing by loosening the screws and carefully lifting off the cover. Note Make sure that the existing cables remain in place.
- Page 8 7.2.2 Installation Connect the heatcon! EC with the network. Plug the LAN cable into a free port of the Internet router or a switch. For installation, the USB port of the heatcon! EC is connected to the USB LAN Adapter from the heatapp! installation kit.
