BURK Technology Plus-X AC-8 User Manual

Hide thumbs Also See for Plus-X AC-8:
Table of Contents

Advertisement

Quick Links

Download this manual
Plus-X AC-8
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Plus-X AC-8 and is the answer not in the manual?

Questions and answers

Related Manuals for BURK Technology Plus-X AC-8

Summary of Contents for BURK Technology Plus-X AC-8

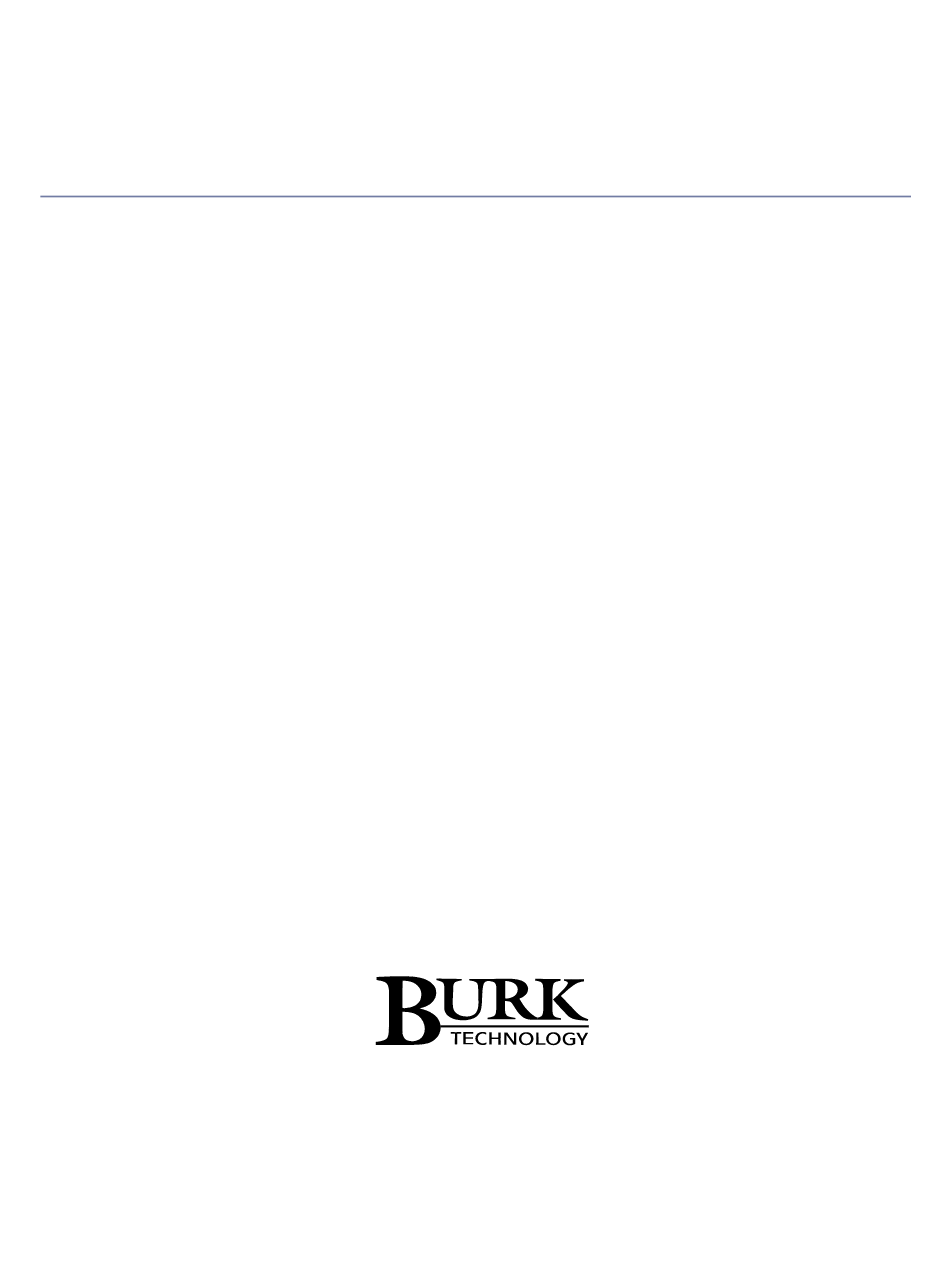

  • Page 1 Plus-X AC-8 User Guide...

  • Page 2: Table Of Contents

    Initial Connection Using DHCP ....................1 Initial Connection Without DHCP ....................2 Set a Static IP Address ......................3 Operation ........................... 6 Getting Help ..........................8 Warranty ............................ 8 Appendix A: Specifications ......................9 Copyright © 2012 Burk Technology, Inc. Rev. D...

  • Page 3: Introduction

    Configuration of the Plus-X AC-8 involves three steps: setting the network parameters, defining outlet behavior, and assigning users and passwords. If you are using the Plus-X AC-8 with an ARC Plus, you will also need to add the Plus-X AC-8 device to the ARC Plus using AutoLoad Plus software.

  • Page 4: Initial Connection Without Dhcp

    Local Area Connection. Navigate to the Internet Protocol Version 4 (TCP/IPv4) Properties dialog box as displayed below. To configure the Plus-X AC-8, start by logging in to the unit by entering the IP address in your web browser and entering the username and password. The default IP address is 192.168.0.100.

  • Page 5: Set A Static Ip Address

    Click the Network link toward the top of the page to establish network settings. Enter the IP address, subnet, gateway and HTTP port for the Plus-X AC-8 to use. It is also a good idea to change the hostname from the default value so conflicts will not occur if multiple Plus-X AC-8 units are installed on the network.
  • Page 6 To configure the unit name and individual outlet behavior, click the Config link toward the top of the page. In the Name field below the navigation links, enter an identifier for the Plus-X AC-8 unit (i.e. IT Gear). Press Update Unit Name to save changes. Each outlet can also be assigned a name to identify the equipment connected to it.
  • Page 7 3. Click New… 4. You will be asked to select the device type, which in this case is “Plus-X AC-8” You may optionally change the Description for the device. The description appears in AutoLoad Plus to identify each Plus-X channel.

  • Page 8: Operation

    7. Click OK. Restoring Default Configuration If at any time you wish to restore the default configuration of the Plus-X AC-8, including the IP address, use a pen or other small object to press the rear panel Master Init button three times in 10 seconds.
  • Page 9 Typically “raise” relays would connect to the ON pins on the Plus-X AC-8 and “lower” relays would connect to the OFF pins on the Plus-X AC-8. A common ground pin is provided. Wiring is to the included screw-down Phoenix connector.

  • Page 10: Getting Help

    Friday, 9AM to 5PM Eastern time. Warranty Burk Technology, Inc. warrants the Plus-X 600 to be free of defects in materials and workmanship for a period of 24 months from the date of purchase. Equipment will be repaired or replaced at the option of Burk Technology and returned freight prepaid to the customer.

  • Page 11: Appendix A: Specifications

    100 to 132VAC, 50-60Hz, 8’ attached 14/13 grounded power cord; 15A circuit breaker with reset button Outlet Specifications: Eight (8) 15A straight-blade AC outlets; latching, plus-on or plus-off configuration for each outlet Control Inputs: >0 to 5VDC or switch closure; latching relays not required Plus-X AC-8 User Guide Rev D...
