Specifications

FORWARD

Thank you for choosing our DMX to Digital Decoder / Driver. Before installation and use, we strongly recom-

mend you to read through this manual carefully to avoid unnecessary damage to yourself or the product..

SAFETY WARNINGS

To ensure safety, please follow the instructions below.

1. Please don't install this decoder in lightning, intense magnetic or high-voltage elds.

2. To reduce the risk of component damage and re caused by short circuit, make sure connection is properly

con gured before powering on.

3. Always be sure to mount this unit in an area that will allow proper ventilation to ensure temperature is

within acceptable operating range.

4. Check if the voltage and power adapter suit the decoder & if anode or cathode de nition is the same as the

controller's.

5. Don't connect cables with power on, make sure all wires are properly connected before powering on.

PRODUCT BRIEF

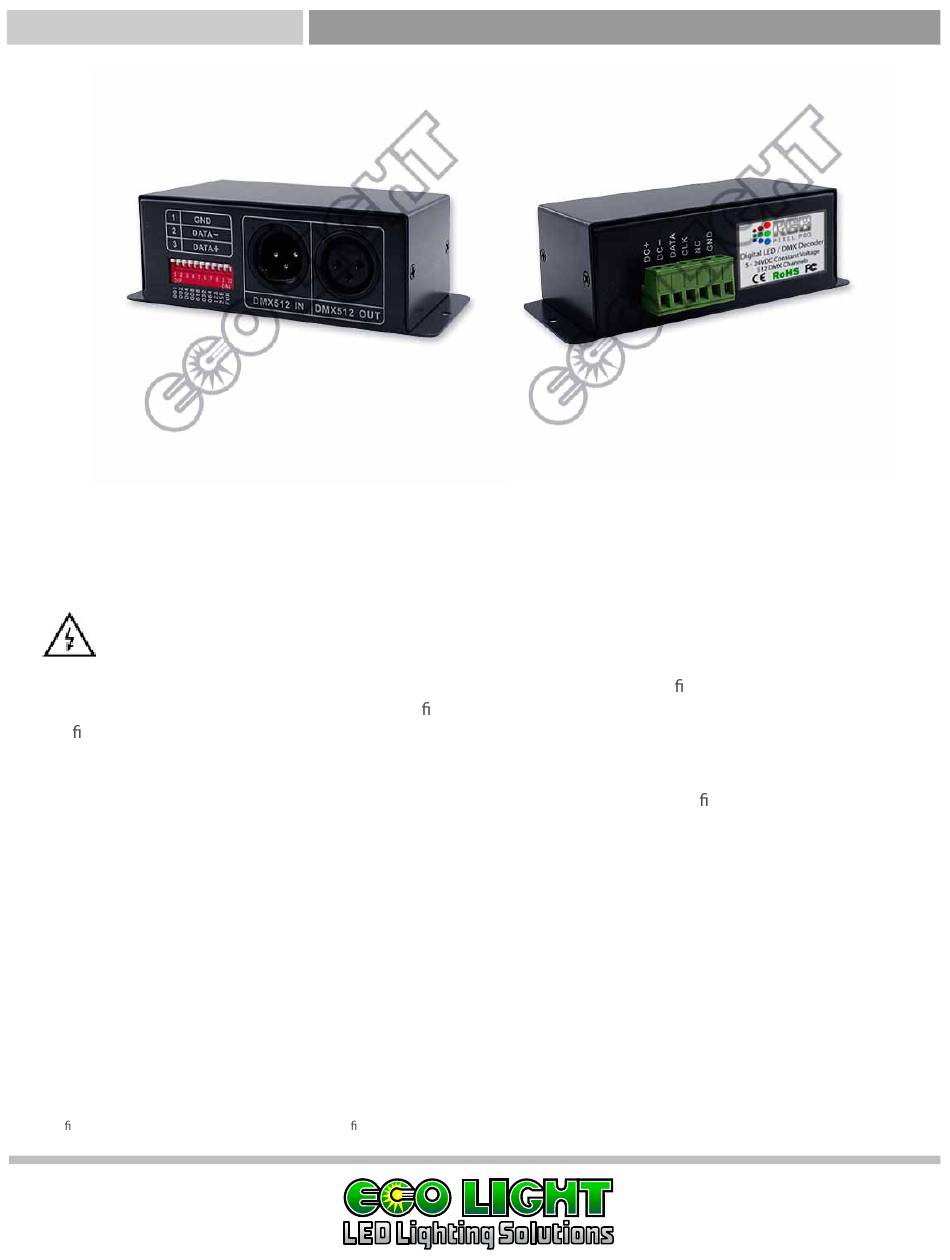

This DMX to Digital Decoder / Driver is meant to run LED lights with digital IC chips， with the help of the

DMX decoder's data conversion. It is compatible with LED products using LPD6803 control chips.

These speci cation are subject to change without notice. This speci cation information is from the manufacturer of this product. Eco Light LED is not the manufacturer of this product.

EcoLightLED.com

info@EcoLightLED.com

DMX to Digital Decoder / Driver

2010 Eco Light LED

775-636-6060

866-348-3492

Table of Contents

Need help?

Do you have a question about the DMX512 and is the answer not in the manual?

Questions and answers

Summary of Contents for ecolight DMX512

Page 1 DMX to Digital Decoder / Driver SPECIFICATIONS FORWARD Thank you for choosing our DMX to Digital Decoder / Driver. Before installation and use, we strongly recom- mend you to read through this manual carefully to avoid unnecessary damage to yourself or the product.. SAFETY WARNINGS To ensure safety, please follow the instructions below.
Page 2 Output signal LPD6803 speci c data protocol DMX channel 512 DMX Addresses. Output grey step 256 Grayscale. DMX512 connector ： Standard XLR3 connector Product dimension L 4.9” x W 2” x H 1.6” (125 x 52 x 40mm) Weight 0.75 lb.
Page 3 When a DIP switch is set in the downward position it is in the ON position or “1”. When a DIP switch is set in the upward position it is in the OFF position or “0”. DMX512 signal is accepted only when the DIP switch FUN(10) = OFF (0) EXAMPLE 1: TO SET ADDRESS TO 37 Set DIP Switches 1, 3 and 6 to the ON position and the rest to OFF(Figure 1), The total sum of DIP switches in the ON position is 37 (1+4+32=37), so the Starting DMX512 address is 37.
Page 4 EXAMPLE 2: Set the starting DMX512 address code to 385; Set DIP switches 1, 8 and 9 to the ON position. The rest of the switches to OFF (Figure 2). The total sum from switches 1, 8, 9, is 1+128+256 so the starting DMX512 code is 385.
Page 5 DMX to Digital Decoder / Driver SPECIFICATIONS Signal Direction These speci cation are subject to change without notice. This speci cation information is from the manufacturer of this product. Eco Light LED is not the manufacturer of this product. © Copyright 2010 Eco Light LED 775-636-6060...
