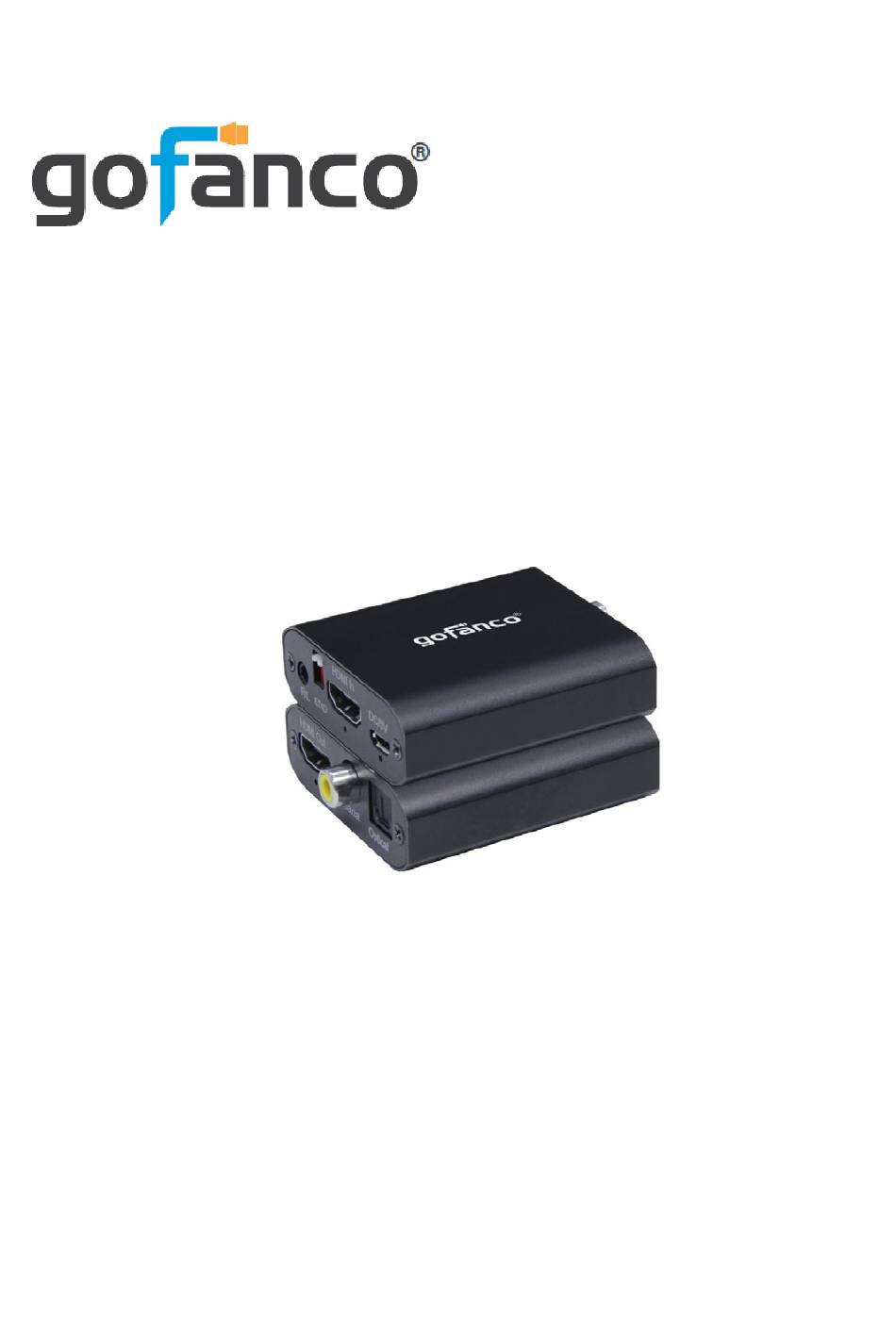

- Page 1 4K HDMI 1.4 Audio Extraction User's Guide P/N: HDAudExt14 G4-0103A...
- Page 2 Thank you for purchasing from gofanco. Our products aim to meet all your connectivity needs wherever you go. For optimum performance and safety, please read the instructions carefully and keep this User’s Guide for future reference. If you need more information about our products, please visit www.gofanco.com.
- Page 3 • Shut off power and make sure environment is safe before installation • Do not plug the HDMI cables in/out when the device is in use to avoid cable damage. Make sure they are plugged into the correct ports • Use the included power adapter only.
- Page 4 Introduction The 4K HDMI 1.4 Audio Extraction is designed to extract audio from a 4K HDMI signal to stereo balanced L/R audio, analog RCA, and coaxial digital audio output ports. Features • Supports up to 4K (4096x2160) @30Hz • Features simultaneous audio extraction to digital Toslink and Coaxial, and analog stereo •...
- Page 5 Installation Requirements HDMI source device (computer, Blu-Ray/ DVD player, XBOX, PS3, etc) HDMI display device (SDTV/Monitor, HDTV/Monitor, projector, etc.) Speakers, audio amplifier 5V/1A output USB Power adapter Product Layout Stereo output jack: Connects to headphones or speakers EDID: Dip switches to control EDID settings HDMI In: Connects to your HDMI source device Micro USB power jack: Connects to the...
- Page 6 Hardware Installation Power off all devices including your HDMI source and HDMI display. Connect your HDMI source device to the Audio Extractor's HDMI In connector with an HDMI cable (HDMI cable not included). Connect your HDMI display to the HDMI Out connector with a HDMI cable (HDMI cable not included).
- Page 7 DIP Switch Settings Switch1 Switch 2 Description Copies the EDID from the display connected to the HDMI Out connector 1080p 3D 2ch 4K 2ch 1080p 2D 5.1ch...
- Page 8 Specifications Resolution Up to 4096x2160@30Hz Video Format 8/10/12bit deep color DTS-HD / Dolby-trueHD / DTS Audio Format / Dolby-AC3 / DSD Bandwidth 300MHz (max) Baud Rate 3Gbps (max) Input: 8 meters HDMI Cable Output: 8 meters Input: 100-240VAC/50-60Hz Power Adapter Output: 5VDC/1A Operating Temperature -15 to 45 degrees C...
- Page 9 Blank Page...
- Page 10 Blank Page...
- Page 11 Disclaimer The product name and brand name may be registered trademarks of related manufacturers. TM and ® may be omitted on the user’s guide. The pictures on the user’s guide are just for reference, and there may be some slight differences with the actual products.
- Page 12 Thank you for choosing gofanco www.gofanco.com...
