Tinytag ACSRF-4040 Mounting Instructions

Tinytag plus radio ethernet receiver

Download this manual

ACSRF-4040

Tinytag Plus Radio Ethernet Receiver

connect

• LAN connected Radio receiver

• Robust data network

• Easy to install

• 200m typical range (line of sight)

• Power over Ethernet (PoE) with battery back-up

• Low battery monitor

• User-replaceable batteries

• Waterproof case

The ACSRF-4040 receiver is an Ethernet device that is used to collect data

from a network of Tinytag Radio data loggers.

The receiver plugs into an Ethernet port on a LAN allowing data to be passed

from the radio network to the computer running the Connect Gateway software

that manages the system (ideally, this software is installed on a server). Data

can then be viewed across the network or the Internet using the Tinytag

Explorer Connect software.

The Ethernet receiver allows a network of loggers to be used without the need

for a computer where the logging is taking place.

The typical radio range of the receiver on a clear line of sight is 200m.

The receiver is a PoE (Power over Ethernet) device that also has back-up

batteries. If power to the computer running the system goes down, or there is

a problem with the LAN, the receiver will maintain the mesh network until the

fault is corrected, allowing faster access to data when the system is restored.

www.tinytag.info

sales@tinytag.info

Issue 2 (16th June 2017) E&OE

Issue 2

Need help?

Do you have a question about the ACSRF-4040 and is the answer not in the manual?

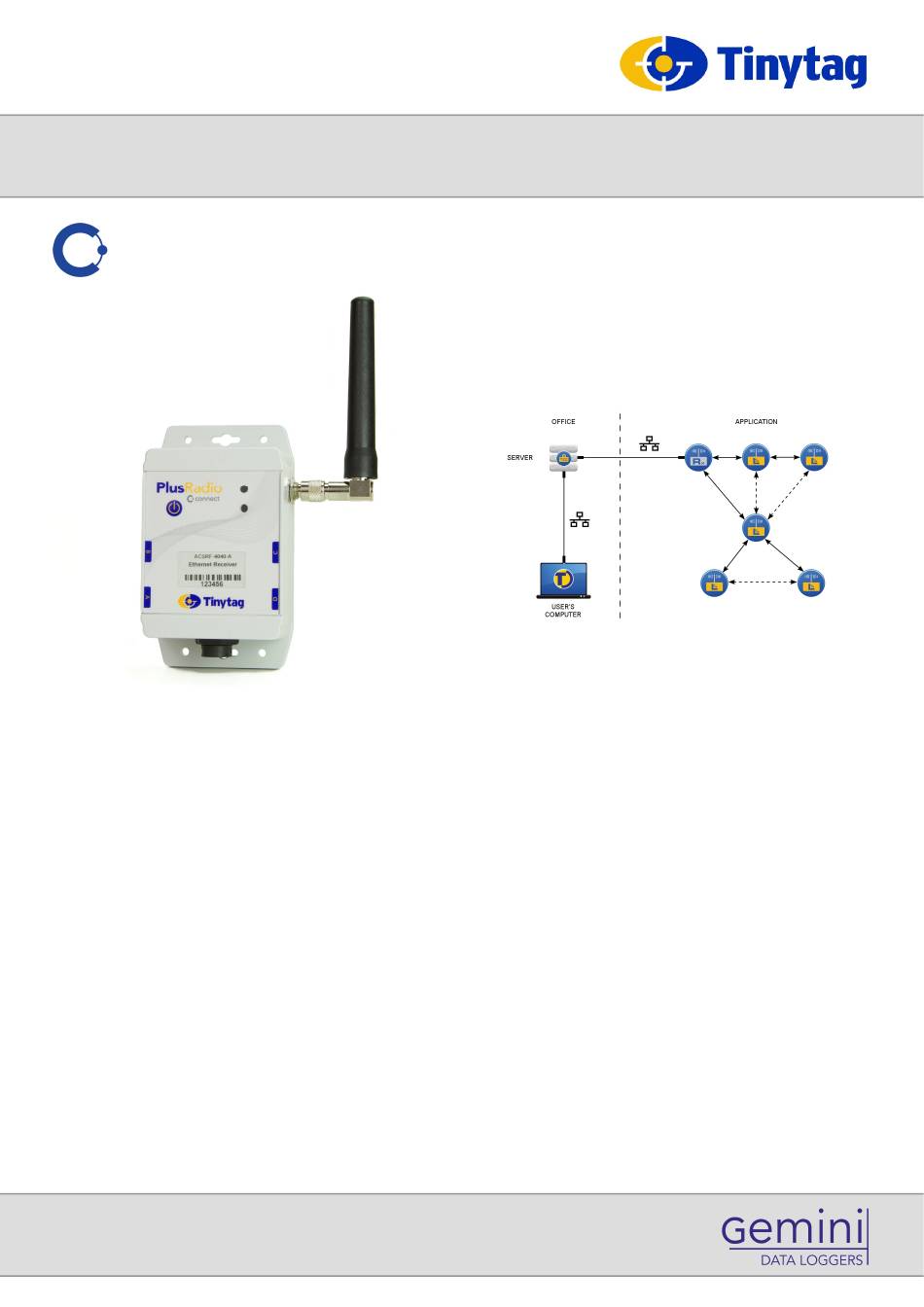

Page 1 Tinytag Plus Radio Ethernet Receiver Tinytag Plus Radio Ethernet Receiver Tinytag Plus Radio Ethernet Receiver The ACSRF-4040 receiver is an Ethernet device that is used to collect data connect from a network of Tinytag Radio data loggers. The receiver plugs into an Ethernet port on a LAN allowing data to be passed from the radio network to the computer running the Connect Gateway software that manages the system (ideally, this software is installed on a server).
Page 2 ACSRF-4040 Tinytag Plus Radio Ethernet Receiver Tinytag Plus Radio Ethernet Receiver Tinytag Plus Radio Ethernet Receiver Tinytag Plus Radio Ethernet Receiver Radio Specification Physical Specification Radio Frequency 869.88MHz (-A part numbers) Mounting Instructions 917.8MHz (-B part numbers) Radio Power <5mW (-A part numbers) <3mW (-B part numbers)
Page 3 When the logger’s back-up batteries start to run flat, the LED on the front of ACSRF-4030 Plus Radio USB Receiver the logger will flash red. If being used as part of a Tinytag Connect system, a low battery warning will be displayed in the Tinytag Explorer Connect software.
