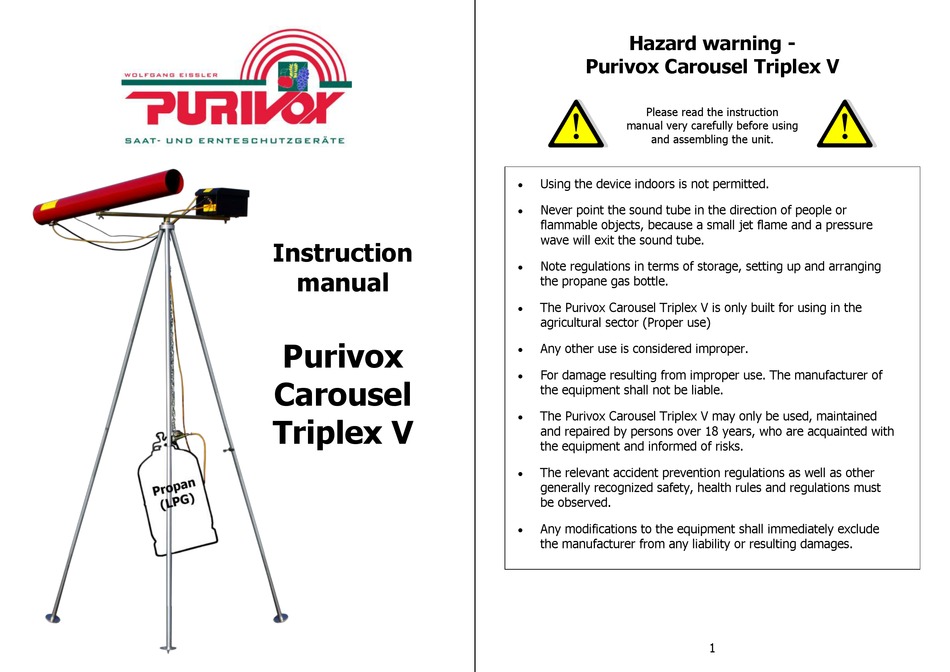

Instruction
manual
Purivox
Carousel
Triplex V
Hazard warning -
Purivox Carousel Triplex V
Please read the instruction
manual very carefully before using
and assembling the unit.
Using the device indoors is not permitted.
Never point the sound tube in the direction of people or
flammable objects, because a small jet flame and a pressure
wave will exit the sound tube.
Note regulations in terms of storage, setting up and arranging
the propane gas bottle.
The Purivox Carousel Triplex V is only built for using in the
agricultural sector (Proper use)
Any other use is considered improper.
For damage resulting from improper use. The manufacturer of
the equipment shall not be liable.
The Purivox Carousel Triplex V may only be used, maintained
and repaired by persons over 18 years, who are acquainted with
the equipment and informed of risks.
The relevant accident prevention regulations as well as other
generally recognized safety, health rules and regulations must
be observed.
Any modifications to the equipment shall immediately exclude
the manufacturer from any liability or resulting damages.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Purivox Carousel Triplex V
Summary of Contents for Purivox Carousel Triplex V
- Page 1 Note regulations in terms of storage, setting up and arranging manual the propane gas bottle. The Purivox Carousel Triplex V is only built for using in the agricultural sector (Proper use) Purivox Any other use is considered improper.
-
Page 2: Table Of Contents
Number of shots 11. Electronic unit (108510) 10 Assembly instruction 22 Spare parts - Electronic unit 23 Spare parts - Purivox Carousel Triplex V 24 Troubleshooting 25 Optional equipment - Mirror pyramid Notice: The gas regulator which is shown on all the pictures in the manual is a German gas regulator type. -
Page 3: Electronic Unit
Electronic unit Power supply / Batteries The controller is in a black weatherproof plastic case. Before working on the batteries or inserting new batteries, To get to the operating elements and set up the unit, lift up the lid make sure that the unit is turned OFF! The ON / OFF switch is on the front of the electronic unit and is labelled with I for ON and 0 for OFF. -
Page 4: Shot Frequency
Setting the timer Setting the shot frequency If the batteries are inserted and are in contact with the battery contact You can choose from 4 different time frames, how long the pause time should be. board the timer will directly start working The unit will then shoot randomly in that time to avoid habituation effect. -
Page 5: Volume
Setting the volume Setting the number of shots Changing the number of shots only when the unit is turned off! With a switch on the board the volume of the unit can be set in two different volumes Wait 15 seconds before turning the unit on again so it can re-set properly. For the full volume the switch has to be on position B, for a reduced volume the switch has to be on A Switch position A = Reduced sound level... -
Page 6: Assembly Instruction

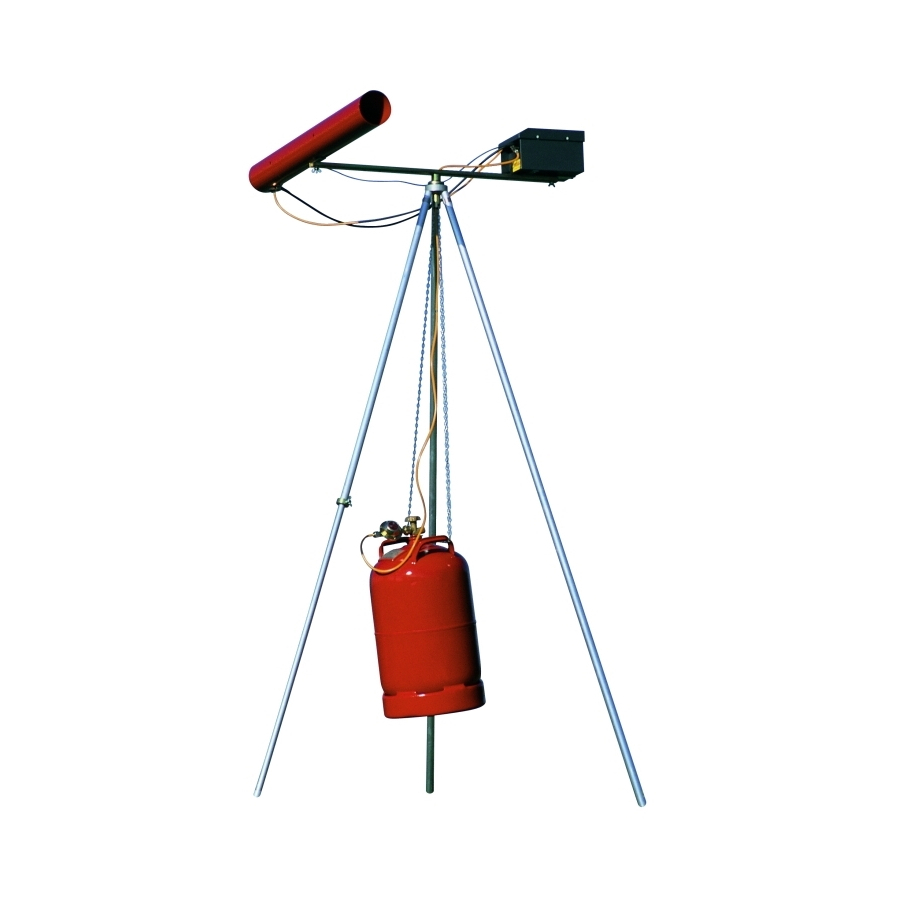

Assembly instruction Purivox Carousel Triplex V A standard propane gas bottle is required for normal operation. (Not included in delivery) Notice: Propane gas bottle can look similar to the one which is shown in the manual. Once the electronic unit is set. - Page 7 Remove the propane nozzle which Remove the wing nut, is plugged into the gas hose toothed washer and the (Gh-2) which runs away from washer from the thread on the electronic unit. the sound tube (106040). The propane nozzle will screwed into the nozzle-bracket from the sound tube.
- Page 8 Unscrew the plastic screw from the thread insert rubber. Take now the plastic screw; slide it onto the ground wire and through the spark plug. The bearing block (102072) will be screwed on the cross bar and tighten carefully by using a screwdriver. The spark plug is inserted through the opening of the rubber grommet.
- Page 9 Insert the big foot plates (102273) into the long poles (102025). Make sure to use the long poles. This will prevent that rainwater can run into the poles. Take the adjustable pole (102026 & 102028) and put the small foot plate (102275) on.
- Page 10 After all poles are mounted on the bearing block, the Purivox pointing out of the bearing block. Move the chain Carousel Triplex V can be turned over and put on the foot plates. through the handle of the bottle and attach the other end of the chain...
- Page 11 Open the valve of the gas bottle and switch on the unit. The unit will now start working. After the unit is switched on move Screw the POL gas regulator (101660) on the propane gas bottle immediately away from the unit! and connect the gas hose from the regulator with the gas hose (Gh-2) of the electronic unit.
-
Page 12: Spare Parts - Electronic Unit
Spare parts - Electronic unit Spare parts - Purivox Carousel Triplex V 108511 Electronic unit for Purivox Carousel / Razzo Triplex V 108511 Electronic unit V for Purivox Carousel Triplex V 108328 Battery contact board with cable 102090 Cross bar... -
Page 13: Troubleshooting
The unit has a self reset security safety element. Please watch out for potential short circuits between the connecters. Purivox Carousel Triplex V bangs at times, when it shouldn’t bang. Timer is set wrong. The timer has no internal battery. So after removing the batteries or when the batteries are totally flat, the time must be reset when new batteries are fitted. - Page 14 Mirror pyramid PURIVOX Saat- und Ernteschutzgeräte GmbH Hauptstrasse 11 D - 67308 Ottersheim Ph: 0049-6355/9543-0 Fax: 0049-6355/954329 Internet: www.purivox.com Email: info@purivox.com...
