Summary of Contents for Wickes PPL900B.1
- Page 1 PLANER 900W PPL900B.1 223739...
-
Page 2: Table Of Contents
CONTENTS GENERAL POWER TOOL SAFETY WARNINGS COMPONENT LIST ACCESSORIES SYMBOLS TECHNICAL DATA NOISE INFORMATION OPERATING INSTRUCTIONS MAINTENANCE ENVIRONMENTAL PROTECTION PLUG REPLACEMENT (ONLY FOR REWIRABLE PLUG OF UK & IRELAND) DECLARATION OF CONFORMITY... -
Page 3: General Power Tool Safety Warnings
ORIGINAL INSTRUCTION GENERAL POWER TOOL SAFETY WARNINGS WARNING! Read all safety warnings, 3. PERSONAL SAFETY a) Stay alert, watch what you are doing and use instructions, illustrations and specifications provided with this power tool. Failure to follow all common sense when operating a power tool. Do instructions listed below may result in electric shock, fire and/ not use a power tool while you are tired or under the influence of drugs, alcohol or medication. - Page 4 GENERAL POWER TOOL SAFETY WARNINGS the power tool before making any adjustments, g) Use the power tool, accessories and tool bits etc. changing accessories, or storing power tools. Such in accordance with these instructions, taking into preventive safety measures reduce the risk of starting the account the working conditions and the work to be power tool accidentally.
-
Page 5: Component List

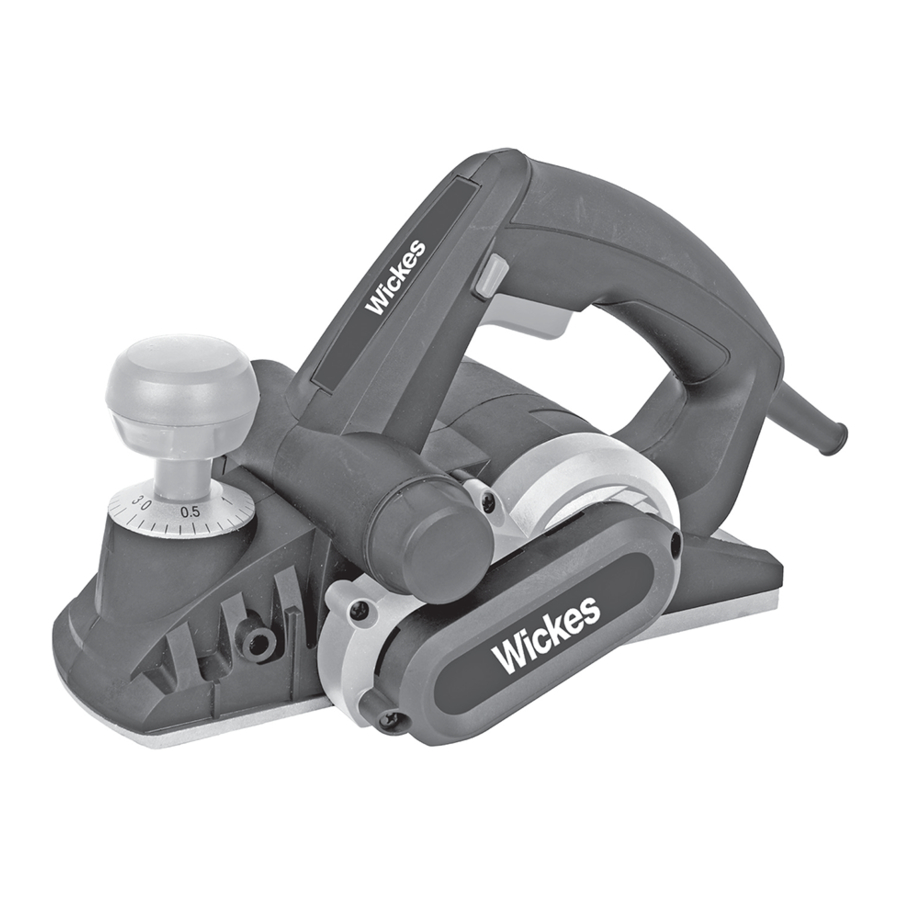

COMPONENT LIST Hand grip areas Parallel guide locking screw Lock-off button Planing depth scale On/off switch Cutting depth adjustment knob Dust extraction cover Rebate guide Belt cover Spanner Parallel guide Dust bag Base plate... -
Page 6: Accessories
ACCESSORIES Parallel guide Rebate guide Dust bag Spanner 82mm blades(on machine) We recommend that you purchase your accessories from the same store that sold you the tool. Use good quality accessories marked with a well-known brand name. Choose the type according to the work you intend to undertake. Refer to the accessory packaging for further details. -
Page 7: Noise Information
NOISE INFORMATION A weighted sound pressure : 80dB(A) A weighted sound power : 91dB(A) & K 3.0dB(A) Wear ear protection. VIBRATION INFORMATION Vibration total values (triax vector sum) determined according to EN 62841: Vibration emission value a = 5.20 m/s² Uncertainty K = 1.5 m/s²... -
Page 8: Operating Instructions
OPERATING INSTRUCTIONS NOTE: Before using the tool, read the instruction book carefully. Intended Use The machine is intended for planing of firmly supported wooden materials, such as beams and boards. It is also suitable for beveling edges and rebating. Fig. A 1. - Page 9 4. EDGE CHAMFERING (See Fig. C) CAUTION: Danger of kickback! Always grip the machine with both hands. Maintaining good control will help avoid the risk of serious personal injury. The workpiece must always be properly supported and clamped so that both hands will be free to control the planer.
- Page 10 7. REBATING (See Fig. F) The width of rebating cut (C) is adjustable by moving the parallel guide (6). The depth of rebating cut (D) is determined by moving the rebate (11), and the number of passes made along the workpiece. Make sure that the planer is guided with a lateral supporting pressure.
- Page 11 Repeat the above procedure to change the other blade. After the blades are replaced, use a ruler to check if the blades are parallelled with the rear base plate. If not, you can adjust the blades with the hexagonal wrench provided.
- Page 12 10. CORRECT PLANER BLADE SETTING (See Fig. I) Your planing surface will end up rough and uneven, unless the blade is set properly and securely. The blade must be mounted so that the cutting edge is absolutely level, that is, parallel to the surface of the rear base.
-
Page 13: Maintenance
MAINTENANCE Remove the plug from the socket before carrying out any adjustment, servicing or maintenance. There are no user serviceable parts in your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free of dust. -
Page 14: Declaration Of Conformity
DECLARATION OF CONFORMITY Wickes Building Supplies Limited Declare that this product: PLANER Description and SKU code: 223739 Complies with the following Directives and Regulations: 2006/42/EC, Machinery Directive 2014/30/EU, Electromagnetic Compatibility Directive 2011/65/EU & (EU)2015/863 (RoHS),Restriction of Hazardous Substances Directive and conforms to the following standards:... - Page 16 Customer Helpline 0345 2005409...
