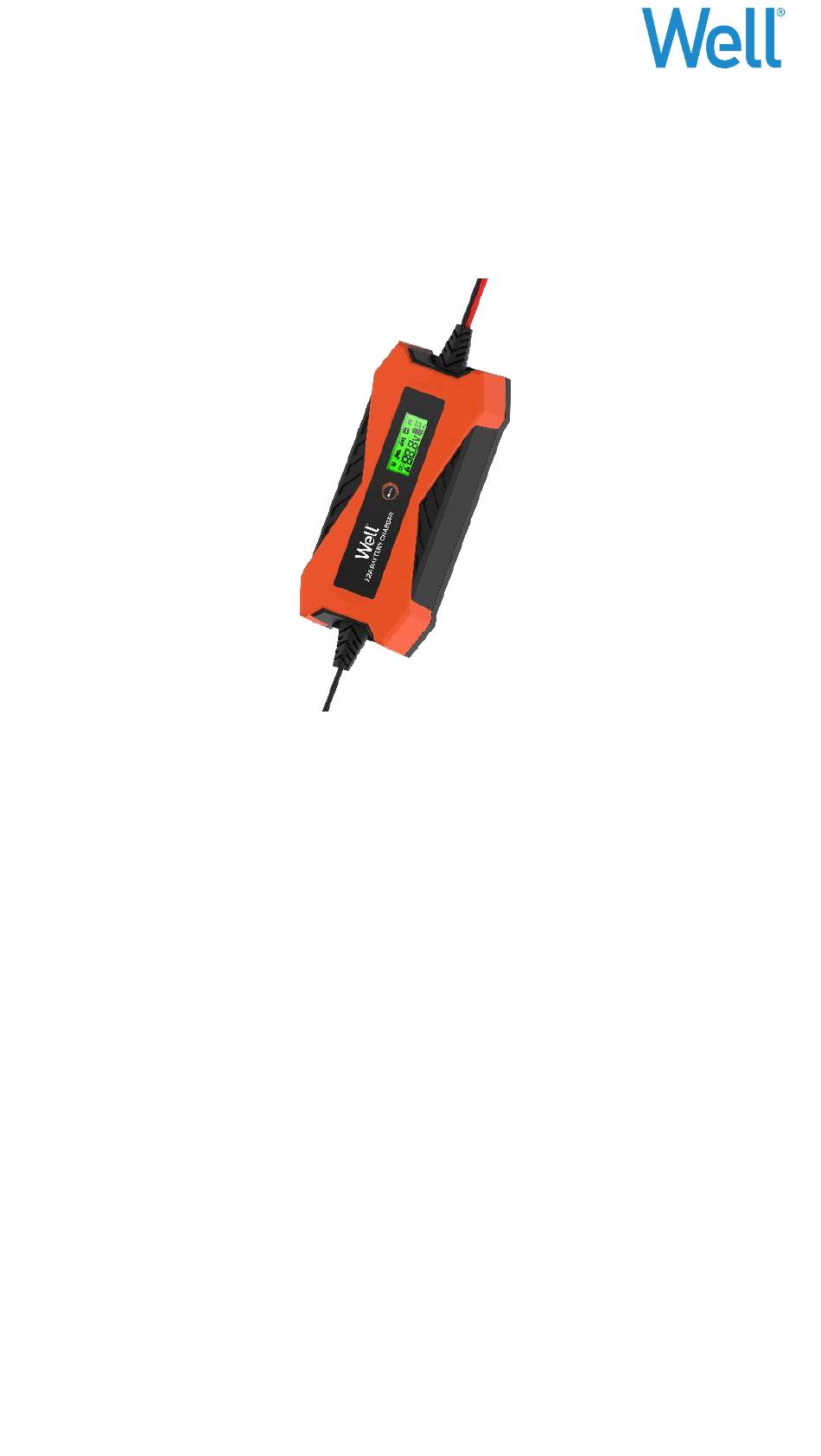

- Page 1 INSTRUCTION MANUAL SMART BATTERY CHARGER Thank you for choosing WELL. Please read carefully the following instructions and keep them within reach. Reorder No: CHAR-CAR-8612-WL...
- Page 2 About Smart Battery Charger The Smart Battery Charger have 11 steps in each charge mode, it represents some of the most innovative and advanced technology on the market, making each charge simple and easy. It is quite possibly the safest and most efficient charger you will ever use. The Charger have REPAIR mode, you can use this mode to recovery storing, old, idle, damaged, stratified or sulfated batteries.
-
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION Please read all Warnings and Cautions carefully and thoroughly before using this Charger. Failure to do so may result in personal injury and or damage to the charger which will void the warranty. CAUTION: Personal Safety • Use of an attachment not recommended or sold by the battery charger manufacturer may result in a risk of fire, electric shock, or injury to persons. - Page 4 This could create a spark. • Make sure the area around the battery and charger is well ventilated. DO NOT use this product in an enclosed space. The internal battery may vent explosive hydrogen gas, which can be ignited by sparks from electrical connections.
- Page 5 hazard, or to cause burns if a metal object contacts both terminals. NEVER allow the red and black clips to touch each other or a common metal conductor. • DO NOT expose this product to water, rain, snow, condensation, or spray. •...
- Page 6 B. CHARGING BATTERY INSTALLED IN VEHICLE Note: Connect and disconnect the DC output clamps ONLY AFTER removing the AC plug from the electrical outlet. Never allow the DC output clamps to touch each other. This may cause a spark. CHOOSE THE GROUND SYSTEM YOU WILL USE AND FOLLOW THE STEPS Connecting to a negative-grounded system: 1.
- Page 7 LCD Display Manual * Keep pressing the Mode button for more than 3 seconds, you can change between Charging Modes cold mode 3.6A charge mode 7.2A charge mode repair mode 6V battery mode SUP 13.6V 7.2A Failure Display dead battery error Voltage or Failure Code Display •...
- Page 8 It is important to understand the differences and purpose of each charge mode and battery type. Do not operate the charger until you confirm the appropriate charge mode and battery type for your battery. Below is a brief description:...
- Page 9 Using 12V Repair 12V Repair is an advanced battery recovery mode for repairing and storing, old, idle, damaged, stratified or sulfated batteries. Not all batteries can be recovered. Batteries tend to become damaged if kept at a low charge and/or never given the opportunity to receive a full charge.
-
Page 10: Malfunctions And Solutions
MALFUNCTIONS AND SOLUTIONS Problem Cause Solution Possible battery Do not use/scrapped. short and can not be repaired. The battery is too big for the charger Switch to a larger charging current. or the charging current is too small. Damaged battery. Do not use it. -
Page 11: Technical Specifications
TECHNICAL SPECIFICATIONS Rated Input Voltage AC: 220 - 240 VAC, 50-60Hz Working Voltage AC: 170 - 260 VAC, 50-60Hz Input Current: 1.1 A rms (at full charging current) Efficiency: 85% Approx. Power: 108W Max Charging Voltage: Various Charging Current: 3.6A (6V), 3.6A (12V), 7.2A (12V) Low-Voltage Detection: 3V (12V), 3V (6V) Back Current Drain:...
