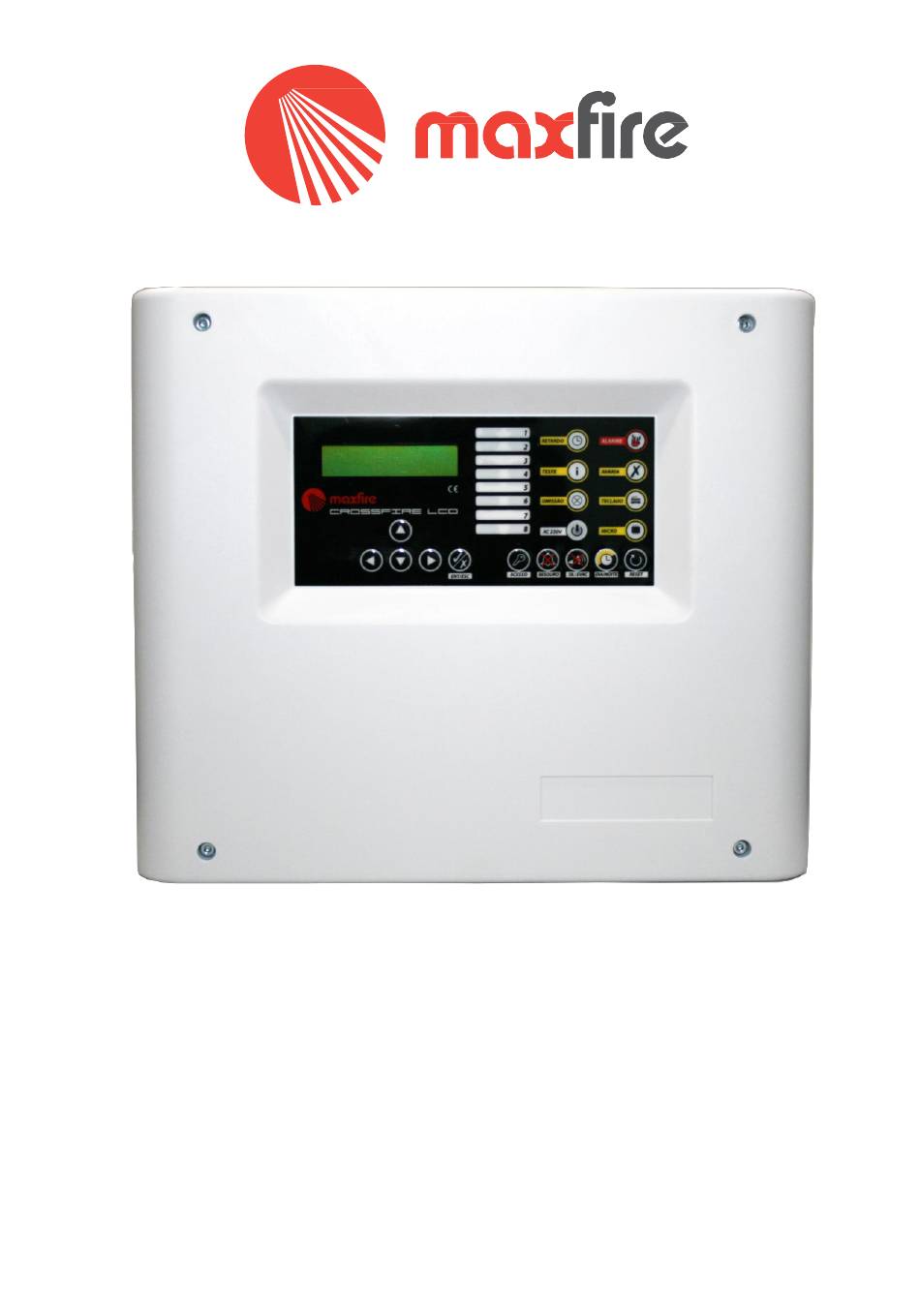

CROSSFIRE LCD
INSTALLATION AND PROGRAMMING MANUAL
Version 1.5
Revision B
May de 2012

Advertisement

loading

Summary of Contents for Maxfire CROSSFIRE LCD

  • Page 1 CROSSFIRE LCD INSTALLATION AND PROGRAMMING MANUAL Version 1.5 Revision B May de 2012...
  • Page 2 Crossfire LCD - Installation and Programming Manual Index Introduction Before Installation Package Contents Notes for Installation Protection against transitory interference Cleaning And Location Installation Recommendations General Connections System Startup Status LED’s Programming mode Programing - Level 3 Zones Test Mode...
  • Page 3 Crossfire LCD - Installation and Programming Manual Introduction Thank you for purchasing the Fire Detection Panel Crossfi re. This panel was design with the highest standards of performance and quality, in accordance with the EN-54. Before Installation Please read this manual thouroughly to ensure that you can use this device correctly and safely...
  • Page 4 Crossfire LCD - Installation and Programming Manual Instalation Once found the correct place for the panel, please follow the steps: 1.If necessary open the plastic holes for cabling pass-through. Please do the holes carefully and in the correct places. If for some reason you need to add more holes, remove all the electronic on the housing to avoid damaging the panel’s...
  • Page 5 Crossfire LCD - Installation and Programming Manual General Inputs Zones The panel has 4 or 8 input zones of conventional detection, up to 30 detectors per zone, fully monitored. Outputs Siren outputs The panel has 2 independent siren outputs fully monitored. These outputs are fully programmable.
  • Page 6 Crossfire LCD - Installation and Programming Manual Connections Panel wiring Fire detection wiring must be separated from other usage wiring. Zone circuits must be terminated with a 4700 ohm EOL resistor (provided with panel) in the last device. If a zone is not used, plug the EOL resistor directly in the panel terminals.
  • Page 7 Crossfire LCD - Installation and Programming Manual Alarm and fault relays Alarm relay is activated when alarm condition occurs. Once activated, it is necessary to reset the panel to get the panel active again.The fault relay is activated when a fault in the system occurs, or if, AC or battery power fails.
  • Page 8 Crossfire LCD - Installation and Programming Manual Startup During the panel startup all Led’s light up for a few seconds. The startup sequence ends with a BEEP tone. Confirming zones and auxiliary 24V output have a cool off period of 4 seconds.
  • Page 9 Crossfire LCD - Installation and Programming Manual Startup The start of the CROSSFIRE LCD is extremely simple and intuitive, given that all functions are accessiblefrom the tree of menus LCD display. To access the menus, you must first enable the keyboard by holding down the button for 3 seconds “ACCESS”.
  • Page 10 Crossfire LCD - Installation and Programming Manual MENU 2 Active Alarms Menu 2 <-> The Menu “Active Alarm” allows you to quickly check which circuits Active Alarms (zones)that are in alarm. To enter the menu, press the “Ent / Esc” key and use the cursor “Left” and “Right” to check the status of the alarm circuits.
  • Page 11 12 for the section - ADVANCED PROGRAMMING. DIRECT ACCESS KEYS - Level 2 The Crossfire LCD has dedicated keys for direct acting of the key features Access level 2 Press under normal useas specified in EN54-2. To access the functions of these...
  • Page 12 If the Day Mode stays active the LED “Delay” should light up getting fixed. ADVANCED PROGRAMMING - LEVEL 3 The Level 3 Advanced Programming allows parameterize detail the functioning of Crossfire LCD. This level is locked by password, and should only be used by qualified professionals for this purpose.
  • Page 13: Display Message

    Crossfire LCD - Installation and Programming Manual MENU 1-2 Zone Names O Menu “Nomes de Zonas” allows you to customize the name of the zones <-> Menu 1-2 which are later shown on the display, making easier to find and Zone Names identification the source of the alarm or fault.
  • Page 14 Crossfire LCD - Installation and Programming Manual MENU 1-7 Fault Relay <- Menu 1-7 Fault The Menu “Fault Relay” lets you define which zones of the system that Relay act the Fault Relay. By accessing this menu, you can select zones that will trigger the relay.
  • Page 15 Crossfire LCD - Installation and Programming Manual MENU 5 - LANGUAGE <-> Menu 5 This menu allows you to select the language menus of the Control Panel. Language The available languages vary according the firmware version installed on the unit.
  • Page 16: Specifications

    Crossfire LCD - Installation and Programming Manual SPECIFICATIONS MECHANICAL Housing Self Extinguishable ABS Plastic Dimensions (Largura x Altura x Fundo) 321 x 286 x 90 mm Weight 1,6 Kg ENVIRONMENTAL Operating Temperature -5ºC~45ºC (recommended 5ºC to 35ºC) Rekative Humidity 5% a 95% without condensing...
  • Page 17: Installation Record

    Crossfire LCD - Installation and Programming Manual INSTALLATION RECORD Please fi ll this installation record for future reference. You may forward this info to your client, or peel off this page and keep it on a safe place. INSTALLER DETAILS:...
  • Page 18 Crossfire LCD - Installation and Programming Manual Sanco - Produtos Electrónicos, SA (“SANCO”) Warranty Policy Certificate This Warranty Certificate is given in favor of the purchaser (hereunder the “Purchaser”) purchasing the products directly from Sanco or from its authorized distributor.
  • Page 19 Crossfire LCD - Installation and Programming Manual Wiring Diagram Version 1.5 | Revision B | May 2012...
  • Page 20 Crossfi re LCD - I nstallation and Program ming Man ual NOTES Version 1.5 Revision B May 2012...
