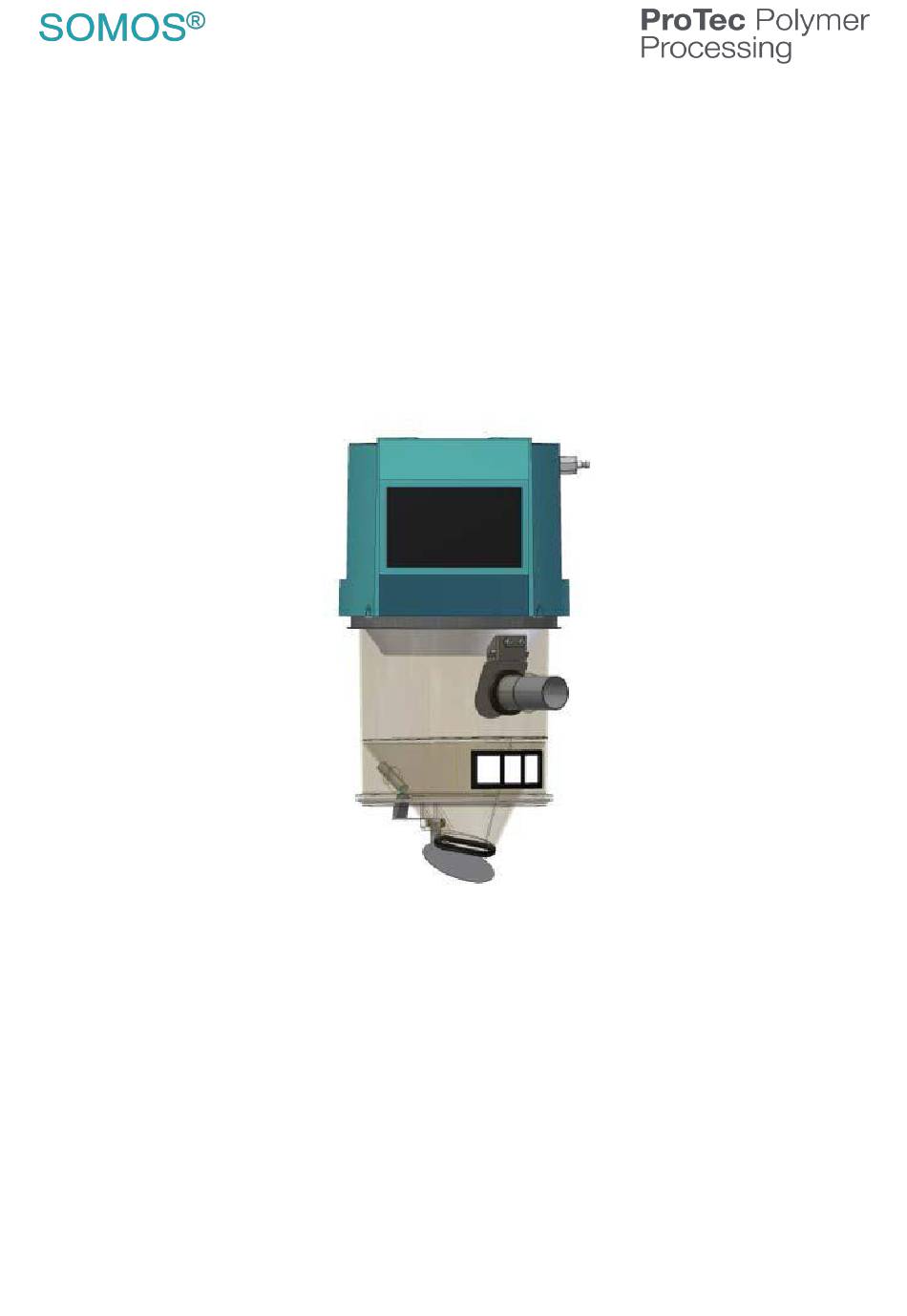

- Page 1 FG 20x conveyors ® with control system SOMOS control-basic Operating Manual ProTec Polymer Processing GmbH Technical customer service Stubenwald-Allee 9 64625 Bensheim +49 6251 77061- 251 Germany +49 6251 77061- 570 +49 6251 77061-0 +49 6251 77061-500 service@sp-protec.com info@sp-protec.com www.sp-protec.com...
- Page 2 ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en...
-
Page 3: Table Of Contents
Dimensions ......................17 3.3.2 Electrical data......................17 3.3.3 Environmental requirements ................... 18 3.3.4 Materials ........................18 3.3.5 Noise emissions < 80 dB (A) ................18 3.3.6 Options ........................18 3.3.7 Weight of conveyor without options ................ 18 ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... - Page 4 Service and maintenance .............. 47 Clean conveyor ..................47 8.1.1 Cleaning or replacing conveying air filter ..............49 8.1.2 Replacing the conveying air filter ................49 8.1.3 Cleaning/replacing the balance filter (no continuous service) ........ 51 Service ......................52 ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en...
- Page 5 Option: Setting the type B fill level sensor ..........71 9.2.1 Sensor without cover flap ..................71 9.2.2 Capacitive sensors (CAS) can be installed non-flush for level control ....71 Pneumatic connection diagram (2-K conveyor) .........73 Chemical resistance of the material container ...........74 ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en...
-
Page 6: Introduction
Any use deviating from this is not intended use and must have a written approval from ProTec Polymer Processing GmbH. For uncertainties in the use of your mill stock or in the operation of your conveyor please contact ProTec Polymer Processing GmbH customer service. -
Page 7: Model Plates And Serial Number
Independent modifications or add-ons and the use of replacement parts that are not approved by ProTec Polymer Processing GmbH lead to the loss of warranty and guarantee. The illustrations in this operating manual can deviate from the actual design. This does not affect informational content and facts. -
Page 8: Safety
Slight injuries can occur if the corresponding precautionary measures are not made. Caution! Property damage may occur if the corresponding precautionary measures are not made. Information Here you receive information and instructions for effective and safe execution of the following activities. ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 9: Safety Labelling And Meanings
Immediately report any changes that occur (including the operating behaviour) to the responsible department/ person! In the case of functional faults the equipment must be immediately shut down and secured! Malfunctions should be immediately remedied. ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 10: Personnel Selection And Qualification
Never do this: Operating the equipment outside of given parameters. Any changes to the device NOT APPROVED by ProTec Polymer Processing GmbH. Personnel selection and qualification Only use trained or instructed personnel. Clearly establish responsibilities of the personnel for operation, fitting, servicing and repair! ... -
Page 11: Special Operating Modes
Keep all handles, steps, railings, pedestals, platforms, ladders, etc. free of dirt! Clean the systems, and especially here connections and screwed joints, before starting maintenance/repair of oil, fuel or cleaning materials! Do not use any aggressive cleaning agents! Use lint-free cleaning cloths! ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 12: Instructions For Special Types Of Risks
Block off the work area with a red and white safety chain and a warning sign. Only use voltage insulated tools. Declaration of Conformity The Declaration of Conformity must be presented in both German and English. ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 13: Technical Data And Structure
A = Murr plug connection- (custom) B = M12-Y plug connection- (custom) C = Phönix plug connection HM = Solenoid HZ = Lift cylinder Plug connection system - design HG2 = Hot granulate max. 150° C (Normal temperature max. 80°C) ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 14: Dimensional Drawing Fg 201 To Fg 204
Dimensional drawing FG 201 to FG 204 ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 15: Dimensions
For automatic cleaning of the conveying compressed air supply air filter 4 … 6 bar Excess pressure Compressed air connection PK 8 Compressed air consumption 3 net litres / conveying cycle Standard design not suitable for use with food! ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 16: Dimensional Drawing Fg 205 To Fg 206
Dimensional drawing FG 205 to FG 206 FG 205 without options FG 206 without options ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 17: Dimensions
VA 38 or 55 mm 3.3.2 Electrical data Mains connection 1/N PE AC 50/60Hz 230V Blower rated output 800 W Control magnet rated output 400 VA Current consumption Protection class IP 20 ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 18: Environmental Requirements
Stainless steel / PA Dosing attachment Stainless steel Filling level indicator Capacitive 3.3.7 Weight of conveyor without options FG 205 12.3 kg FG 206 14.2 kg 3.3.8 Compressed air Operating pressure 4 to 6 bar, ideal 5 bar ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 19: Assembling
Assembling 3.4.1 FG 201 to FG 204 Blower hood with controls Filter insert (cloth filter) Conveyed goods container Floor flap unit Filling level sensor (Optional) Nozzles Check valve Compressed air connection ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 20: Conveyor Fg 201 To Fg 204
3.4.2 2K - Conveyor FG 201 to FG 204 Blower hood with controls Filter insert (cloth filter) 2K-attachment_A FG200 change fct. Lower part FG200 PA Floor flap unit Nozzles Check valve Compressed air connection ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 21: Conveyor Fg 205 To Fg 206
3.4.3 Conveyor FG 205 to FG 206 Blower hood with controls Solenoid Filter insert (cartridge) Conveyed goods container Balance filter Floor flap unit Filling level sensor (Optional) Check valve ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 22: Function
3.4.5 Automatic cleaning of the conveying air filter Cleaning is done in the home position before conveying. It can also be done before conveying or before and after conveying. Blowers Conveying air filter Conveyed goods container Discharge flap Suction hose ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 23: Feed Of A 2Nd Component
First turn the switch to the right, then to the left; the fault is acknowledged and reset. The time period between the two switch processes is not defined; the acknowledgement is done with the left turn of the switch. ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 24: Assembly/Disassembly
Mounting accessories Necessary counter piece Fastening the conveyor 3 clamps Lever clamping ring See the chap. "Technical Data" Lever tensioning ring and counter flange Lever tensioning ring and adapting flange Lever tensioning ring and machine hopper ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 25: Mounting Accessories
Mounting accessories Adapting flange material: stainless steel or G-Al Machine hopper material Stainless steel / aluminium Net volume ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 26: Connecting Conveying Line
If these earthing measures are not executed properly and / or completely or subsequently modified this can lead to malfunctioning of the system and even destruction of individual components and /or the control system. ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 27: Earthing The Conveyor Line
Insert made of copper or steel Using a PVC hose Clamp the wires (1) in the hose (see photo) Clamp the hose with a clamp on the tube (make sure that the wire (1) is fastened with the clamp). ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... - Page 28 Clamp the wire spiral with the first clamp (S2) on the front tube (see photo). Attach the hose clamp (S1) for fastening. Caution! ONLY flexible hoses may be directly fastened, no rigid tubes, due to the possible risk of fracture of the plastic nozzles in case of transverse forces! ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en...
- Page 29 The earthing must be done via earthed conveyor hose to (earthed) conveyor tube or suction hose (see Earthing the conveyor line illustration). Picture of connection on the conveying tube: Hose clamp Suction hose Conveying tube ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en...
-
Page 30: Earthing On A Base Plate / Frame (Example)
These are, for example, platforms made of iron or steel or metal frames. Ensure that: The metal surfaces being used as a base for earthing must be free from paint at the connection point! ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 31: Mounting A Suction Hose
If this is not the case, then pull the inner tube further in. Relieve the conveyor from the weight of the conveyor hose. Therefore separately catch the weight of the conveying hose. Otherwise the device can be damaged. ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 32: Devices With Automatic Cleaning Of The Conveying Air Filter / Dosing Attachment
Connect compressed air supply line (2). Establish compressed air supply. The compressed air must be free of oil and water! Otherwise the filter will be gummed up. The filter service life is then greatly shortened. ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 33: Disassembly
Storage and transport Place the device on its side. Secure from slipping. Protect from damage (by dirt, water, chemical substances and/or aggressive atmospheres)! Caution! Do not set the conveyor on the discharge flap. Possible damage! ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 34: Disposal
Disposal Caution! Protect the environment! Dispose of the device in an environmentally manner, by getting it to recycling. Handling and disposal of used components are subject to legal regulations. ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 35: Commissioning
Pay attention to the voltage of the mains power when doing this! Insert the suction hose in the material to be conveyed. Refer to the chapter Mounting a suction hose, on page 31. Start conveyor. Check function. ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 36: Somos® Control/Basic - Device Control System
SOMOS® control/basic – device control system Take information from the operating manual: SOMOS® control/basic – device control system ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 37: Options + Accessories
= 38, s = 4;PVC 0.63 Kg/m 0.03 Kg Ø 38x1.5; Aluminium 0.46 Kg/m galvanised: id = 38, s = 6;PUR 0.61 Kg/m Ø 38x1.5; Stainless 1.37 Kg/m steel Ø 40x2.5; Glass 0.7 Kg/m ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... - Page 38 90°elbow for air line: 90°elbow for conveying line: 90°elbow for conveying line: Ø 38x1.5; 0.18 Kg Ø 38x1.5; Stainless 2.64 Kg Ø 40x2.5; Glass 0.73 Kg Aluminium steel Branch for conveying line: Branch with nozzles: Aluminium 0.65Kg Aluminium/ stainless steel 0.80Kg ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en...
- Page 39 Volume expansion with nozzles: PA / St. nickel-plated 0.50 Kg PA / Stainless steel/ 0.70 Kg St. nickel-plated Volume expansion: Volume expansion with nozzles: Stainless steel/ 1.70 Kg Stainless steel/ 2.00 Kg St. nickel-plated St. nickel-plated ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en...
- Page 40 Stainless steel/ St. nickel-plated 3.50 Kg Dosing turnout: Suction / bypass valve: Aluminium/ stainless 5.00 Kg Suction valve: Al,RAL 5018 / stainless 1.60 Kg steel steel Bypass valve: Al,RAL 5018 / stainless 1.44 Kg steel ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en...
- Page 41 Outlet Ø 35 und Ø 62 mm Counter bead: Tensioning ring Stainless steel 0.33 Kg Steel, nickel-plated 0.17 Kg After-filter: Holder for after- and central-filter: PA / Al / Stainless steel 3.50 Kg Steel, RAL 9005 0.60 Kg ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en...
- Page 42 Dust collection container: Dust collection container: 4 l; PA / St. nickel-plated 1.40 Kg 35 l; h=590; Steel, galvanised 7.70 Kg 50 l; h=795; Steel, galvanised 9.20 Kg ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en...
-
Page 43: Filling Level Indicator (Optional)
Installation of a fill level indicator on the conveyor only after consultation with Pro Tec Polymer Processing. a) Internal fill level indicator prevents overfilling with material. Conveying is thus ended by the fill level indicator or after the set conveying time has elapsed. ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 44: Turnout And Suction Valve
2K- turnout and suction valve Refer to separate operating instructions Other connection options 7.3.1 External fault indicator (lamp, alarm) 7.3.2 External START/STOP switch Contact the service department of ProTec Polymer Processing GmbH for other options. ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 45: Equipment And Options
7.4.1 Volume expansion stainless steel Vol.expans.ø 38 assy. (without lock) Vol.expans. ø 55 assy. (without locks) 51 Lock assy. 52a V-gasket ø 38 and ø 55 53 Check valve ø 38 and ø 55, assembly 58 Lever clamping ring ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 46: Dosing Attachment (Optional Instead Of Volume Expansion)
53b Check valve New set with: Check valve holder 18 mm LO Check valve ø38-40 LO Cylinder screw ISO 4762 M 4x 12 (2 pcs.) 55 Compressed air valve 57 Compressed air cylinder 58 Lever clamping ring ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 47: Service And Maintenance
Clean conveyor Stop the conveying cycle. Switch off power from device. Remove compressed air coupling. Disconnect plug connections. Open locks. Remove blower attachment. Remove filter insert. Clean filter insert. Wipe out conveyor with damp cloth. ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... - Page 48 Fasten volume expansion with the tensioning ring. Place filter insert in the conveyed goods container or the volume expansion. Fasten blower attachment. Connect plug connectors. Put on compressed air coupling. Connect device to mains power. Start conveying cycle. ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en...
-
Page 49: Cleaning Or Replacing Conveying Air Filter
Remove sealing ring (41b) and clean it. Carefully pull out from the conveying air filter (41) from the support basket. Clean the support basket (41a) and force in a new conveying air filter. Install the sealing ring. ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... - Page 50 Place filter insert in the conveyed goods container or the volume expansion. Set on the blower attachment. Fasten locks. Connect plug connectors. Put on compressed air coupling. Connect device to mains power. Start conveying cycle. ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en...
-
Page 51: Cleaning/Replacing The Balance Filter (No Continuous Service)
8.1.3 Cleaning/replacing the balance filter (no continuous service) If dirty, blow off from outside. Stop the conveying cycle. Replacing the balance filter: Unscrew the balance filter. Insert a new balance filter. Start conveying cycle. ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 52: Service
Stop the conveying cycle and disconnect the device from power. Remove the blower attachment (21). Unscrew the screws (3) on the lower edge of the hood and remove the hood. Loosen the plug connections and remove the compressed air coupling. ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 53: Replacing The Carbon Brushes
Remove rotor hood (1a). To do this carefully loosen the snap-in hooks (1b) on both carbon brush holders (2). Pull out the plug connector (3a) on the carbon brushes. To do this slightly lift the circlip (3b). ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... - Page 54 To secure the carbon brush holding lug (4b) bend it upwards. Push both plug connectors (3) back on. Place on the rotor hood (1a) and make sure that the snap-in hooks (1b) are cleanly latched on the carbon brush holders (2). ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en...
-
Page 55: Replacing The Blower
Loosen the screwed connection of plastic hood blower (three screws on the lower edge of the plastic hood). Pull the cable of the control system from the cable lug. Unscrew the blower from the sheet metal protection. ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 56: Install New Blower (Version Fg 205 And Fg 206)
Notice the installation position. The pins must be in the position shown in the photo. The solenoid would be to the left of the photo (notice graphics). Screw the new blower with the hood. Note: Do not forget the washer and gasket! ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 57: Plug In The Cable
Insert the cable of the control in the cable lug. Note: The contact for the carbon brushes must ALWAYS be on the third position (from the top). ALWAYS stick the contact for the earthing on the fourth slot. ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 58: Earthing Blower
Remain at the device for 2 – 3 minutes and monitor the function. If there are vibrations or jerky movements of the attachment, shut down the conveyor, open it and check and retighten the screwed connection of the blower. ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 59: Replacing The Compressed Air Valve On The Cleaning Valve
Stick on the cable plug (17) and screw tightly. After maintenance Replace hood (21) and screw down tightly. Set on the blower attachment. Fasten locks. Reconnect plug connectors. Put on compressed air coupling. Connect device to mains power. ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 60: Conveyed Goods Container
Stick on the cable plug and screw tightly. 8.4.2 Replacing the V-gasket on the discharge flap Remove device. Carefully remove the old gasket (74). Glue the new gasket with Loctite 480. Refasten the device. ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 61: Replacing The Discharge Flap Assembly
8.4.4 Replacing the plate on the discharge flap Remove device. Unscrew plate (75c) from the discharge flap (75). Apply Loctite 242 on the threads of the new plate. Screw on the new plate. Refasten the device. ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 62: Replacing Check Valve
Remove the check valve (3) and holder plate (2) from the inside. Apply Loctite 242 on the screws threads. Insert the new check valve with holder plate and screw hand-tight together. Replace the filter insert. Set on the blowerattachment. Fasten locks. Connect plug connectors. ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 63: Replacing The V-Gasket On The Check Valve
Clean the contact surface of the V-gasket. Insert a new V-gasket and glue on with Loctite 480. Replace check valve (refer to section Replacing check valve). Set on the blower attachment. Fasten locks. Connect plug connectors if necessary. ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 64: Dosing Attachment (Optional)
Remove the compressed air supply line (1) from the control valve (see figure above). Remove conveying hose (2). Open locks (51). Remove blower attachment. Open tensioning ring and removed dosing attachment from conveying goods container. ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 65: Replacing Compressed Air Cylinder 2
The flange on the inside of the container must end flush with the sleeve. The nipple (5) must point upwards. Align the valve holder (8) horizontal and lock with the nut (6). Stick the compressed air hose (4) in the nipple (5). ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 66: Replacing Compressed Air Cylinder 1
The nipple (5) must point upwards. Tighten the nut (6). Stick the compressed air hose (13) in the nipple (5). Adjust the pin (10). The extended piston must close the flap. Supply the control valve with compressed air. ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 67: Replacing The Control Valve
Valve for the compressed air cylinder 2 on connection hole 4 Valve for the compressed air cylinder 1 on connection hole 2. Stick the compressed air hose (13) in the nipple (5). Stick on the cable plug (15) and screw tightly. ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... - Page 68 Fasten locks (51). Mount the conveying hoses. Connect the device to the compressed air supply. Connect the compressed air supply line (1) on the control valve. Establish compressed air supply. Connect the device to mains power. ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en...
-
Page 69: Appendix
(d ≥ 30 mm) or a sealing screw or a plug design (B) with a partially side potentiometer without cover. Adjustment with a small screwdriver is done for both designs in the same manner: Turn right: Increases sensitivity Turn left: Decreases sensitivity ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... - Page 70 Figure 2: Safety flap open Figure 3: Turning the screwdriver Half-turn to the right (clockwise) Sensitivity of the fill level indicator is increased: Half-turn to the left (counter-clockwise): Sensitivity of the fill level indicator is reduced: ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en...
-
Page 71: Option: Setting The Type B Fill Level Sensor
LED light steadily. You have now reached a stable ON level. Elimination of the background for an empty container: Place the sensor in the application with no target in front of the sensor. ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... - Page 72 (table) must be observed: PA 6.6 PTFE M 30 x 1.5 13 Nm 3.0 Nm 230 Nm When screwing in the threaded blocks the maximum insertion lengths must be observed (DIN 13). ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en...
-
Page 73: Pneumatic Connection Diagram (2-K Conveyor)
Pneumatic connection diagram (2-K conveyor) ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... -
Page 74: Chemical Resistance Of The Material Container
Chemical resistance of the material container © Evonik Industries AG ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en... - Page 75 © Evonik Industries AG ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en...
- Page 76 L+., L-.,. GNYE GNYE Achtung!!! Einstellung EXTERN. Motor EIN/AUS wählen 79-81-042-391 T6,3A L+.. L+... L+,, L+,,. L+., L+.., L-.. L-... L-,, L-,,. L-.,. L-,.. PE.. PE... PE,. PE,.. PE,., PE., PE.,, PE,,, Option GNYE GNYE option option Reihe-Adapter Y2.1 Y4.1 -XS1 230V Zuleitung...
