HSL Secure Extended Isolators Quick Setup Guide
describe. Reproduction, disclosure, or use without specific authorization from HSL Corporation is strictly prohibited.
Page 2
Table of Contents SECTIONS TABLE OF CONTENTS Introduction HSL Secure KVM Extenders Installation Connecting the Secure KVM Extender Operation Running an EDID Capture Safety and Regulatory Statements HSL Secure Extended Isolators Quick Setup Guide HDC19956 Rev.1.0...
Page 3

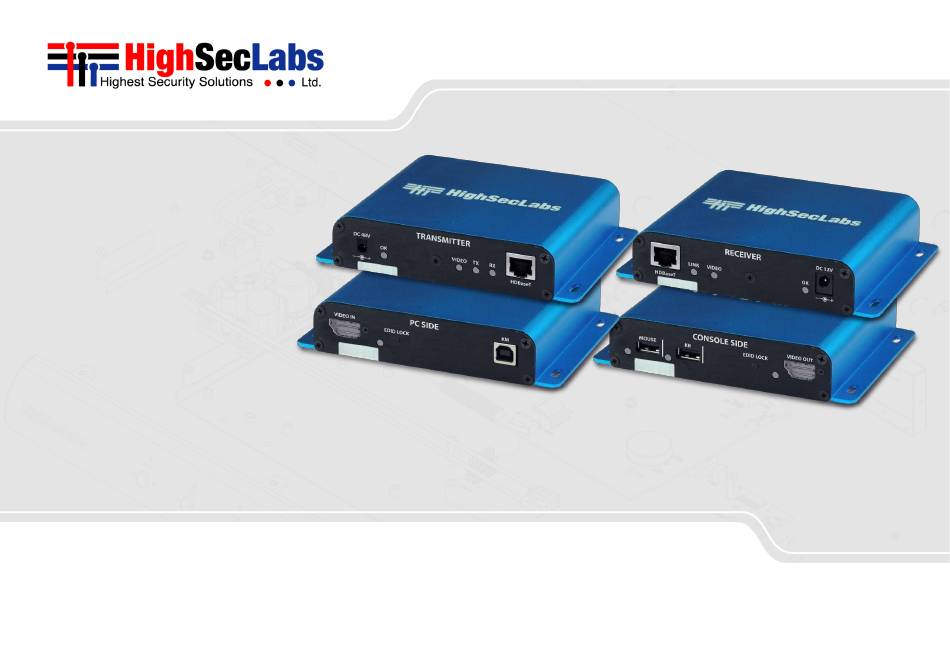

SECTIONS Table of Contents INTRODUCTION HSL Secure KVM Extenders Family The Secure KVM Extender extends video, audio and Keyboard/Mouse signals up to hundreds of meters while it prevents vulnerable peripherals from mediating between compromised and secure computers by ensuring that video, audio and KM flow are in a single direction.
Page 4
Receiver buildings. Connect the two parts with a suitable cable through the connection port: Models FICE11PH-M, FVCE11PH-M and KB LEDs FICE11CH-M - with a Copper Cable Models FIFE11PH-M and FVFE11PH-M - with Optical Fiber Cable...
Page 5
HDMI or DP video cable 2. PC Keyboard Mouse connection: FICE11PH-M, FIFE11PH-M models, connect the PC to the Isolator using a USB A to USB B cable. Power LED Connect the USB A end to the PC and the USB B Rx to Tx Video transfer end to the Isolator Extender’s COMP/MOUSE port.
1. Video connection: For all models, connect the monitor/projector cable to the Isolator’s VIDEO OUT port. 2. PC keyboard and mouse connection: For FICE11PH-M, FIFE11PH-M models, connect a USB mouse and keyboard, to the Isolator Video Extender Receiver’s corresponding MOUSE...
Page 7
SECTIONS Table of Contents INSTALLATION Step 4 - Power ON 1. For all models, connect the power adapters on both the Secure KVM Extender’s Transmitter and Receiver at the PC SIDE, DC IN port. Power ON the unit by plugging it into an AC wall outlet.
Table of Contents SECTIONS OPERATION Running an EDID Capture Note: An EDID capture needs to be Before using the Extender, run a one-time EDID capture on both sides – Transmitter performed for new installations and and Receiver. This prevents the continuous transfer of potentially malicious data - when changing a display.
Table of Contents SECTIONS SAFETY AND REGULATORY STATEMENTS Safety Symbols One or more of the following symbols may be included in your NIAP Protection Profile product documentation and/or on the product. This product is certified to the NIAP Protection Profile PSD version Instructions: This symbol is intended to alert the user to the presence of important 4.0 certification for peripheral sharing switch devices.
