RCmart ESC 45A-H Quick Start Quide

ESC 45A-H (High Voltage) Electronic Speed Controller
Thanks for choosing this ESC (Electronic Speed Controller) for your brushless motors. This is a user-friendly, easy
to setup, and high efficiency speed controller for both fix-wing airplanes & helicopters. It is produced by the highest
quality and reliability. We hope it provides you with hours of enjoyment.
We strongly recommend you pay careful attention to the following instructions and warning before you start
using this electronic speed controller.
Model : ESC 45 A-H
Specifications:
Application Fields: fix-wing airplane & helicopter.
Battery range:
LI-XX = 2 ~ 6 cells; 7.2 V ~ 21.6 V.
NI-XX = 6 ~ 18 cells; 7.2 V ~ 21.6 V.
Working Current: 45A /50 A surge 15 sec.
PWM frequency: 8 KHz.
Maximum RPM: 2-pole motor / 210,000 rpm.
6-pole motor / 70,000 rpm.
12-pole motor / 35,000 rpm.
Protection: OHP, Over Heat protection.
OVP, Over Voltage (battery) Protection.
LVP, Low Voltage Protection (soft cut-off).
BEC Current: 3A（Max.）.
Ambient Temperature: 0℃- 50℃.
Weigh: 48 g.
Size: 70 x 27 x 14 (mm).
Features:
High rate (8 KHz) switching (PWM); Supported
highest motor speed: 210000 RPM (2 poles), 70000
RPM (6 poles), 35000 RPM (12 poles).
Dynamic braking ensures prompt prop folding.
Over Heat Protection.(OHP).
User easily Programmable ESC Features by ESC
Programming Card (optional).

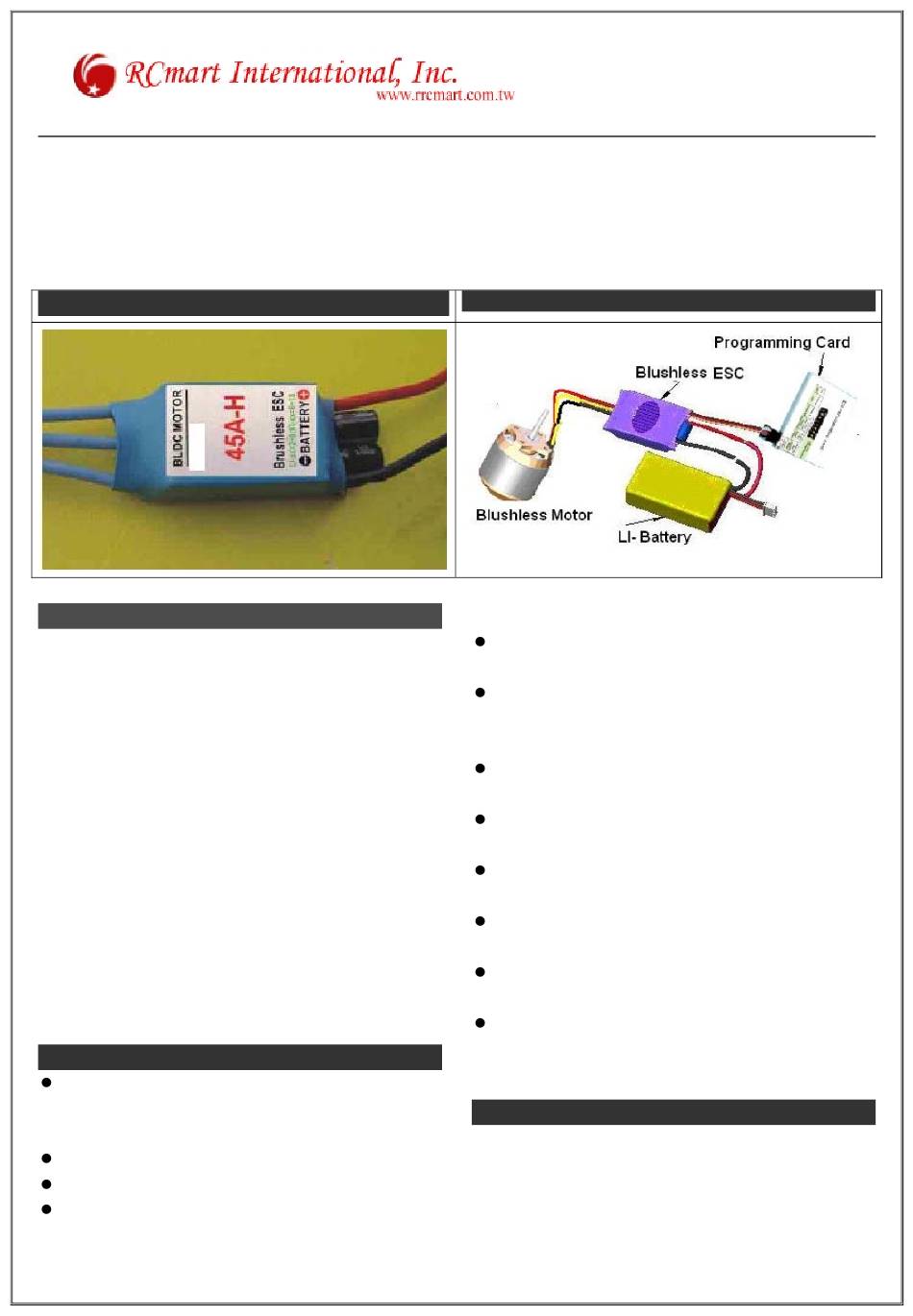

Connection Diagram :
Low-voltage soft cut-off protection, cause throttle
going slow down.
Battery range protection, when the voltage of the
battery pack is lower/higher than the Battery range
threshold, the alarm status is activated.
Brake / No-Brake operation. Stop folding props cold
or let fixed props freewheel.
Safe "power on" arming program ensures motor will
not accidentally turn on.
Low torque "soft start" prevents damage to fragile
gear boxes.
Auto shut down in 2sec. after when RX signal is lost
or radio interference becomes severe.
Throttle Range can be auto setting during at first
power on time.
ESC can make brushless motor play a music when
all the setting is ready to go.
Operation Produce:
1. Choose right Battery voltage range according to
ESC input range.
2. Automatic throttle adjustment for using on every
transmitter.
3. Setting Brake or Non-brake mode.
