Summary of Contents for HASWING HELMSMAN

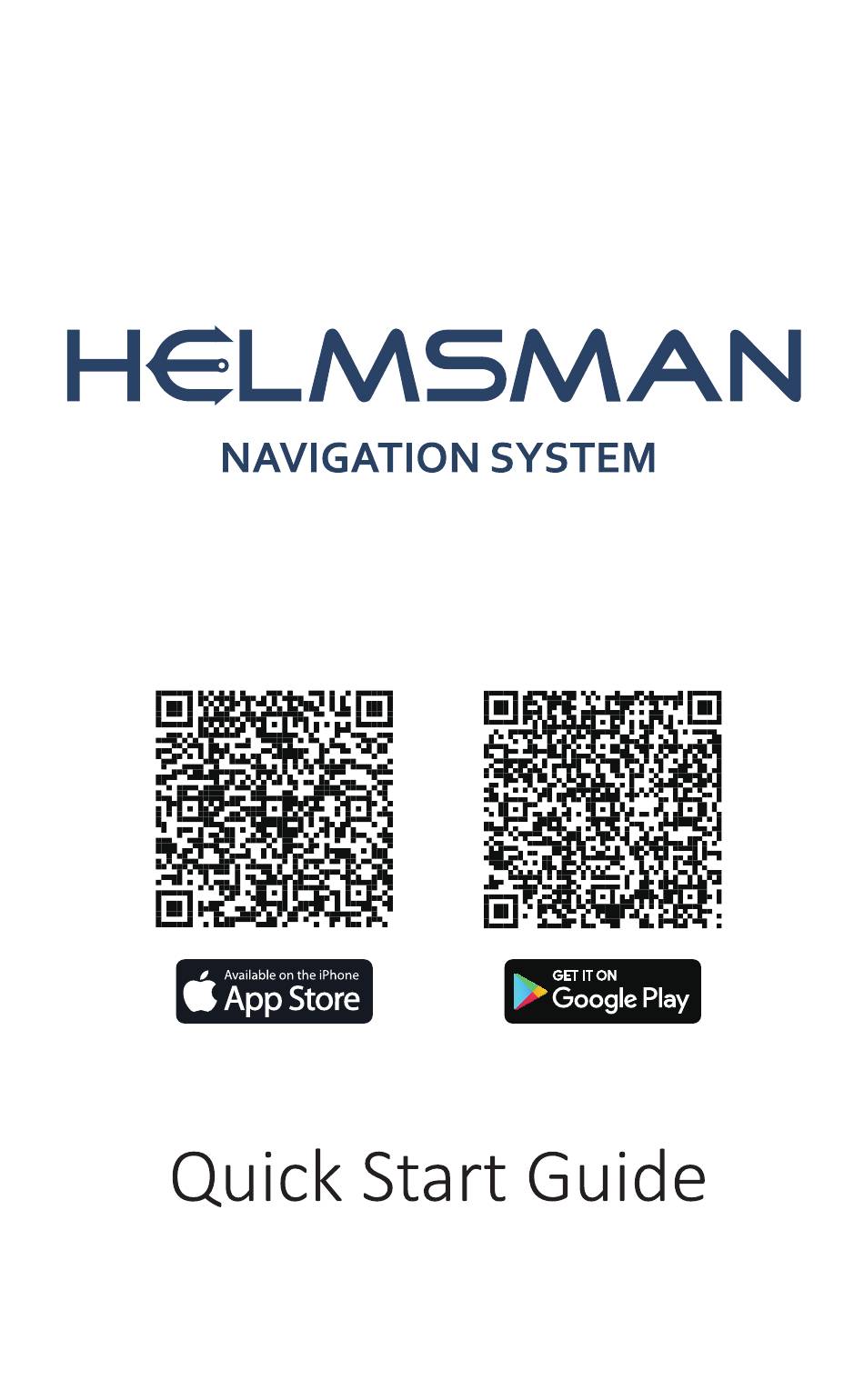

- Page 1 Please read the motor manual before this...
- Page 2 Connect the battery to the motor, wait 10 seconds for system to initialize before deploy the motor. NOTICE: It may a ect the accuracy of navigation, if deploy the motor early. To ensure that the motor is used in open area and ne weather, otherwise boat...
- Page 3 App to control your motor. NOTE: HM-connector act as a bridge that connects the cell phone and the boat control, therefore you need to make sure it is power on and keep it close to your cell phone meanwhile using the HELMSMAN .
- Page 4 Navi Mode You can select a suitable mode for navigation in di erent environment. Diagnostics The operation log will be updated to Helmsman Data Center. It helps us to improve product quality and after service. My Devices Lists the information of the devices which have been...
- Page 5 Calibrate the compass inside boat control before rst use, or when the angle deviation between heading direction and arrow direction is larger than 10 degree. The correct calibration result is shown in gure. Tap the setting button. Select heading calibration and tap start button.
-
Page 6: Basic Operation
Basic Operation You can operate all the functions with your smart phone. Whether manual control or advanced functions, simple UI interface is easy to operate. HM-connector Helmsman Network Boat control... -
Page 7: Manual Control
Manual Control Full speed function can be activated only when the motor is on. Please start the motor rst. - Page 8 My Routes In My Routes interface, tap “New Route” button to create a new route on the map directly. By pressing in map, you can add new waypoints. You can also edit the exist waypoints by pressing it and draging to the new location. save the new route into My Route list reverse the route...
-
Page 9: Advanced Functions
Advanced Functions NOTICE: All the advanced functions can be used only in case of the GPS is connected. The accuracy of advcanced functions are related to the intensity of the GPS signal... -
Page 10: Cruise Control
Cruise Control Cruise control is for e cient sailing in straight line with a set GPS speed. Please set up the desirable speed and start the motor before entering cruise control mode. NOTICE: In Cruise control mode, you can steering manually to avoid the obstacle and adjust the cruise direction, but the motor speed can not be changed. - Page 11 Here we can comments to those who share and download all the functional routes and anchor spots from network. Helmsman welcome you to join and build a better network together. P.10...
-
Page 12: An Important Note
We are not responsible for the danger and damage caused by function failure of your cell phone. It’s strongly recommended to practice how to use the Helmsman navigation system with the motor in an area free from hazards and obstacles. Support If you have any comments and suggestions, please contact us : HELMSMAN App >...
