Joypad Remote Controller KIT (RBX-BTCONT-01) Manual
1. Introduction
Joypad Remote Controller Board can control RoboBuilder by wireless, which is using Joypad for Games.

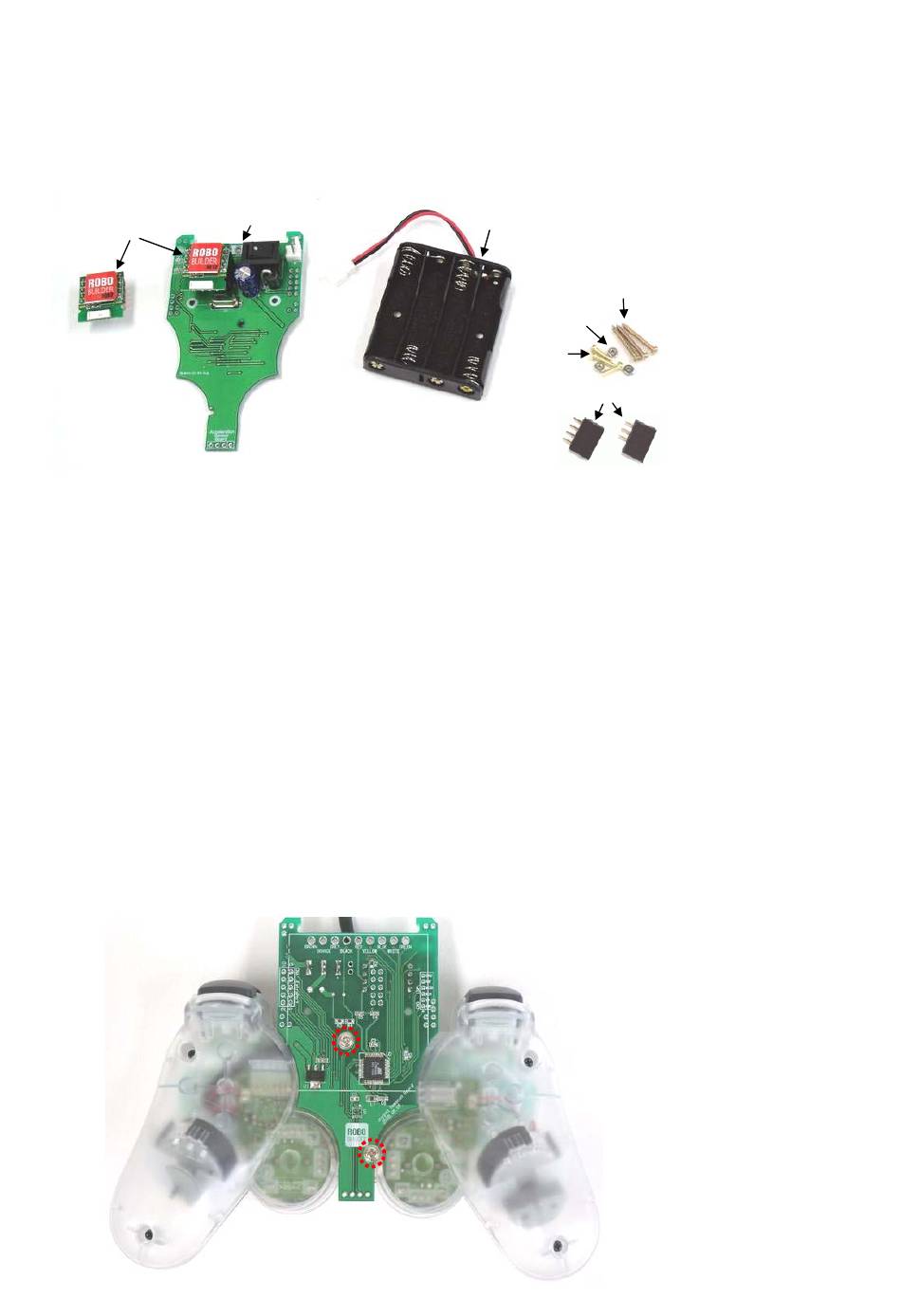

2. Part List
②
① Joypad Remote Controller Board 1 EA
② Bluetooth Module 2 EA
③ Battery Holder 1 EA
④ Screw for fixing board 2 EA
⑤ Nut for fixing battery holder 2 EA
⑥ Bolt for fixing battery holder 2 EA
⑦ two Sockets for the installation of item ②
※ NOTE :
1. Joypad is not included in Part List. Original Sony Playstation 2 Joypad is strongly recommended.
Some other Joypad works, however, we do not gurantee with other Joypad.
2. RoboBuilder does not take any responsibility of physical injuries or damages during assembling.
3. Installation
① Required parts
SONY PlayStation 2 Joypad 1 EA
AAA Battery 4 EA
Bluetooth Kit (RBX-BLTOOTHCOM) 1 EA
② Unscrew the bolt as shown in the below, then fix Joypad Remote Controller Board by using 2 screws for fixing board
①
August 20th, 2008, RoboBuilder co., Ltd.
③
④
⑤
⑥
⑦
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for RoboBuilder RBX-BTCONT-01
- Page 1 Joypad Remote Controller KIT (RBX-BTCONT-01) Manual August 20th, 2008, RoboBuilder co., Ltd. 1. Introduction Joypad Remote Controller Board can control RoboBuilder by wireless, which is using Joypad for Games. 2. Part List ① ③ ② ④ ⑤ ⑥ ⑦ ① Joypad Remote Controller Board 1 EA ②...
- Page 2 ③ Leave Joypad Cable 5~6 cm length and cut the rest parts, then remove each line coating 1~2 mm. ④ In order to make it easy to solder, put some lead on each edge of lines in advance. ⑤ Check out each pin No. and color by using Multi-meter. Pin No.
- Page 3 ⑥ Solder each Joypad line onto the board as shown in the below. ⑦ Insert Battery (Battery is not provided.) into Battery holder, then connect to the board. You can check the red LED lights after power on. Green LED lights whenever Joypad buttons are pressed.
- Page 4 ⑨ Fix the battery pack as shown in the below by using screw bolt and nut. ⑩ Equip with Battery and Bluetooth module, Completed!
- Page 5 ⑪ Unscrew and remove the four screws on the corners of the RBC control box. Remove the rear plastic cover and separate the battery connector. ⑫ Unscrew and remove the two screws holding the circuit board to the front cover. ⑬...
- Page 6 ⑭ Turn over the circuit board and solder the seven pins of the two sockets. ⑮ Install the bluetooth board on the two sockets as shown below (be cautious about its direction). Assemble the RBC control box to complete the installation. Follow the steps ⑫ and ⑪ reversely.
- Page 7 ○ Down Analog × L-STICK R-STICK ② Command No. table Send the command to RoboBuilder through Bluetooth module by wireless when buttons are pressed. Command No. IR Remocon Button Joypad Button Command No. IR Remocon Button Joypad Button 0x01 Select...
- Page 8 ③ LED Indication BLUETOOTH : Blue LED lights when Bluetooth communication is connected. POWER : Power ON Indication (Red LED lighting) JOYPAD : Joypad communication (Green LED blinks) BLUETOOTH POWER JOYPAD 5. Circuit Diagram ※ NOTE : U3, CN6 is for acceleration sensor expansion part, and this does not included.
