Stafford Kit Build assembly instructions
Feldbahn supplement
This supplement is to be referred to in conjunction with the standard Stafford assembly manual and
details main points of difference between Stafford and Feldbahn.

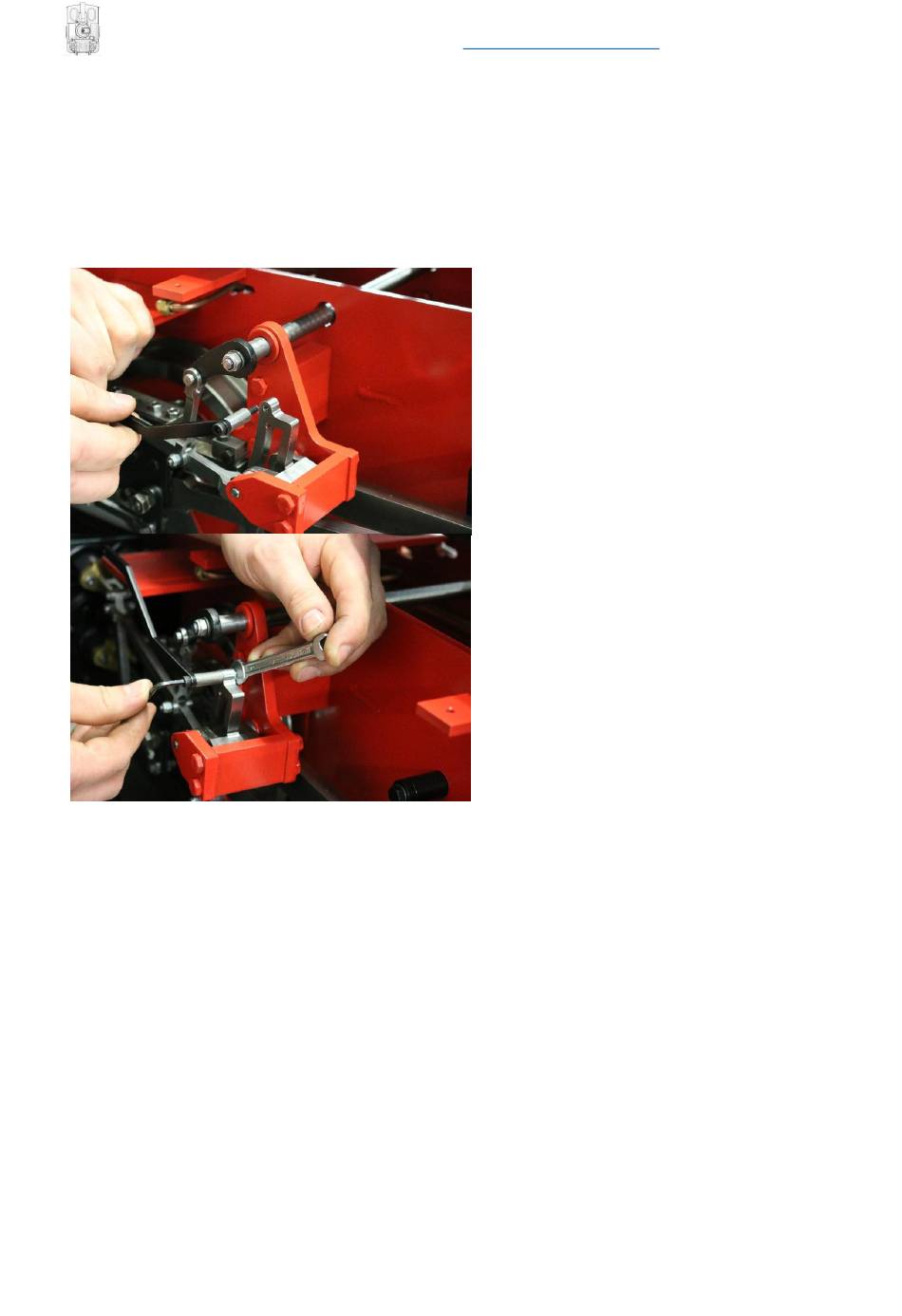

Fit lubricator link arm using using a M4 x 35 Cap head with a 17mm spacer and bolt to the top
threaded hole on the expansion link (10101), Finally secure using an M4 nyloc nut on the back side
of the expansion Link.
