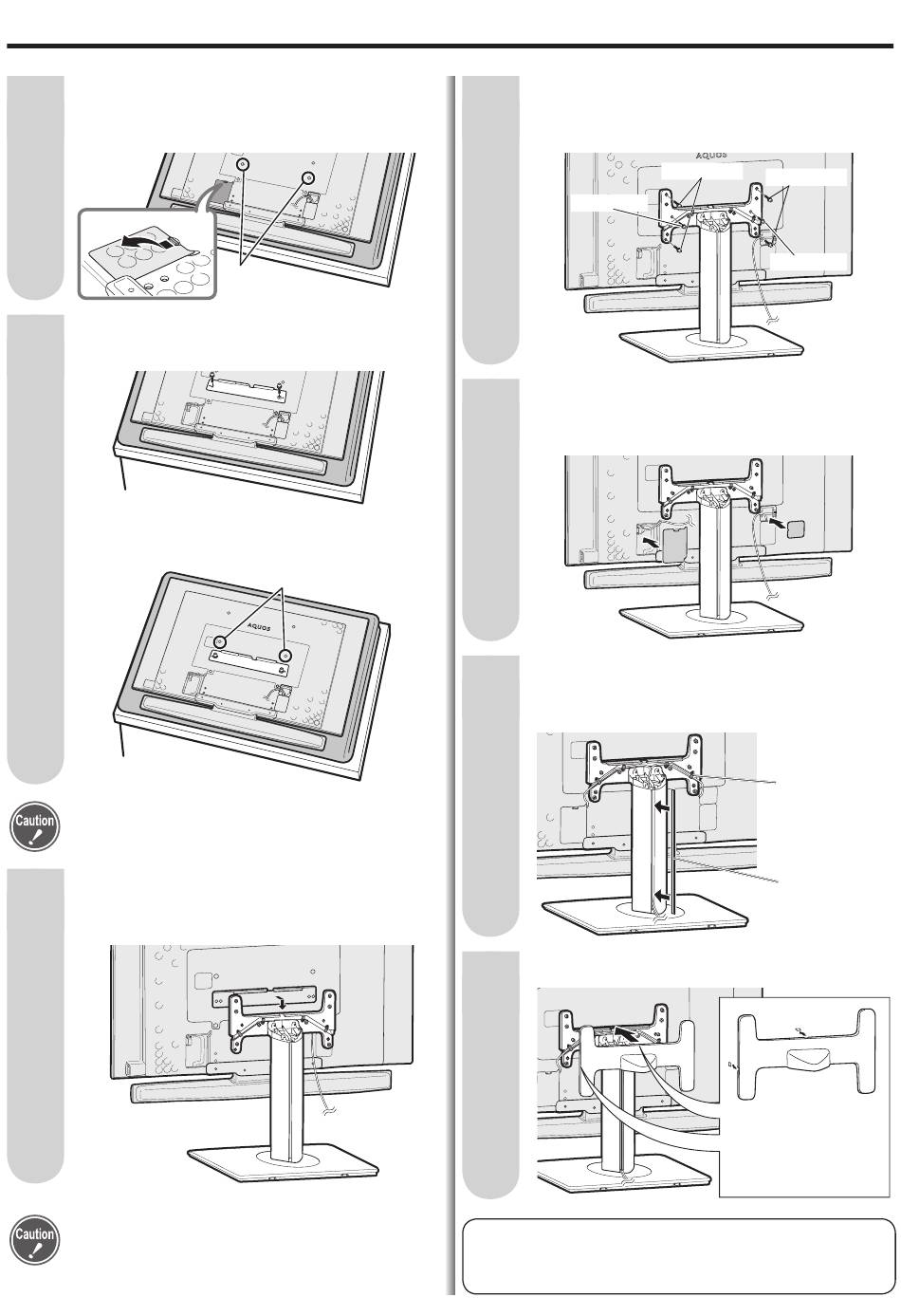

Attaching the Table Stand to the LCD Color TV

1
Remove the 2 screws indicated and the terminal
cover from the back of the LCD color TV. (Store the
screws in a safe place after removing them.)
2
Attach the stand bracket to the back of the LCD color
TV using 2 included M8 hex screws (D).
* Only for the case of a 52-inch LCD color TV, you
need to remove 2 more screws.
• Place the LCD color TV on a blanket or other thick,
soft cloth during installation.
3
Hook the stand bracket attached to the LCD color TV
over the mounting bracket on the stand and attach it
temporarily.
• Take care not to get the power cord caught between
the brackets.
• As the LCD color TV is only temporarily attached at
this stage, do not lay it down.
E-3
Screws
Screws
4
Firmly attach the stand using 2 M6 hex screws (B)
and 4 M8 hex screws (C). (Use the M6 and M8 hex
wrenches respectively.)
Screws B (M6)
5
Connect the cables, reattach the terminal cover, and
attach the power cord cover included with the LCD
color TV to the back of the LCD color TV.
6
Feed the cables through the groove in the stand and
attach the included stand cable cover. (Organize the
cables with the cable clamps on the stand.)
7
Attach the included stand cover to the stand.
● Adjusting the angle of the TV
• The stand can be swiveled vertically 20° to either side. Hold
the stand fi rmly when adjusting the angle.
Screws C (M8)
Screws C (M8)
Screws B (M6)
Cable clamp
Stand cable cover
When you attach
options, you can remove
this cover and run
the cable through the
groove.
