Summary of Contents for Rutenbeck Control IP 4

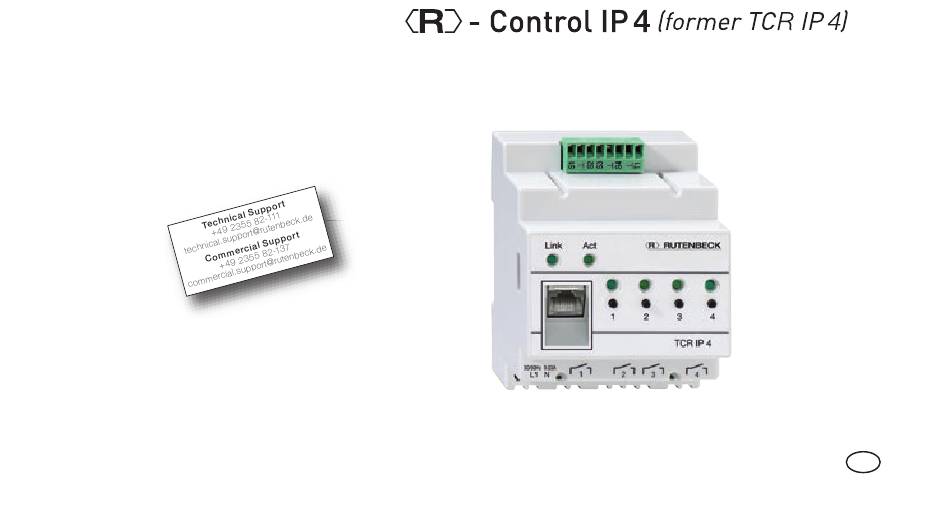

- Page 1 Control IP 4 Operating instructions...
-
Page 2: Device Overview
Device overview External buttons (for manual switching) Temperature sensor connection LED for activity LED for link Buttons for manual switching Network connection Switch outputs To the 230 V power supply Device overview... -
Page 3: General Information
Simple Network Time The Control IP 4 can be con- Protocol (SNTP) and, providing trolled directly via UDP. Two lan- that the server can be reached, guages can be selected for the is then compared each hour. -
Page 4: Installation Notice
Apple’s App Store, allows work may only be per- use the Control IP 4 directly remote control of the device formed by authorised next to devices that generate via Apple smartphone or tablet. - Page 5 Settings Network settings without DHCP server Figure 1 Settings...
- Page 6 Settings Network settings without DHCP server 1. Connect the Control IP 4 to 6. Select an individual “Net- the local network using a work name” in order to be patch cable (available able to call up the Control separately). IP 4 directly.
- Page 7 (Fig. 1, B). two terminals. 8. A free IP-address is now 3. Connect the Control IP 4 to assigned to the Control the 230 V mains voltage. IP 4. 4. The Control IP 4 can now be accessed via the address http://192.168.0.3...
- Page 8 Settings Configuration Figure 2 Settings...
- Page 9 Settings Configuration Settings...
- Page 10 Settings Factory settings You can replace the Control Operating elements IP 4 factory settings with your The Control IP 4 outputs can the installed buttons or via the own settings. be switched via the buttons Control IP 4 website. Proceed as follows to restore...
- Page 11 Switching Impuls mode Figure 3 Switching...
- Page 12 “Send impulse” menu (Fig. 3, J). There are two differ- The Control IP 4 acts converse- ent types of impulse. The “On” ly when an out impulse is sent impulse switches the output on when the output is switched off.
- Page 13 Switching Time switch function Figure 4 Switching...
- Page 14 A company‘s lighting system is can also be applied for set off for a certain period of time controlled by the Control IP 4 in dates. (e.g. one hour) via an impulse the example (Fig. 4).
- Page 15 PC time. nected from the mains. The PC system time is saved in the Control IP 4 by pressing the “Save system time” button. It is updated and is accurate to one second. In order to prevent unnecessary...
- Page 16 Technical data Mechanical characteristics Dimensions L x W x H: 72 x 90 x 65 mm Material: Weight: 210 g Colour: Light grey (similar to RAL 7035) Protection class: IP20 according to DIN EN 60529 Temperature range Operation: -20 to 55 °C Storage temperature: -25 to 70 °C Electrical properties...
-
Page 17: Technical Data
Technical data Connections Network connection: RJ45, 10 Mbit/s Temperature sensor (optional) Article number: 700 802 201 Length: 0.6 m Extension: to a maximum of 10 m Temperature range: -25 to 55 °C, resolution 1 °C Temperature range -25 °C: 86.4 kΩ 25 °C: 10 kΩ... -
Page 18: Manufacturer's Warranty
Manufacturer’s CE Declaration Disposal of Waste Warranty We, Wilhelm The adjacent symbol The guarantee preconditions Rutenbeck GmbH indicates separate are described in our general & Co. KG, declare waste collection for terms and conditions. These under our sole electrical and elec-... - Page 19 Notices Notices...
- Page 20 Klagebach 33 58579 Schalksmühle Germany Phone +49-(0)23 55-82-0 +49-(0)23 55-82-105 www.rutenbeck.de mail@rutenbeck.de © Wilhelm Rutenbeck GmbH & Co. KG · 293 656_GB · 700 802 610 · Rut047 · Stand 04.19 Subject to technical modifications.
