Finglai KG316T Manual

Please read the manual carefully before using it, and keep the manual in good condition.

▇ Function and purpose

This product can automatically turn on and off the power supply of various electrical equipment
according to the time set by the user, the control object can be street lamp, neon light, advertising sign
lamp, production equipment, radio and television and so on all need to regularly turn on and off the
power supply equipment and Household appliances.

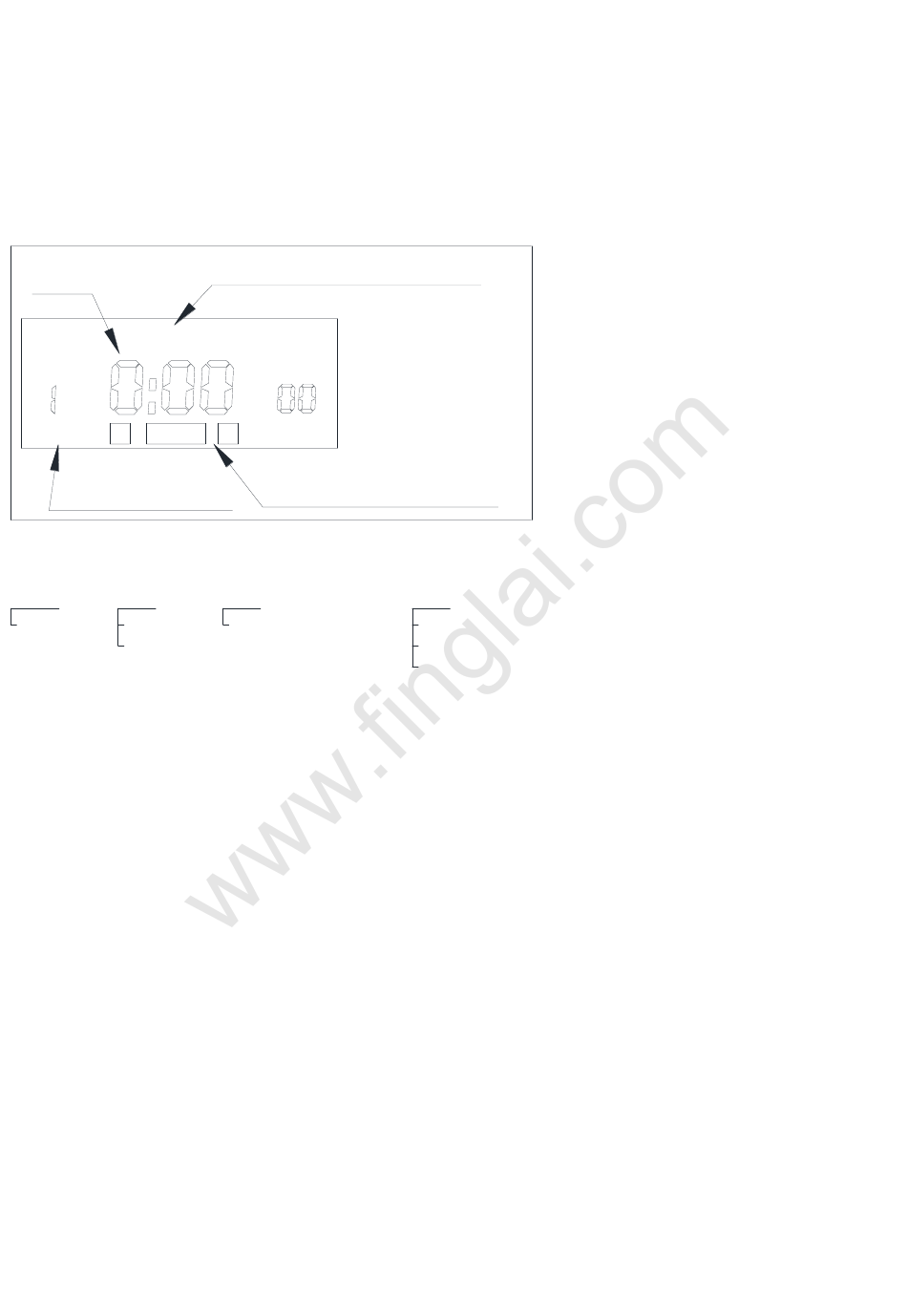

H Min S
一 二 三
四
次开 次关
开 自动运行
Times/ON Times/OFF

▇ Model number legend

KG 316
Switch Design
code

▇ Performance indicators

1. Commonly used products working voltage: 220VAC / 50-60HZ
2. Customized voltage range: 12-48VDC / 110-380VAC
3. Maximum contact allowable current: 10A or 25A (resistive)
4. Power consumption: 1.5W
5. Time control range: 1min-168h
6. Timing error: less than 2s per day
7. Ambient temperature: -15 ℃ -45 ℃
8. Ambient humidity: ≤ 95%
9. Dimensions: 120x70x51mm
10. Product net weight: A305G B175G

▇ The normal working conditions and installation conditions

1. Ambient air temperature is 25℃-40℃, and the average temperature does not exceed 35 ℃ in 24h.
2. The altitude does not exceed 2000mm
3. Ambient humidity can't exceed 90% when the temperature is less than 40 ℃, If the temperature is
lower, can allow higher relative humidity, when it is condensation by temperature changes, please do
special measures.
4. In the absence of explosive media, and the media is not enough to corrode the metal and damage
the insulation of the gas and the existence of serious conductive dust place.
5. Beside the rain-proof or snow-proof equipment and not filled with water vapor.
6. Where there is no shaking, shock and vibration.
7. Transport and storage conditions 25 ℃ -40 ℃.
KG316T time switch manual
Week: MO TU WE TH FR SA SU
五 日
六
关
Selection of ON, Automatical,
OFF operation
T -
Time switch
C
Load current
C: 10A
A: 25A
