Quick manual
X
µT-Z7/Probe
ORAYA
Edition: 1.0.3 / October 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XORAYA µT-Z7 and is the answer not in the manual?

Questions and answers

Summary of Contents for X2E XORAYA µT-Z7

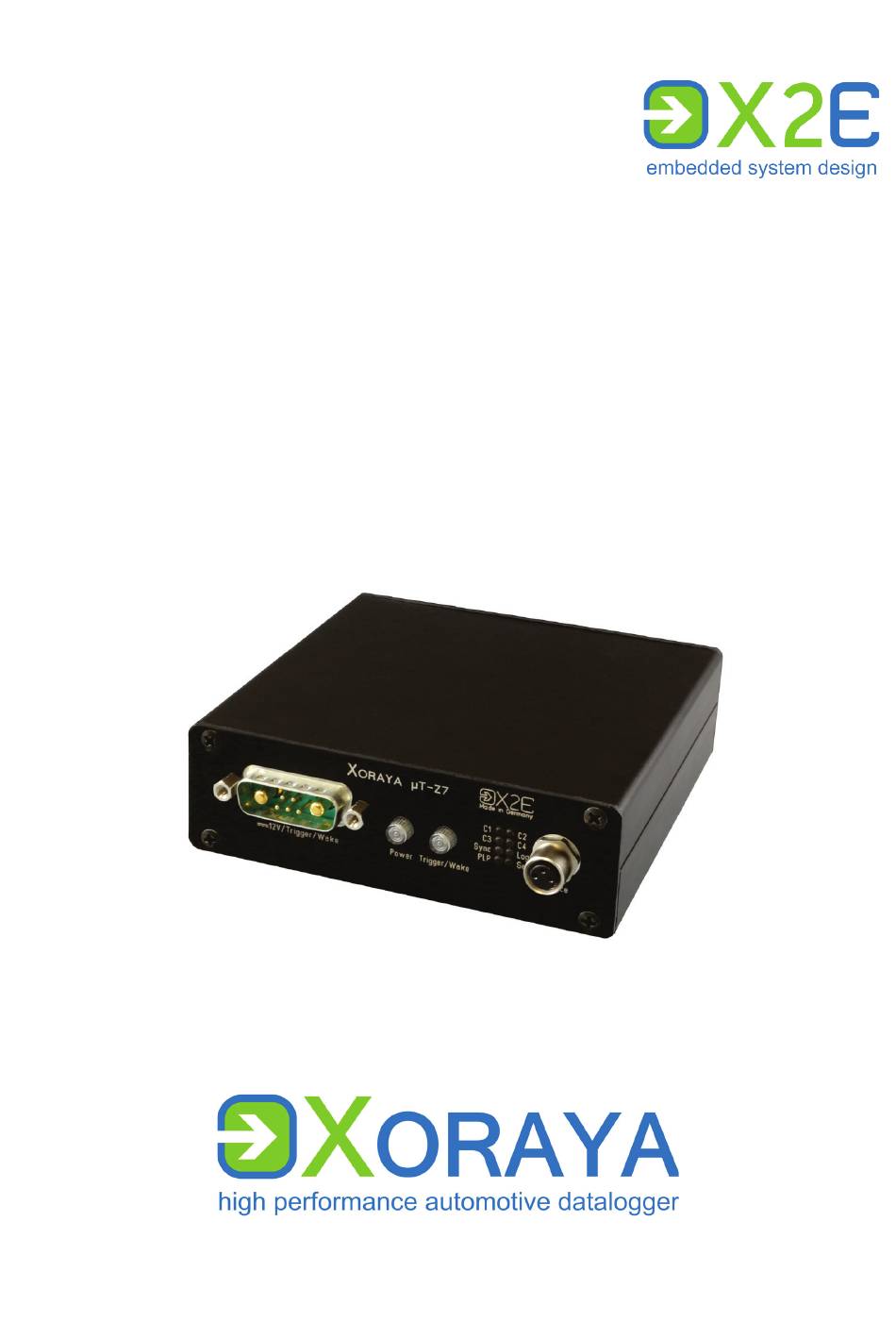

  • Page 1 Quick manual µT-Z7/Probe ORAYA Edition: 1.0.3 / October 2020...
  • Page 2 This quick manual is copyrighted; all customary rights reserved. Reproduction of this manual, even in part, is only allowed with permission of X2E GmbH. Offenders shall be liable to pay compensation and may be subject to prosecution. All product names and trademarks used in this manual are the property of their respective owners.
  • Page 3: Table Of Contents

    UICK MANUAL ABLE OF CONTENTS Table of contents User information ........................4 Commissioning ......................... 4 Suite ..........................6 ORAYA Connecting ....................6 Configuration .................... 6 3.2.1 Sink .................... 7 3.2.2 Probe ..................9 Data recording ..................10 3.3.1 Sink ..................10 3.3.2 Probe ..................
  • Page 4: User Information

    UICK MANUAL SER INFORMATION User information This quick manual describes how to configure and operate X2E’s probe devices (X µT-Z7 and X Probe) with the X Suite. Below, the ORAYA ORAYA ORAYA name probe is used uniformly for one of these devices.
  • Page 5 UICK MANUAL OMMISSIONING Interface and network connection:  Connect all data buses to be monitored to the log interface (H).  Connect one of the probe’s LAN host ports (F) to a datalogger, for example a X ORAYA  Connect one of the datalogger’s other LAN host ports to a switch or directly to a PC.
  • Page 6: Xoraya Suite

    UICK MANUAL ORAYA UITE Suite ORAYA This chapter describes the characteristic features for the configuration and operation of the probe. For a detailed description of all X Suite tools, ORAYA refer to the datalogger instruction manuals. Connecting  Connect the probe to sink and PC. ( Commissioning) ...
  • Page 7: Sink

    The ID is used when recording to match the data with a device. The sink is always 0.  Select the Mode of the sink: Master.  Select the Protocol: X2E internal. PLP (Probe Logger Protocol) is currently not yet supported.  Optionally, set a VLan...
  • Page 8 UICK MANUAL ORAYA UITE  settings: For time synchronisation, set a Domain that is unique for sinks in this network to avoid conflicts. For the Interface setting, there are currently no options available.  Set a Port (3). When choosing a port number, avoid conflicts with network services used by the operating system.
  • Page 9: Probe

     Set a custom Device ID (except 0).  Select the Protocol: X2E internal.  As Target, set the network address and port of the sink. If a static network connection for the DLN communication is explicitly set in the sink, then enter this address (category DLN).
  • Page 10: Data Recording

    UICK MANUAL ORAYA UITE Data recording By default, the probe transfers the recorded log data to the sink, where all data of the current measurement received from all connected devices is collected. The data is then either transferred to the PC or directly saved on the storage medium of the sink.
  • Page 11: Probe

    UICK MANUAL ORAYA UITE 3.3.2 Probe This step is not necessary if Synchronize logging state is enabled for both sink and probe. The sink then triggers probe recording automatically.  Connect to the probe.  Click Start Probe logging (2). ...
  • Page 12: Statistics

    UICK MANUAL ORAYA UITE Statistics The X Suite allows separate monitoring of the sink itself and of all ORAYA connected probes. 3.4.1 System signals in online-logging tool 3.4.2 Statistic tool The assigned ID is used to differentiate devices. By clicking on the panel in the upper area, the statistics for this device are highlighted below.
  • Page 13: Pin Assignments

    UICK MANUAL IN ASSIGNMENTS Pin assignments The following tables contain the pin assignments of the log interface in the currently available configurations. Figures show the external view of the contacts on the probe. 4x CAN FD Function Connector type: 3M, 10220-5212PL CAN 1 P CAN 1 N CAN 2 P...
  • Page 14: Can Fd, 4X Lin, 2X Flexray

    UICK MANUAL IN ASSIGNMENTS 4x CAN FD, 4x LIN, 2x FlexRay Function FR A P FR A N Connector type: 3M, 10220-5212PL CAN 1 P CAN 1 N CAN 2 P CAN 2 N CAN 3 P CAN 3 N FR B P FR B N LIN VBAT...
  • Page 16 X2E GmbH Jahnstrasse 2b 76870 Kandel GERMANY Phone +49 7275 9143 200 +49 7275 9143 109 E-mail xoraya@x2e.de Internet http://www.x2e.de Wiki http://wiki.x2e.de...
