SRTP300 Instruction Manual
Wireless tire pressure and temperature monitoring system

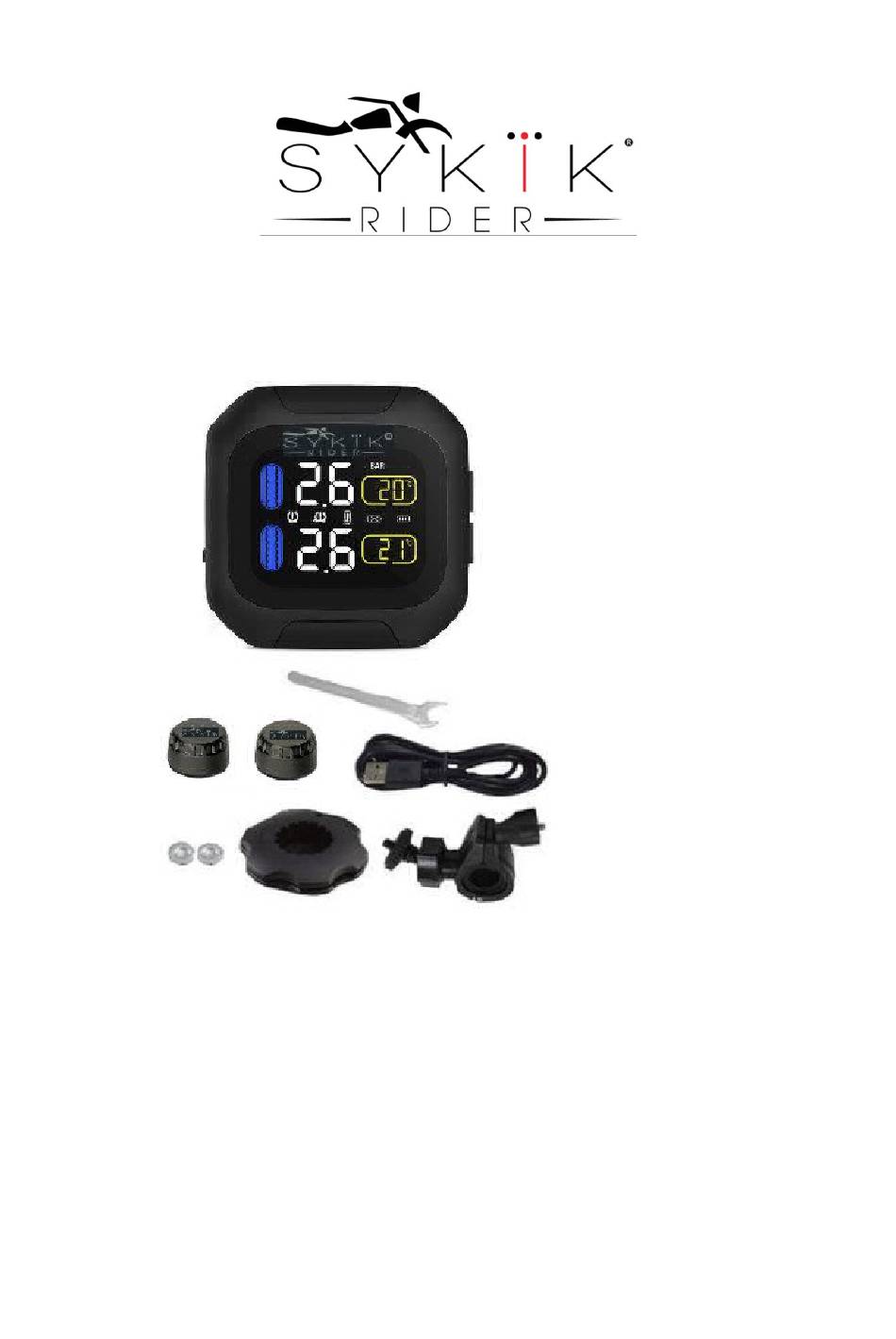

What is in the box
In the box you will find the following:

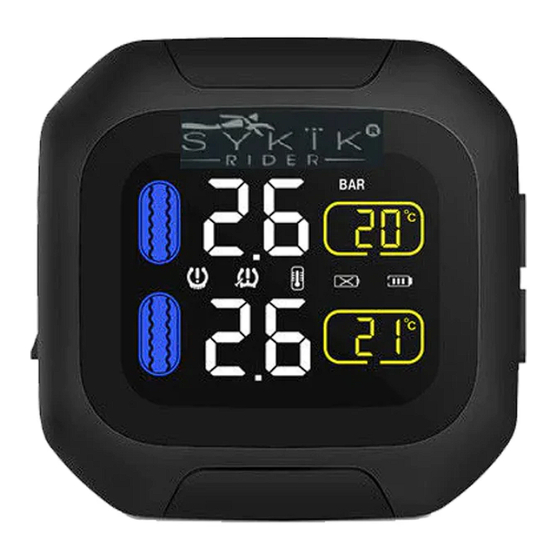

Waterproof main unit with multi-color display
Set of tire sensors
Set of luck-nuts
Luck-nut tool
Handlebar mount
USB charging cord
Battery changing tool
Instruction manual
Advertisement
Summary of Contents for SYKIK SRTP300
- Page 1 SRTP300 Instruction Manual Wireless tire pressure and temperature monitoring system What is in the box In the box you will find the following: Waterproof main unit with multi-color display Set of tire sensors Set of luck-nuts Luck-nut tool Handlebar mount...
- Page 2 Installation of external sensor 1. Screw on the luck-nut to the metal tire stem. 2. Place the sensor on the stem and tighten it. 3. Tighten the lock-nut counter clockwise, to hold the sensor 4. Using the provided luck-nut tool, tighten the luck-nut counter clockwise...
-
Page 3: Turning The Unit On Or Off
Turning the unit on or off: Press and hold “＜” for 3s to 6s to turn the monitor on or off. Display icons:... - Page 4 Function Default settings High pressure 44 PSI (3.0 Bar) Low pressure 29 PSI (2.0 BAR) 65 ℃ ℉ ℃ High temperature 149 High Pressure Alert: When the pressure of any tire is higher than the pre-defined value (44 PSI), the high pressure icon will flash with an audible alarm.
- Page 5 Low Pressure Alert: When the pressure of any tire is lower than the pre-defined value (29 PSI), the low pressure icon will flash with an audible alarm. High Temperature Alert: ℉ When the temperature of any tire is higher than the pre-defined value (149 ), the high temperature icon will flash with an audible alarm.
-
Page 6: Parameter Setting
Parameter setting ① Maximum pressure alarm value can be set as high as 87PSI (6 BAR). ② Maximum pressure range can be displayed 99 PSI (up to 8 BAR). High Pressure Setting: 1- Press and hold SET button to enter settings. 2- Press ＜... - Page 7 Pairing Sensors: 1- Press SET button five times continuously to enter pairing mode, as bellow 2- Press ＜ to choose the tire you wish to pair. Pairing tire will start to flash 3- For External sensors: Tighten the sensor For Internal sensors : Inflate the tire 4- The monitor will look for the sensor and displays the pressure and temperature.
- Page 8 5- Press SET to saves. 6- Press and hold SET button about 3s to save and exit. Temperature Unit Setting: 1- Press and hold SET button to enter set up. 2- Press ＜ to choose " ℃℉ "as below, 3- Press SET to setup temperature unit. 4- Press ＜...
- Page 9 Replace battery of external sensor Caution＜Sensor battery has been installed before delivery. Please do not disassemble unless the battery has to be replaced. 1- Remove the safety gasket. 2. Place the sensor into the battery changing tool.
- Page 10 3- Use battery changing tool to unscrew the sensor case. 4- Remove the battery and replace with a fresh battery. 5- Use the battery changing tool to close the sensor 6- Replace the safety gasket.
Need help?
Do you have a question about the SRTP300 and is the answer not in the manual?
Questions and answers
How do I change from Bar to PSI?
To change the measurement from Bar to PSI on the SYKIK SRTP300:
1. Turn on the unit by pressing and holding the lower button.
2. When the display is on, press and hold the upper button for a few seconds to enter settings.
3. The screen will show “BAR-PSI”.
4. Press the lower button once or twice to switch to PSI only.
5. Once PSI is flashing alone, press and hold the upper button to save and exit settings.
This answer is automatically generated
What battery does it use ?
The SYKIK SRTP300 uses a replaceable battery in the external sensor. The specific battery type is not mentioned in the context. However, it is replaceable using a battery changing tool. The display unit also has a battery, but replacing it is not recommended because it may compromise the waterproof seal.
This answer is automatically generated

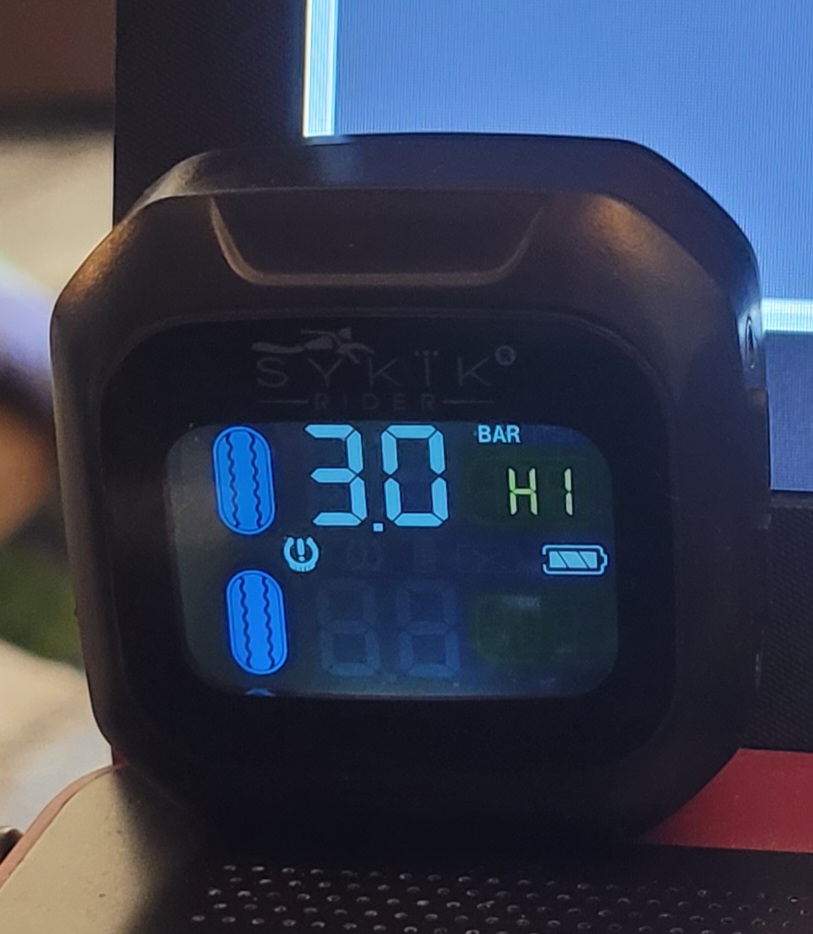

SYKIK SRTP300 Unit is stuck on BAR and C°. I can get it to blink BAR and PSI as well as C° and F°. However, it will not switch to PSI and F°. The default is always BAR and C°. How do is reset to PSI and F°?
SYKIK Rider, SRTP-300 My unit shows Bar pressure and C temps. I have been unable to change it to PSI and F. It will blink both the Bar an PSI as well as C and F. However, it will not switch to PSI and F. How can I set it for the PSI and F
