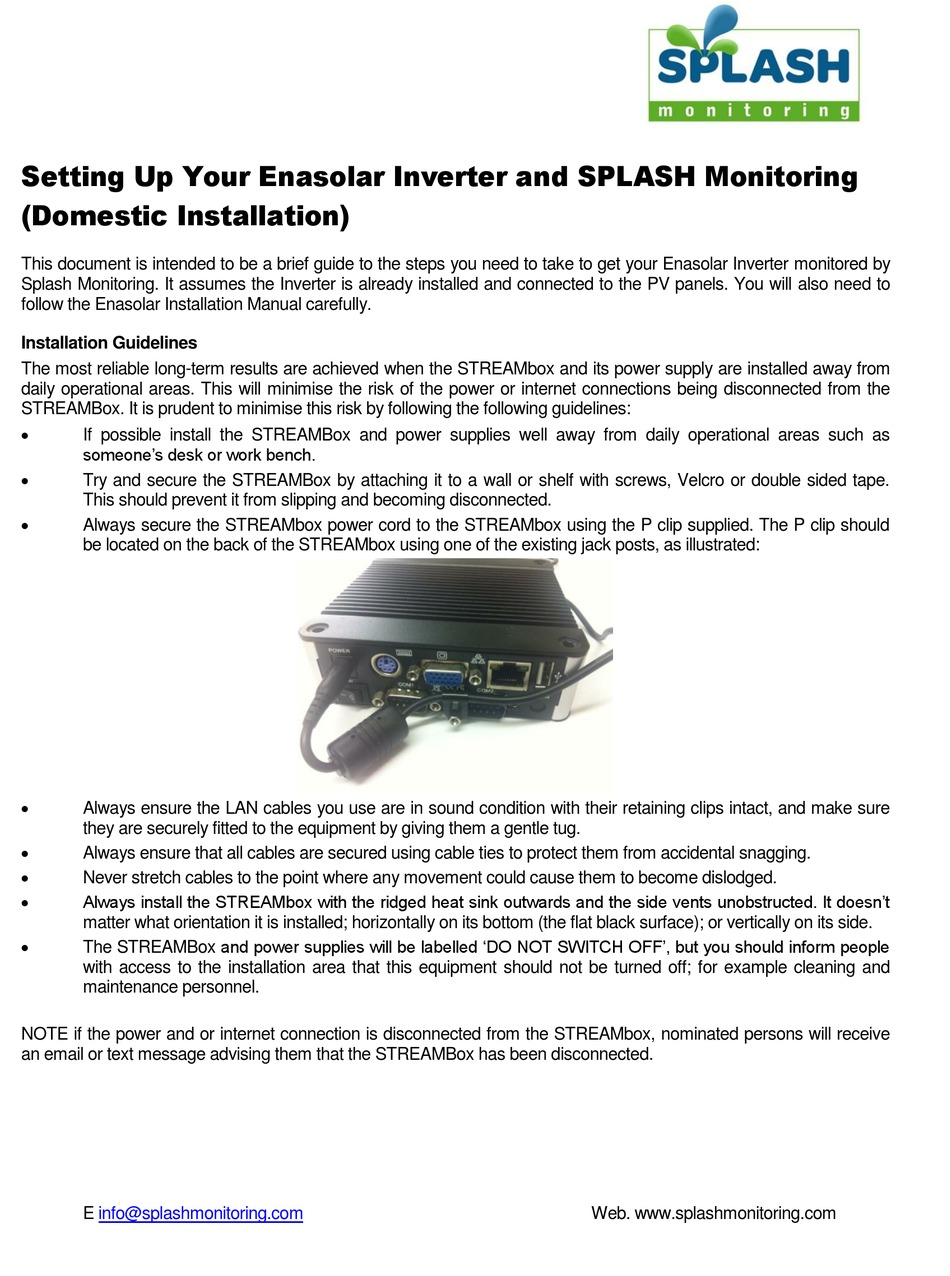

Setting Up Your Enasolar Inverter and SPLASH Monitoring
(Domestic Installation)
This document is intended to be a brief guide to the steps you need to take to get your Enasolar Inverter monitored by
Splash Monitoring. It assumes the Inverter is already installed and connected to the PV panels. You will also need to
follow the Enasolar Installation Manual carefully.

Installation Guidelines

The most reliable long-term results are achieved when the STREAMbox and its power supply are installed away from
daily operational areas. This will minimise the risk of the power or internet connections being disconnected from the
STREAMBox. It is prudent to minimise this risk by following the following guidelines:

If possible install the STREAMBox and power supplies well away from daily operational areas such as
someone's desk or work bench.

Try and secure the STREAMBox by attaching it to a wall or shelf with screws, Velcro or double sided tape.
This should prevent it from slipping and becoming disconnected.

Always secure the STREAMbox power cord to the STREAMbox using the P clip supplied. The P clip should
be located on the back of the STREAMbox using one of the existing jack posts, as illustrated:

Always ensure the LAN cables you use are in sound condition with their retaining clips intact, and make sure
they are securely fitted to the equipment by giving them a gentle tug.

Always ensure that all cables are secured using cable ties to protect them from accidental snagging.

Never stretch cables to the point where any movement could cause them to become dislodged.

Always install the STREAMbox with the ridged heat sink outwards and the side vents unobstructed. It doesn't
matter what orientation it is installed; horizontally on its bottom (the flat black surface); or vertically on its side.

The STREAMBox and power supplies will be labelled 'DO NOT SWITCH OFF', but you should inform people
with access to the installation area that this equipment should not be turned off; for example cleaning and
maintenance personnel.
NOTE if the power and or internet connection is disconnected from the STREAMbox, nominated persons will receive
an email or text message advising them that the STREAMBox has been disconnected.
