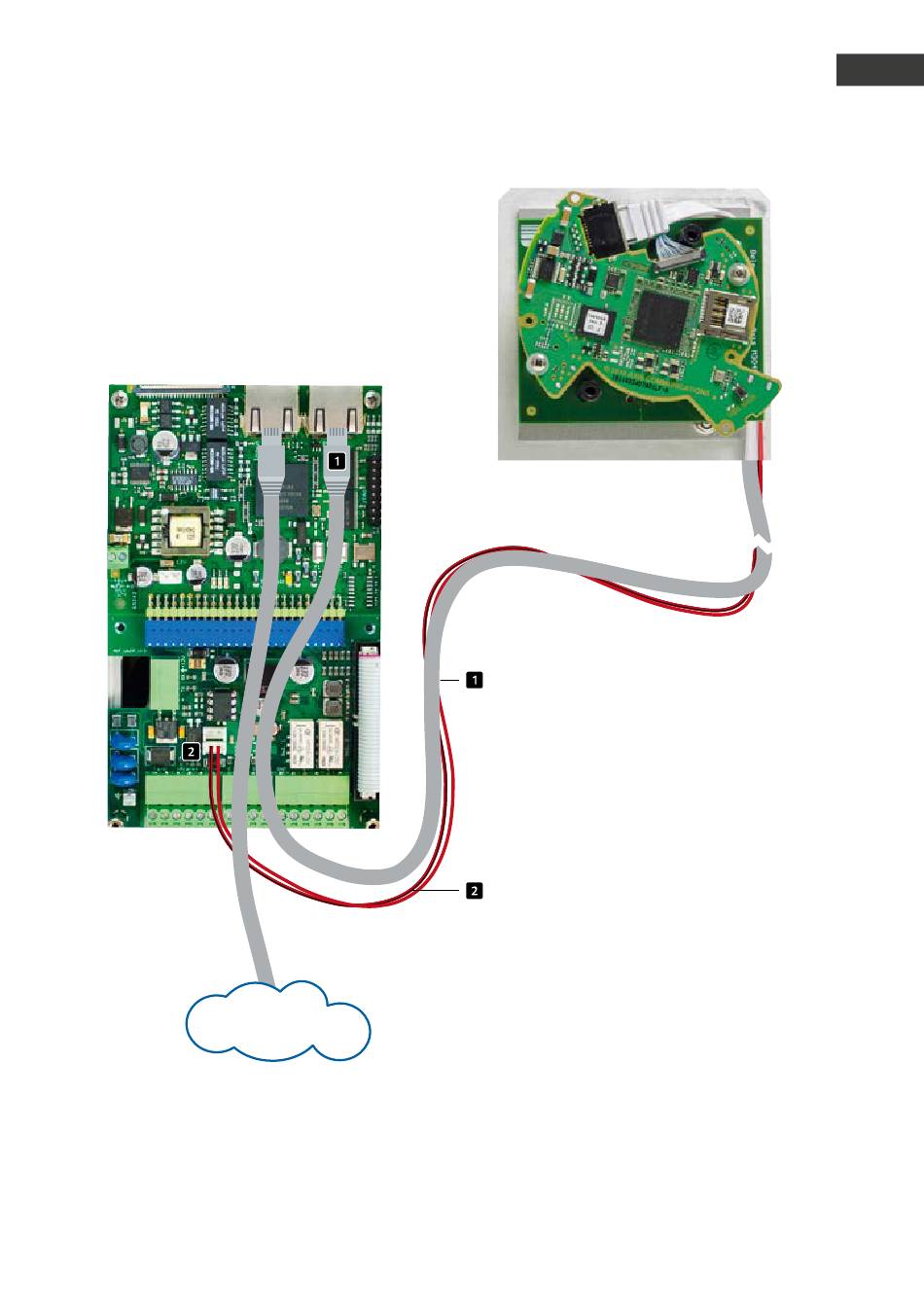

Camera LED illumination permanently turned on
IP basic electronics
*
IP camera may only be operated with cover. Operation without the camera cover will damage the
camera. When opening the camera cover for service purposes, only loosen the two outer screws and
carefully lift off the camera cover. Heat sink in cover connected to camera.
www.behnke-online.com
Input Output
LAN
IP camera Instructions
Camera module, rear view
Network cable (including PoE to camera)
The illumination power supply cable
is directly connected to the SIP door inter-
com station here. It can also be connected to
a labelling unit (12 V). For the labelling unit
connection see the SIP door intercom station
manual
GB
