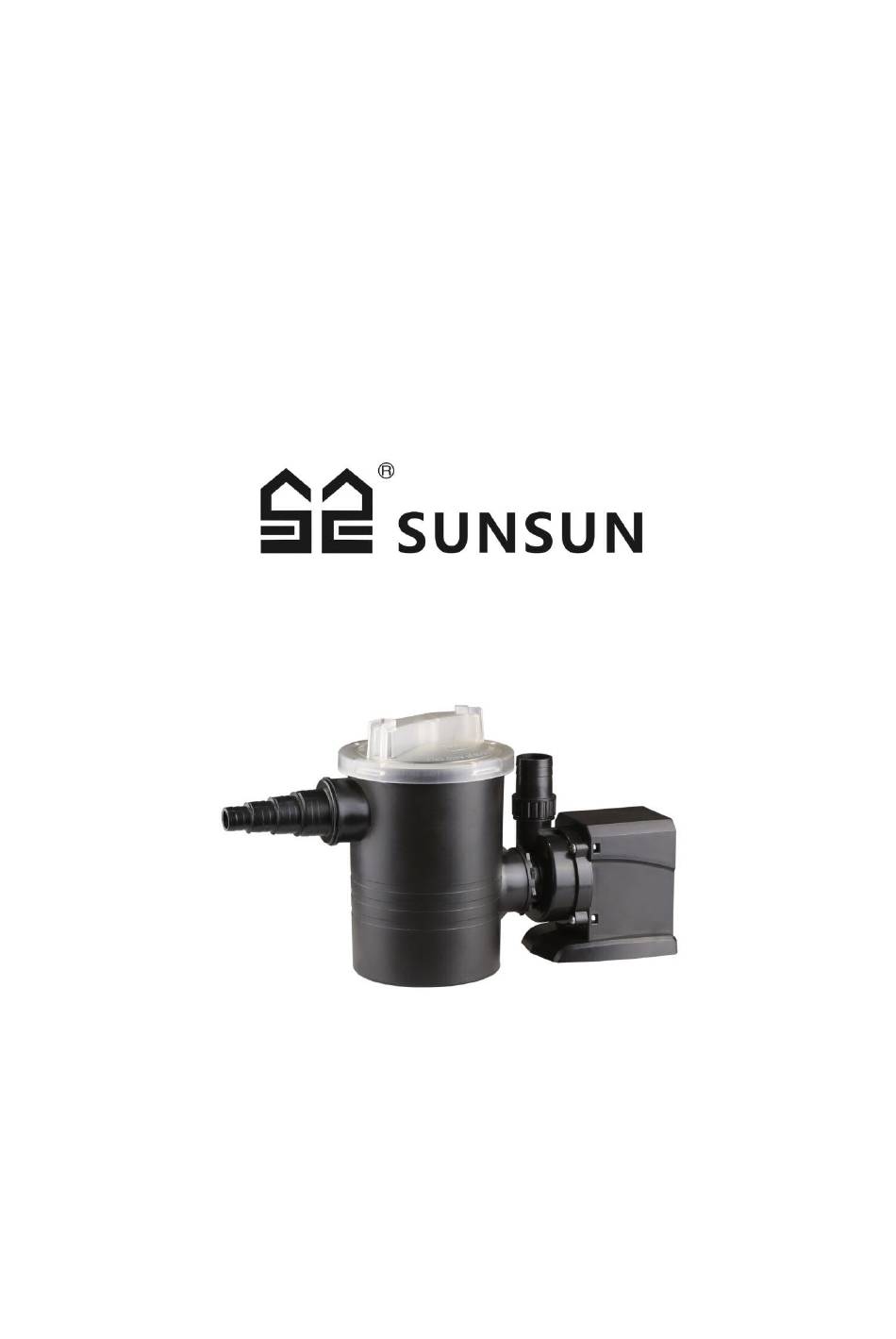

Operation Manual
Swimming Pool Pump MAX-ECO
CPP-5000F, CPP-6000F, CPP-7000F
CPP-8000F, CPP-10000F, CPP-12000F
CPP-14000F, CPP-16000F
50960–50963, 50968–50971
Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps and technical data can differ insignific -
antly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.
Advertisement
Related Manuals for SunSun MAX-ECO CPP-5000F
Summary of Contents for SunSun MAX-ECO CPP-5000F
- Page 1 Operation Manual Swimming Pool Pump MAX-ECO CPP-5000F, CPP-6000F, CPP-7000F CPP-8000F, CPP-10000F, CPP-12000F CPP-14000F, CPP-16000F 50960–50963, 50968–50971 Illustration similar, may vary depending on model Read and follow the operating instructions and safety information before using for the first time. Technical changes reserved! Due to further developments, illustrations, functioning steps and technical data can differ insignific - antly.
- Page 2 The information contained in this document may alter at any time without previous notice. It is prohib- ited to copy or spread any parts of this document in any way without prior written allowance. All rights reserved. The WilTec Wildanger Technik GmbH cannot be held accountable for any possible mistakes in this operating manual, nor in the diagrams and figures shown.
- Page 3 Introduction Thank you for purchasing this quality product. To minimize the risk of injury we urge that our cli- ents take some basic safety precautions when using this device. Please read the operation in- structions carefully and make sure you have understood its content. Keep these operation instructions safe.
- Page 4 WARNING: Read all safety warnings and instructions. Any failure due to disrespect of the safety instructions may result in electric shock, fire and / or serious injury. Keep all warnings and instructions for the future. Resistance During continuous operation, the temperature of the liquid transported should not exceed +35°C. The delivery of aggressive liquids (such as acids, alkalis, silo seepage, etc.) as well as liquids contain - ing abrasive materials (sand etc.) is to be avoided.
- Page 5 Do not carry or pull the pump by the connecting cord. • Keep the power plug and all connecting parts dry. • The pump may not be operated if the cable or the housing are defective. • If the power cord of the pump is damaged then it must be replaced by the manufacturer of his •...
- Page 6 Explosion view and part list № Name № Name № Name Upper cover Connecting flange bearing O-ring 1 screw Bearing seat Filter sponge O-ring 3 Press nut Filter basket Pump housing Motor body inlet outlet Rubber feet Filter box Rotor sub-assembly O-ring 2 O-ring 4 ©...
- Page 7 Technical specifications Item Power Connec- Model Voltage H-max (m) Q-max (ℓ/h) number tions (mm) 50960 CPP-5000F 3500 50961 CPP-6000F 4000 19/25/33 (¾”/1”/1¼”) 50962 CPP-7000F 4500 50963 CPP-8000F 5000 220–240 V 50 Hz 50968 CPP-10000F 7500 50969 CPP-12000F 8000 25/33/38/51 (¾”–2”) 50970 CPP-14000F 8500 50971 CPP-16000F...
- Page 8 Cleaning instructions 1. Turn the cover in the direction as indicated by the arrow (pic. 1). 2. Clean and change the sponge and draining skep after having taken them out (pic. 2). 3. Separate the filter body and motor in the direction as indicated by the arrow (pic. 3). 4.
-
Page 9: Disposal Regulations
Disposal regulations EU guidelines regarding the disposal of scrap electric appliances (WEEE, 2012/19/EU) were imple- mented in the law related to electrical and electronic equipment and appliances. All WilTec electric devices that fall under the WEEE regulations are labelled with the crossed-out wheeled waste bin logo. -
Page 10: Eg-Konformitätserklärung
EG-Konformitätserklärung Declaration of Conformity / Déclaration de Conformité (gemäß den Richtlinien 2014/35/EU NSR-Richtlinie) Reference Nummer: 3185251.01AOC Firma / Company / Société WilTec Wildanger Technik GmbH Koenigsbenden 12 52249 Eschweiler, Deutschland erklärt, dass das Produkt: Gartenpumpe, Teichpumpe Type: CPP-5000F, CPP-6000F, CPP-7000F, CPP-8000F, CPP-10000F, CPP-12000F, CPP-14000F, CPP-16000F, Artikel: 50960, 50961, 50962, 50963,...
