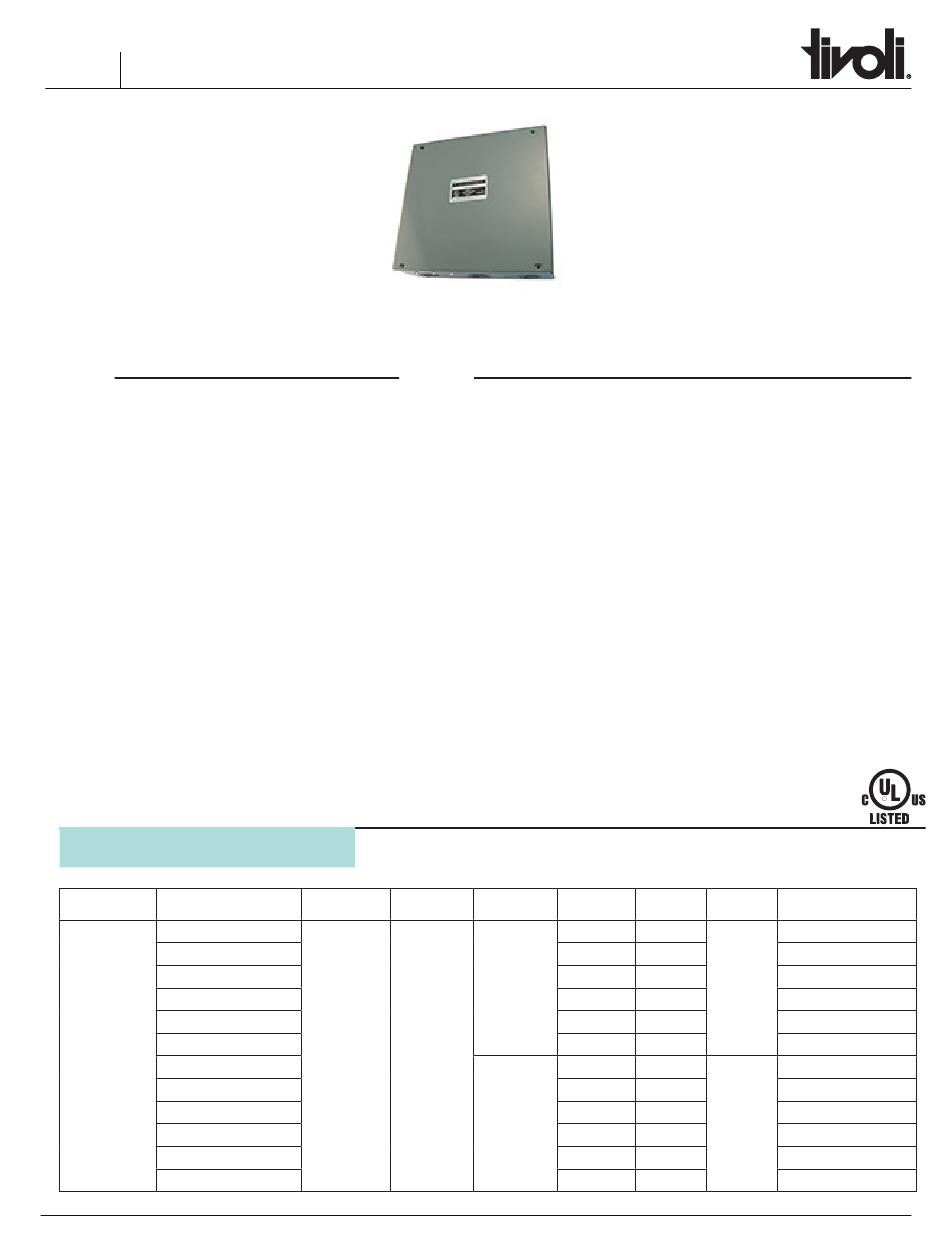

ADNM DTV NEMA 3 (TV Studio Camera Flicker Free)
Project:

Features

• Switching electronic power supply
• Constant Voltage
• Universal input voltage: 100-277V AC
• Single and multiple 12V or 24V DC outputs
• NEMA 3R Rain-tight enclosure for wet locations
• 5 year warranty

Environmental

• MTBF: 100,000 hrs. at full load and 25°C
• Operating temperature: -40°C - +80°C (Full load)
• Storage temperature: -65°C - +90°C
• Heat dissipation: Convection
Order Specifi cation Guide
DESCRIPTION CAT NO
ADNM-60-1-5-12-DTV
ADNM-150-2-5-12-DTV
ADNM-240-4-5-12-DTV
ADNM-60-1-5-12-DTVC
ADNM-150-2-5-12-DTVC
ADNM-240-4-5-12-DTVC
ADNM Series
Class 2
ADNM-120-1-4-24-DTV
ADNM-240-2-4-24-DTV
ADNM-320-3-4-24-DTV
ADNM-120-1-4-24-DTVC
ADNM-240-2-4-24-DTVC
ADNM-320-3-4-24-DTVC
Tivoli, LLC. reserves the right to modify this specifi cation without prior notice.
Copyright © Tivoli 07/08/20
T :
YPE
PRIMARY SECONDARY
APPLICATION
VOLTAGE
INDOOR / 100-277V AC
OUTDOOR 5o⁄6 Hz
Page 1 of 6

Mechanical Specification

• Steel enclosure
• Bracket mount and ½" knockouts for conduit
and fittings

Electrical Data

• Secondary circuit maximum protection for
Class 2 circuits: 5A for 12V DC,
4A for 24V DC
• Voltage regulated
• Voltage regulated +/-3%
• Auto overload / short circuit / over voltage
protection
CIRCUIT
MAX LOAD
VOLTAGE BREAKERS
1 60W
2 2x60W
4 4x60W
12V DC
1 60W
2 2x60W
4 4x60W
1 96W
2 2x96W
3 3x96W
24V DC
1 96W
2 2x96W
3 3x96W
