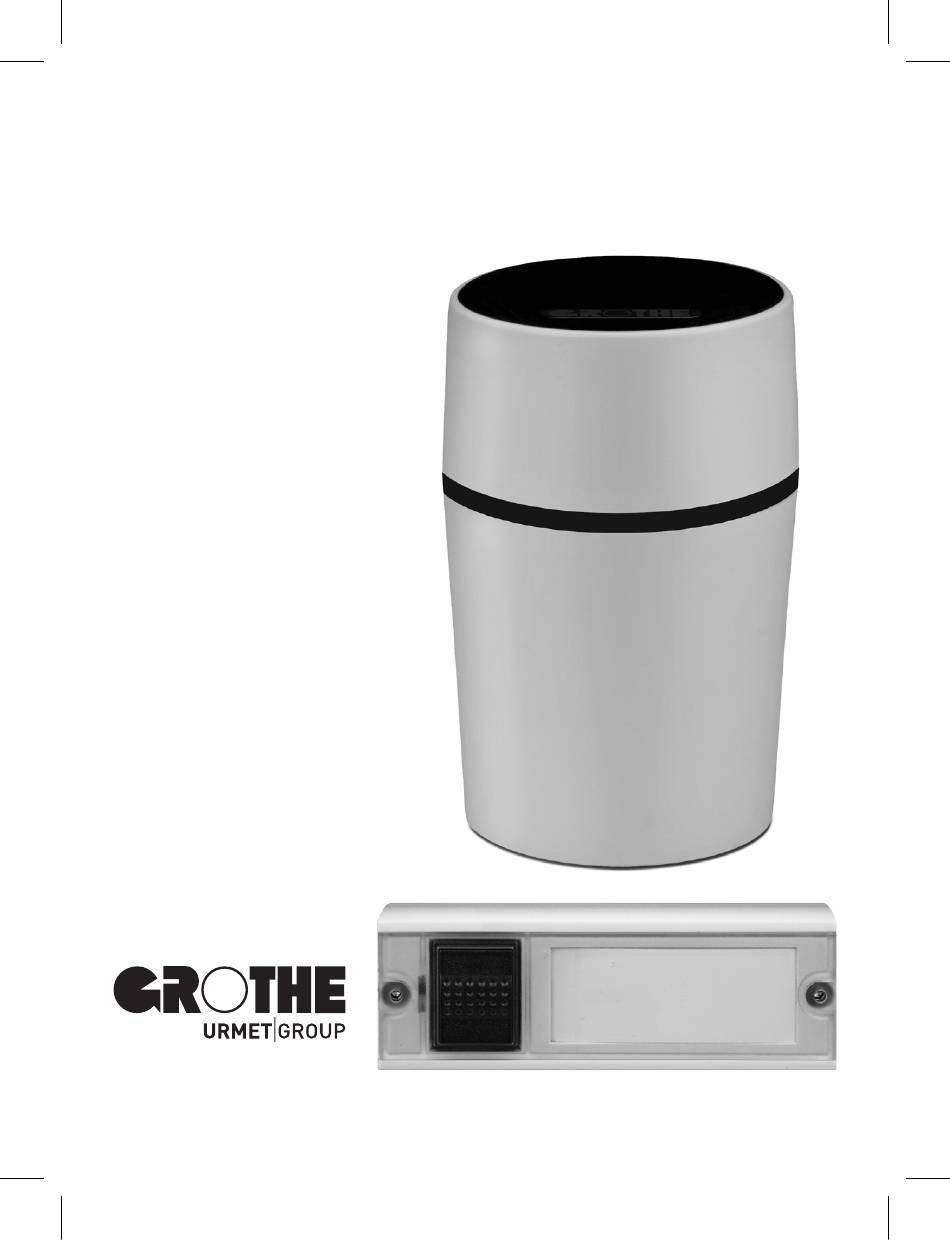

- Page 1 Installation and Operating Instructions CALIMA 200 Series Wireless Chime Kit Kit consisting of a wireless chime with LED ring and wireless bell button...
-
Page 2: Guarantee
Guarantee / Package contents / Materials required Dear Customer, With this device you have acquired a quality product which we have developed and produced for you with the greatest possible care and to the highest standards. The statutory guarantee period applies. Defects caused by improper handling, misuse or disregard of the installation and operating instructions are excluded from this guarantee. -
Page 3: Intended Use
Safety instructions / Cleaning Do not expose the wireless chime to dripping or splashing liquid! Do not place any vessels filled with liquid on it! Do not cover it with objects or blankets, curtains, etc. and protect it from direct sunlight and naked flames! Do not expose the batteries in the wireless bell button to excessive heat (e.g. -
Page 4: Table Of Contents
Table of Contents Initial information: • Guarantee • Package contents • What else you need • Alternative fixing option • Intended use • Safety instructions • Cleaning CALIMA 200 – the highlights explained briefly Product overview First-time use of the wireless chime •... - Page 5 Table of Contents Coupling • Coupling the wireless chime and wireless bell button • Optional: Extending by adding further wireless bell buttons / wireless chimes • Deleting the coupling between wireless chime and wireless bell button Optional: Using the alarm function (only with MISTRAL SE03.1 wireless bell button) •...
-
Page 6: X C Alima 200 - The Highlights Explained Briefly
x C ALIMA 200 – the highlights explained briefly The wireless chime kit is made up of a wireless chime and a wireless bell button. The wireless chime can be installed in any place in the house or, for example, on the patio –... -
Page 7: Product Overview
CALIMA 200 wireless chime kit product overview Loudspeaker Battery compartment cover Battery compartment Battery holder Screws Button Nameplate... -
Page 8: Inserting The Batteries
First-time use / starting up – wireless chime Before using for the first time, you only have to insert the batteries into the wireless chime and wireless bell button and mount the wireless bell button. Simply install the wireless chime in the required place. The batteries required are not included. - Page 9 First-time use / starting up – wireless chime Remove the battery holder from the Insert 4 x 1.5 V (AA type) batteries into the battery holder. Note the chime. polarity. Please note: • The contact springs on the battery holder must always be positioned where “+”...
-
Page 10: Mounting, Inserting The Batteries, Writing On The Nameplate
First-time use / starting up – wireless bell button Wireless bell button: Mount, insert batteries, write on nameplate Undo screws Use the Allen key to undo the screws in the cover of the wireless bell button, and then remove the top half. Insert 2 x 1.5 V (AAA type) batteries into the bottom part of the wireless bell button. - Page 11 First-time use / starting up – wireless bell button Note: Where possible, do not mount the wireless bell button on metal parts, as this reduces the range significantly. Mounting holes Use the screws supplied to fix the bottom part of the wireless bell button through the mounting holes and onto the wall.
-
Page 12: Setting The Melody
Individual settings – melody The wireless chime is set and operated by 2 buttons: • Selection button (left) • Menu button (right) The voice output of the wireless chime signals the respective status of the settings. Press the wireless bell button, that corresponds to the melody that you want to set. - Page 13 Individual settings – melody FLASHES BLUE Then, press the Menu button on The LED ring fl ashes blue as the wireless chime in its normal confi rmation. state once. From now on, you hear the last played melody when the wireless SETTING FINISHED bell button is pressed.
-
Page 14: Setting The Colour Of The Led Ring
Individual settings – colour of the LED ring Press the wireless bell button to Then, press the Menu button in the set the colour of the LED ring on the normal state twice. wireless chime. 7 seconds after the last button was pressed you will hear “Setting SETTING FINISHED fi nished”. - Page 15 Individual settings – colour of the LED ring COLOUR SELECTION You will hear “Colour selection”. The Now, press the Select button until LED ring lights up with the currently the LED ring lights up in the required set colour. colour. Your selection is saved automatically if no button is pressed for 7 seconds.
-
Page 16: Setting The Volume
Individual settings – volume FLASHES GREEN Press the Menu button 3 times in the The LED ring fl ashes green as normal state. confi rmation. 7 seconds after the last button was pressed you will hear “Setting SETTING FINISHED fi nished”. From now on, the wireless chime signals with the last selected volume. - Page 17 Individual settings – volume VOLUME You will hear “Volume”. Press the Select button until the melody is played with the required volume. Your selection is saved automatically if no button is pressed for 7 seconds. Note: The volume of the wireless chime can always only be set the same for all wireless bell buttons used.
-
Page 18: Mute / Slumber Function
Mute / slumber function If you do not want to be disturbed, you can mute the wireless chime so that neither a melody is played, nor does the LED ring fl ash. The wireless chime signals neither visually nor acoustically. To do this, two options are available for you to choose from: •... -
Page 19: Switching Mute On/Off (For An Undefined Period)
Switching mute on / off (for an undefi ned period) FLASHES GREEN LIGHTS UP GREEN If mute is active, the LED ring fl ashes Press the Select button to end mute. green at regular intervals. As confi rmation, the LED ring lights up green while you press the button. -
Page 20: Switching On / Prematurely Ending Slumber Function For 1, 3, 9 Hours
Start / prematurely end slumber function for 1, 3, 9 hours FLASHES 2 – 4 X YELLOW Press the Select button 2, 3 or 4 As confi rmation, the LED ring then times at one second intervals in the fl ashes yellow 2 to 4 times, normal state to activate the slumber depending on how often you pressed function for 1, 3 or 9 hours. - Page 21 Start / prematurely end slumber function for 1, 3, 9 hours FLASHES YELLOW LIGHTS UP YELLOW While the slumber function is Press the Select button to end the active, the LED ring fl ashes yellow slumber function prematurely. As at regular intervals. confi rmation, the LED ring lights up yellow while you press the button.
-
Page 22: Coupling
Coupling the wireless chime and wireless bell button COUPLING FLASHES RED Press the Menu button in the normal The LED ring fl ashes red as state 4 times. confi rmation. You will hear “Coupling”. 1. SET MELODY 2. SETTING FINISHED Press the wireless bell button You will hear the set melody and within 30 seconds. -
Page 23: Wireless Chimes
Coupling the wireless chime and wireless bell button COUPLING ACTIVE LIGHTS UP RED Press the Select button within As confi rmation, the LED ring lights up 7 seconds. red and you will hear “Coupling active". At the end of the process the wireless chime returns to the normal state. Repeat the process to couple additional wireless bell buttons. -
Page 24: Deleting The Coupling Between Wireless Chime And Wireless Bell Button
Deleting the coupling between the wireless chime and bell buttons LED RING GOES OUT Press the Menu button in normal Press the Select button within state 4 times. 7 seconds and keep it pressed for 10 seconds. The LED ring goes out as confi rmation. -
Page 25: Optional: Using The Alarm Function
Optional: Using the alarm function The alarm function can be used in combination with the wireless bell button named below (not included in the kit) as a quickly ready, fl exible and above all mobile in-house help call system. In this case, the wireless chime acts as an alarm generator and the optional wireless bell button acts as a signal generator. -
Page 26: Acoustic Warning If Batteries Are Low
Warning if batteries are low Wireless chime: As soon as the batteries have to be replaced, the wireless chime issues a warning in the form of beep tones. Replace the batteries as described on p. 8/9. Note: Your individual settings (melody, colour of the LED ring, volume) are retained when you change the batteries or if the batteries are dead! If the batteries in the wireless chime are low, this is indicated by 2 beep tones after the melody. -
Page 27: Radio Range
Radio range The wireless chime kit has a maximum range of 250 m in the free field, provided that the wireless bell button is not mounted on metal. Note: Walls, doors, metal parts, etc. can reduce the range significantly. Overview: Reduction of range by different materials 100 %: Free field approx. -
Page 28: Possible Combinations / Networking
Possible combinations / networking The figures show some of the possible combinations. Among other things, each wireless chime can be activated individually or centrally. Central call One wireless bell button can activate any number of wireless chimes: One wireless bell button is Mel. -
Page 29: Technical Data
Technical data Radio chime Colour White Wall mounted Radio frequency 868.35 MHz Call differentiation Volume Max. 83 dB(A), depending on the melody Dimensions Ø 60 mm x 102 mm Power supply 4 x 1.5 V batteries (AA type) Temperature range 5 to 40 °C in dry rooms only Wireless bell button... -
Page 30: Troubleshooting And Help
x Error – Causes – Help 1. The LED of the wireless bell button flashes after the button is pressed, but the wireless chime does not respond. 1.1. No batteries are inserted into the wireless chime. Insert 4 x 1.5 V (AA type) batteries (see p. 8/9). 1.2. - Page 31 Error – Causes – Help 2. After the melody, you hear two bleep tones. 2.1. The batteries in the wireless chime do not have the required voltage. Standard rechargeable batteries often do not have the required voltage; only 1.2 V. Only use batteries or rechargeable batteries with 1.5 V voltage. 2.2.
-
Page 32: Declarations Of Conformity
Declarations of conformity / Disposal and recycling Declarations of conformity We hereby declare that this product is in compliance with the essential requirements and the other relevant provisions of Directive 2014/53/EU. Depending on the device type, tested to the respective relevant standards EN 3000220-2, EN 301489-1, EN 62368-1:2016, EN 55022, EN 50581 o RED Directive 2014/53/EU o EMC Directive 2014/30/EU... -
Page 33: Guarantee And Liability
GROTHE GmbH chimes are produced using modern technology and are sub- jected to one hundred percent quality control. If a defect nonetheless occurs in your device, GROTHE GmbH provides a guarantee with the following scope. 1.) Our guarantee includes subsequent improvement or replacement delivery of a device, if it verifiably has functional or material defects. -
Page 34: Quick-Start Guide
Quick-start guide FLASHES BLUE COLOUR SELECTION VOLUME FLASHES GREEN 1 2 2 COUPLING FLASHES RED... - Page 35 Quick-start guide MELODY SELECTION SETTING FINISHED Mute / Slumber function SETTING FINISHED Mute for 1 hour: Press Select button 2 times, SETTING FINISHED LED ring fl ashes yellow 2 times Mute for 3 hours: Press Select button 3 times, LED ring fl ashes yellow 3 times Mute for 9 hours: Press Select button 4 times, LED ring fl ashes yellow 4 times...
- Page 36 GROTHE GmbH Löhestraße 22 D- 53773 Hennef service@grothe.de www.grothe.de...
