Summary of Contents for AOMWAY HD588 V2

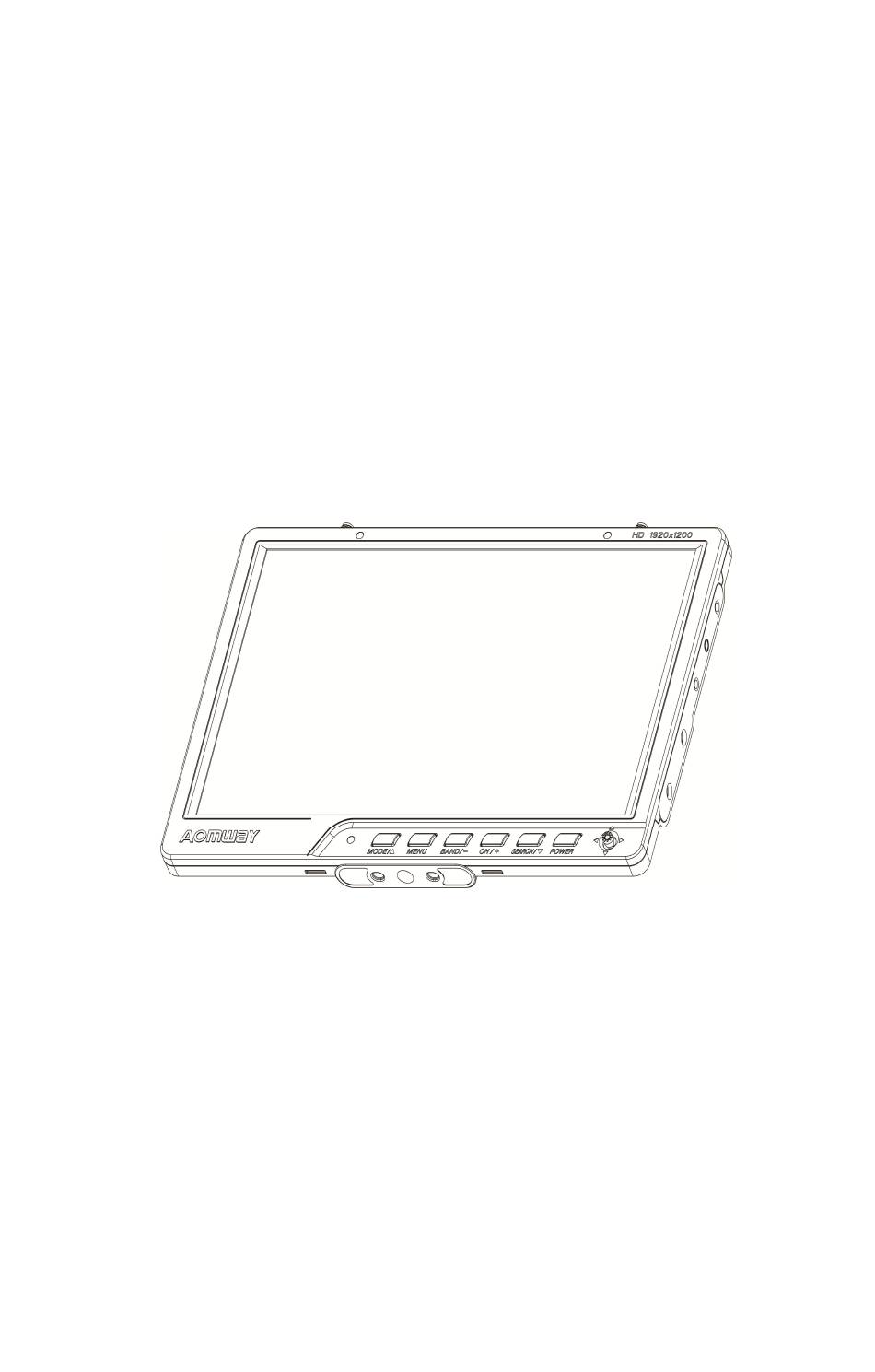

- Page 1 5G8 FPV Monitor HD588 WWW.AOMWAY.COM ________________________________________________________________________ Diversity FPV Monitor HD588 V2 5G8, 64CH 10.1＂Diversity FPV Monitor with DVR...
-
Page 2: Major Features
WWW.AOMWAY.COM ________________________________________________________________________ 1．AOMWAY-HD588 V2 Diversity Monitor HD588 V2 is the all-in-one monitor with DVR function that is elaborately designed for FPV purpose by presenting the most authentic image effect. It is well-equipped with 10.1＂display, LED backlight, dual built-in 64ch receiver modules with high sensitivity and integrated DVR is available for real-time recording. - Page 3 5G8 FPV Monitor HD588 WWW.AOMWAY.COM ________________________________________________________________________ Integrated DVR for real time recording and playback, TF card support to maximum 64G. Built-in DVR now can record both of RF and AV in video signal, auto save recording file when accidently power off the monitor.
- Page 4 5G8 FPV Monitor HD588 WWW.AOMWAY.COM ________________________________________________________________________ A. Front Control Panel Button Function： POWER: power on/off SEARCH/ ▽ ： auto search channel/scroll down/ multimedia return key CH/+: channel selection / increase FR/-: band selection / decrease MENU: open or close menu on screen / confirm key ...
- Page 5 5G8 FPV Monitor HD588 WWW.AOMWAY.COM ________________________________________________________________________ and finally back to A; after enter into a sub-menu, press “- ” to scroll up or decrease a selected value for setting. MENU: single press the button to open interface for setting up...
- Page 6 5G8 FPV Monitor HD588 WWW.AOMWAY.COM ________________________________________________________________________ play, single cycle”); ‘Menu’ as the confirm key, when playing a file, use ‘-’ and ‘+’ key to decrease and increase the volume. D. Right Side Port Illustration： 3.5mm AV in port for video signal input. (need to switch to AV IN mode).
- Page 7 5G8 FPV Monitor HD588 WWW.AOMWAY.COM ________________________________________________________________________ pause. TF card support to maximum 64G. LED light: indicate DVR is working or not, solid on for standby, flash for recording. HDMI_C type connector：support 1080p, 720p HDMI input. USB_A type connector: support firmware upgrade and multimedia application.
- Page 8 5G8 FPV Monitor HD588 WWW.AOMWAY.COM ________________________________________________________________________ Single press REC key to start recording, LED light will start flashing while the dot cursor is blinking at the bottom right corner of screen. Press REC key again to stop recording, LED light will stay solid on and the blinking dot will disappear from screen.
-
Page 9: System Upgrade
10.3V, buzzer will start beeping as a low voltage alarm. 5．System Upgrade: Based on customer’s actual need, AOMWAY will upgrade the system for better performance in the future; all firmware files will be published on online forum and our official website. -
Page 10: Package Contents
5G8 FPV Monitor HD588 WWW.AOMWAY.COM ________________________________________________________________________ plug USB-Key to your device port and then Power on→Enter into menu→Select System Upgrade→Press ‘FRE’ or ‘CH’ key to start→ System starts upgrade process (data reading on top left of screen and later auto shut down after upgrade completed). Reject your USB-Key and delete the upgrading file later. - Page 11 This monitor is made by PC plastic case and internal IPS screen, please avoid to stamp on, hard press or throw down the monitor. Suggest all ports on this monitor to connect with the original cables provided by AOMWAY for preventing from possible malfunction or damage.
