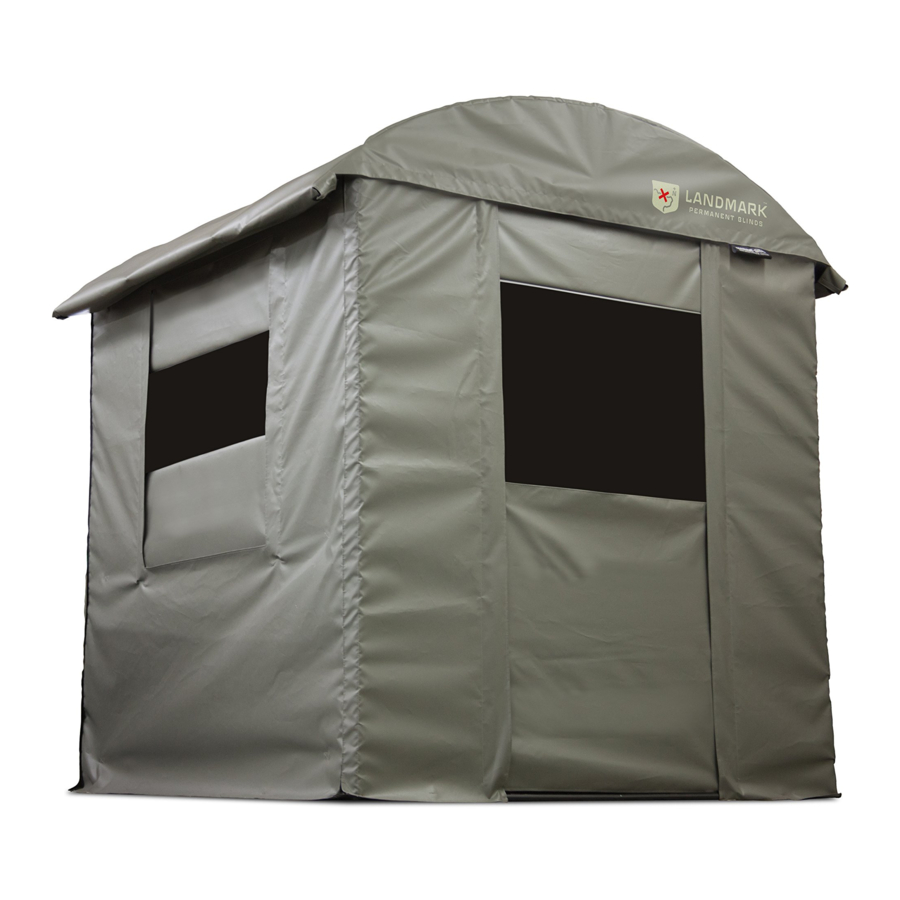

Operator's Manual
LM601
Landmark
™
Permanent Blind
GAS/OIL
RATIO
Assembly Time
50:1
2-4 Hours
P/N: 26742
REV2: 02/06/18
Get parts online at
© 2018 RETI
www.HuntRiversEdge.com
All Rights Reserved

Advertisement

loading
Need help?

Need help?

Do you have a question about the LANDMARK LM601 and is the answer not in the manual?

Questions and answers

Related Manuals for Rivers Edge LANDMARK LM601

Summary of Contents for Rivers Edge LANDMARK LM601

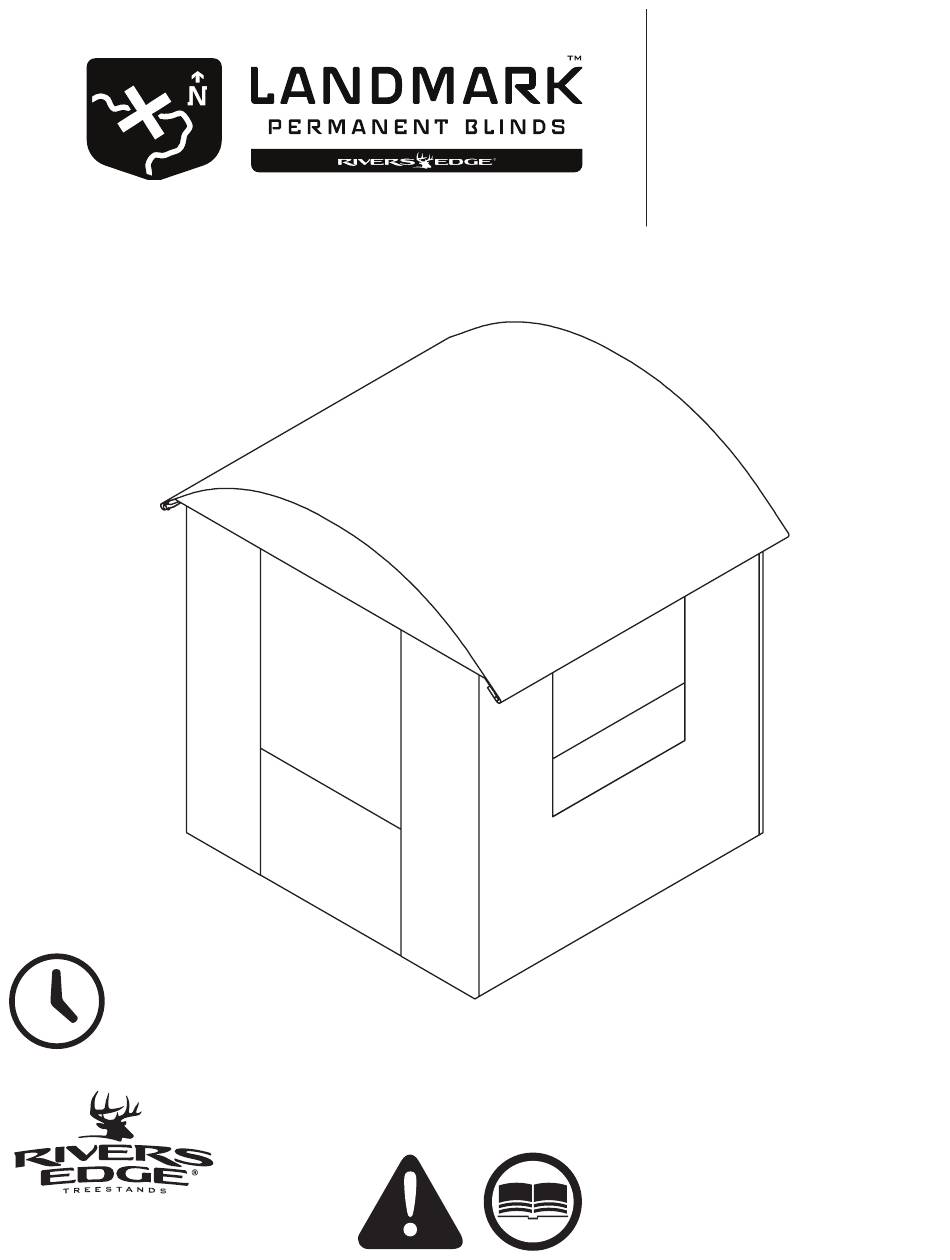

  • Page 1 Operator's Manual LM601 Landmark ™ Permanent Blind GAS/OIL RATIO Assembly Time 50:1 2-4 Hours P/N: 26742 REV2: 02/06/18 Get parts online at © 2018 RETI www.HuntRiversEdge.com All Rights Reserved...
  • Page 2 Operator's Manual Landmark Permanent Blind ™ INTRODUCTION Landmark™ Permanent Blinds are engineered with you the hunter in mind. We appreciate your purchase of one of our world class products. Follow these few simple instructions and your blind will provide you many years of trouble-free pleasure.
  • Page 3 Operator's Manual Landmark Permanent Blind ™ FRAME ASSEMBLY INSTRUCTIONS Tools needed – two 10mm wrenches IMPORTANT ASSEMBLY TIP: Do not tighten any nut and bolt combinations completely until all parts are assembled together! Finger tighten plus one turn of a wrench only! This will temporarily hold the lock nut on the bolt while helping alignment of all parts! After all parts are assembled together, all nut &...
  • Page 4 Operator's Manual Landmark Permanent Blind ™ FIGURE 2 5. Slide the four C1 poles into the HUB1 corners so that the snap buttons secure pieces together. SEE FIGURE 2. 6. Attach the four HUB2 corners to C1 poles so that the snap buttons secure pieces together. PAY ATTENTION TO ORIENTATION OF THE HUB2 CORNERS! SEE FIGURE 2.
  • Page 5 Operator's Manual Landmark Permanent Blind ™ FIGURE 3 7. Slide each of the three D2 poles into an E2 pole so that the snap button secures both pieces together. SEE FIGURE 3. 8. Slide the three assembled D2 and E2 poles into the HUB2 corners. These do not attach with snap buttons and will be secured together with hardware in a later step.
  • Page 6 Operator's Manual Landmark Permanent Blind ™ FIGURE 4 9. Attach each of the eight F1 poles to the bottom and middle tiers of the blind frame using two M6 x 35mm bolts (20) and M6 nuts (22). Make sure upper bolts are securing the D2 and E2 poles along with the F1 poles. SEE FIGURE 4. NOTE: PAY ATTENTION TO THE ORIENTATION OF THE BOLTS! THE HEAD OF THE BOLT MUST BE ON THE OUTSIDE OF THE FRAME.
  • Page 7 Operator's Manual Landmark Permanent Blind ™ Through Hole Closer to HUB3 than HUB2 Through Hole Closer to HUB3 than HUB2 FIGURE 5 10. Slide two G1 poles into HUB2 corners on the door side of the blind so that the snap buttons secure pieces together. It is critical that the G1 poles are oriented such that snap buttons are facing each other and each through hole is located closer to the HUB3 corners than the HUB2 corners.
  • Page 8 Operator's Manual Landmark Permanent Blind ™ Through Hole Closer to HUB3 than HUB2 Through Hole Closer to HUB3 than HUB2 FIGURE 6 12. Slide remaining two G1 poles into the other HUB2 corners so that snap button secures pieces together. It is critical that the G1 poles are oriented such that snap buttons are facing each other and each through hole is located closer to the HUB3 corners than the HUB2 corners.
  • Page 9 Operator's Manual Landmark Permanent Blind ™ FIGURE 7 14. Slide the two H1 poles into the two I1 poles so that snap buttons secure pieces together. SEE FIGURE 7. 15. Slide assembled H1 and I1 poles into HUB3 corners so that snap buttons secure pieces together. PAY ATTENTION TO THE ORIENTATION OF THE TABS ON H1 AND I1 POLES SO THAT THEY POINT UPWARD.
  • Page 10 Operator's Manual Landmark Permanent Blind ™ FIGURE 8 16. Slide remaining two A1 poles into remaining two B1 poles so that snap buttons secure pieces together. SEE FIGURE 8. 17. Slide assembled A1 and B1 poles into HUB3 corner so that snap buttons secure pieces together. You should now have the top tier frame of the blind assembled.
  • Page 11 Operator's Manual Landmark Permanent Blind ™ FIGURE 9 18. Attach the four J1 poles by one end to the horizontal through holes on the four assembled H1 and I1 poles using four M6 x 35mm bolts (20) and M6 nuts (22). Hand tighten only at this time. SEE FIGURE 9. 19.
  • Page 12 Operator's Manual Landmark Permanent Blind ™ FIGURE 10 20. Attach each set of J1 and K1 poles to the four G1 poles with four M6 x 35mm bolts (20) and M6 nuts (22). Make sure the J1 poles are between the K1 and G1 poles. Tighten all loose hardware at this time. DO NOT OVERTIGHTEN TO PREVENT CRUSHING TUBING! SEE FIGURE 10.
  • Page 13 Operator's Manual Landmark Permanent Blind ™ FIGURE 11 21. Slide the four L1 poles into the four M1 poles and set aside. SEE FIGURE 11. 22. Slide the three N1 poles into the three O1 poles so that snap buttons secure pieces together and set aside. 23.
  • Page 14 Operator's Manual Landmark Permanent Blind ™ FIGURE 12 24. Attach remaining two assembled N1 and O1 poles to the ends of the L1 and M1 poles using eight M6 x 30mm bolts (21) and M6 nuts (22). SEE FIGURE 12. NOTE: PAY ATTENTION TO THE ORIENTATION OF THE BOLTS! THE HEAD OF THE BOLT MUST BE ON THE TOP OF THE ROOF FRAME.
  • Page 15 Operator's Manual Landmark Permanent Blind ™ FIGURE 13 26. Attach assembled roof to blind structure using eight M6 x 35mm bolts (20) and M6 nuts (22). PAY ATTENTION TO THE ORIENTATION OF THE ROOF! THE ROOF ATTACHES ON THE INSIDE OF THE HUB3 CORNER TABS. SEE FIGURE 13. NOTE: TIGHTEN ANY LOOSE HARDWARE AT THIS TIME.
  • Page 16 Operator's Manual Landmark Permanent Blind ™ SKIN ASSEMBLY INSTRUCTIONS 1. Lay out all sewn components and familiarize yourself with them. Pay special attention to the back wall panel and the two side wall panels as they look similar at first glance but are different. The back wall panel has a hook and loop attachment strip sewn across the entire width of panel at the top.
  • Page 17 Operator's Manual Landmark Permanent Blind ™ FIGURE 16A FIGURE 16B FIGURE 16C Hook and Loop Strap D-ring Strap FIGURE 17 6. Hang the back wall panel (29) on the back side of the assembled steel frame (opposite the door opening) by connecting the top clip of one of the window poles to the top of the frame near the K1 brace.
  • Page 18 Operator's Manual Landmark Permanent Blind ™ D-ring Strap Hook and Loop Strap FIGURE 18 7. Hang the left front wall panel (31) on the front side of assembled steel frame by connecting the top clip of the pole to the top of the frame near the K1 brace.
  • Page 19 Operator's Manual Landmark Permanent Blind ™ FIGURE 19 10. Drape the roof panel (25) over the assembled roof frame. Secure the hook and loop attachment strips on the front and the back of roof panel to the strips on the front and back wall panels. SEE FIGURE 19A. NOTE: ADJUST AND REDO AS NECESSARY TO TAKE OUT AS MUCH SLACK IN THE FABRIC AS POSSIBLE.
  • Page 20 Operator's Manual Landmark Permanent Blind ™ Top Frame Clip Tether Buckle Pole Clip Tether Buckle Window Pole Mid Frame Pole Tether Buckle FIGURE 20 FIGURE 21 13. Locate the three horizontal window panels with shooting rail sleeves (27) and the three S1 poles. Insert an S1 pole into the shooting rail sleeve on each window panel.
  • Page 21 Operator's Manual Landmark Permanent Blind ™ FIGURE 22 19. Locate all of the tether straps (37). Wrap strap around angled corner brace and then send male buckle through the looped end of the strap. Pull tight to snug tether strap to angled corner brace. Insert the male buckle into the female buckle attached to the window panel.
  • Page 22 Operator's Manual Landmark Permanent Blind ™ Sewn Strap Corkscrew Stake FIGURE 23 GROUND STAKE INSTRUCTIONS 1. On the inside of the blind, screw corkscrew stake into ground near corner. SEE FIGURE 23. 2. Take loop end of a sewn strap and slide onto corkscrew stake. SEE FIGURE 23. 3.
  • Page 23 Operator's Manual Landmark Permanent Blind ™ ONE YEAR LIMITED WARRANTY RETI., warrants this product under a one-year limited warranty to be free from defects in materials or workmanship or both for a period not exceeding twelve consecutive months from the date of original purchase by the first retail consumer or commercial end user. “Consumer use”...
  • Page 24 Operator's Manual Landmark Permanent Blind ™ PARTS BREAKDOWN KEY # PART # DESCRIPTION QTY. KEY # PART # DESCRIPTION QTY. 22864 BASE HUB "HUB1" 22930 HORIZONTAL SUPPORT FEMALE "B1" 22879 UPPER CROSS BRACE "J1" 22932 HORIZONTAL SUPPORT MALE "A1" 22880 CORNER CROSS BRACE "K1"...
  • Page 25 Operator's Manual Landmark Permanent Blind ™ PARTS BREAKDOWN KEY # PART # DESCRIPTION QTY. KEY # PART # DESCRIPTION QTY. 25474 SEWN LEFT FRONT PANEL 23876 WINDOW RAIL TUBE "S1" 22887 DOOR TUBE FEMALE "Q1" 22891 SEWN ROOF PANEL 22889 DOOR TUBE MALE "P1"...
  • Page 26 Operator's Manual Landmark Permanent Blind ™ NOTES Check for parts online at www.HuntRiversEdge.com or call 800-450-EDGE (3343) M-F 8-5...
