INSTALLATION OF THE
ADK ADAPTER PLUG
ELECTRICAL SHOCK HAZARD. Turn off power to the area where you
will install this unit at the circuit breaker or fuse box before beginning
installation. Failure to turn off the power before installation may result in
serious electrical shock, injury or death. Do not restore power until all
Smoke Alarms are completely installed.
• Installation of this unit must conform to the electrical codes in your
area; Article 760 of NFPA 70 (NEC), NFPA 72, NFPA 101; SBC (SBCCI);
UBC (ICBO); NBC (BOCA); OTFDC (CABO), and any other local or
building codes that may apply. Wiring and installation must be per-
formed by a licensed electrician. Failure to follow these guidelines
may result in injury or property damage.
• This unit must be powered by a 24-hour, 120VAC pure sine wave 60Hz
circuit. Be sure the circuit cannot be turned off by a switch, dimmer,
or ground fault circuit interrupter. Failure to connect this unit to a
24-hour circuit may prevent it from providing constant protection.
For all other Smoke Alarm information, instructions and warnings, refer to the
Smoke Alarm User's Manual.
COMPATIBLE BRK
®
All of the listed BRK
®
Alarms are compatible with the listed KIDDE/
FYRNETICS/LIFESAVER
®
Alarms and will work with the enclosed Adapter
Plugs.
BRK
®
Alarms
4120, 9120 Series – AC, AC/DC Ion, Silence
5919 – AC Photo
2002RAC – AC/DC Photo
7010 Series – AC, AC/DC Photo, Silence
SC6120B, SC9120B – AC/DC Smoke/CO Combo
HD6135FB – Heat Alarm
RM3 – Auxiliary Relay
KIDDE/FYRNETICS/LIFESAVER
1235 Series – AC Ion
1275 Series – AC/DC Ion, Hush
1285 Series – AC/DC Ion, Escape Light
1276 – AC/DC Ion, Hush, Front-Loading Battery
PE120E, PE120 – AC/DC Photo
PI2000 – AC/DC Ion/Photo
HD135F – Heat Alarm
• Maximum of 18 units total may be interconnected, (Maximum of 12
Smoke Alarms plus 6 other devices). Check for model numbers above.
Adapter Plug (ADK) Diagram for
KIDDE/FYRNETICS/LIFESAVER
Plug Pin
View
NOTE: Twist tie should not be removed.
NOTE: ADAPTER PLUG CANNOT BE USED TO CONNECT KIDDE CARBON
MONOXIDE ALARMS.
THE ABOVE MODELS OF KIDDE/FYRNETICS/LIFESAVER
MODELS THAT MAY BE INTERCONNECTED USING ONE OF THE ADAPTER
PLUGS INCLUDED. IF THE MODEL IS NOT LISTED, IT MUST BE REMOVED
FROM THE SYSTEM.
NOTE:
INCOMPATIBLE POWER CONNECTORS:
DO NOT ATTEMPT
INSTALLATION
NOTE: Adapter Plug can be used on KIDDE/FYRNETICS/LIFESAVER
Models manufactured on or before January 1, 2004.
AND FIRST ALERT
®
MODELS
®
®
Models:
Side View
®
ARE THE ONLY
KIDDE
NOTE ROUND HOLES
1. Verify which MODELS are installed in your system to determine if they are
compatible with the ADK Adapter Plug (see part C below).
2. Turn off AC power.
3. Remove unit. Remove old mounting bracket.
4. Install new mounting bracket (see part A below).
5. Connect the black end of the ADK Adapter Plug to the existing power
connector (connect part C to part D as shown below).
NOTE: There may not be enough room for the Adapter Plug and additional
wiring to fit in the junction box. If not, the old power connector must be
removed and replaced with a First Alert
6. Connect the other end of the Adapter Plug to the appropriate Smoke Alarm
(connect part C to part B as shown below).
7. Check all connections. Make sure all plugs are completely connected and
snapped together. Ensure the Adapter Plug is securely connected to the
existing Power Connector.
8. Install the base of the Smoke Alarm to the mounting bracket.
9. Restore power to the junction box.
10. Test each Smoke Alarm. Press and hold the test button until the unit alarms.
When testing a series of interconnected units you must test each unit
individually. Make sure all units alarm when each one is tested.
A
White
Orange
Black
C
Independent evaluation of the
Adapter Plug and interconnect
compatibility was performed by
Intertek, a division of ETL SEMKO.
© 2007 BRK Brands, Inc., a Jarden Corporation company (NYSE: JAH)
3901 Liberty Street Road, Aurora, IL 60504-8122
All rights reserved.
Consumer Affairs: (800) 323-9005 • www.firstalert.com • www.brkelectronics.com
US Patent No.: 6,641,433 B2
BRK
®
is a registered trademark of BRK Brands, Inc.
®
First Alert
®
is a registered trademark of the First Alert Trust.
Lifesaver
®
is a registered trademark of Fyrnetics, Inc.
INSTALLATION INSTRUCTIONS
®
Power Connector.

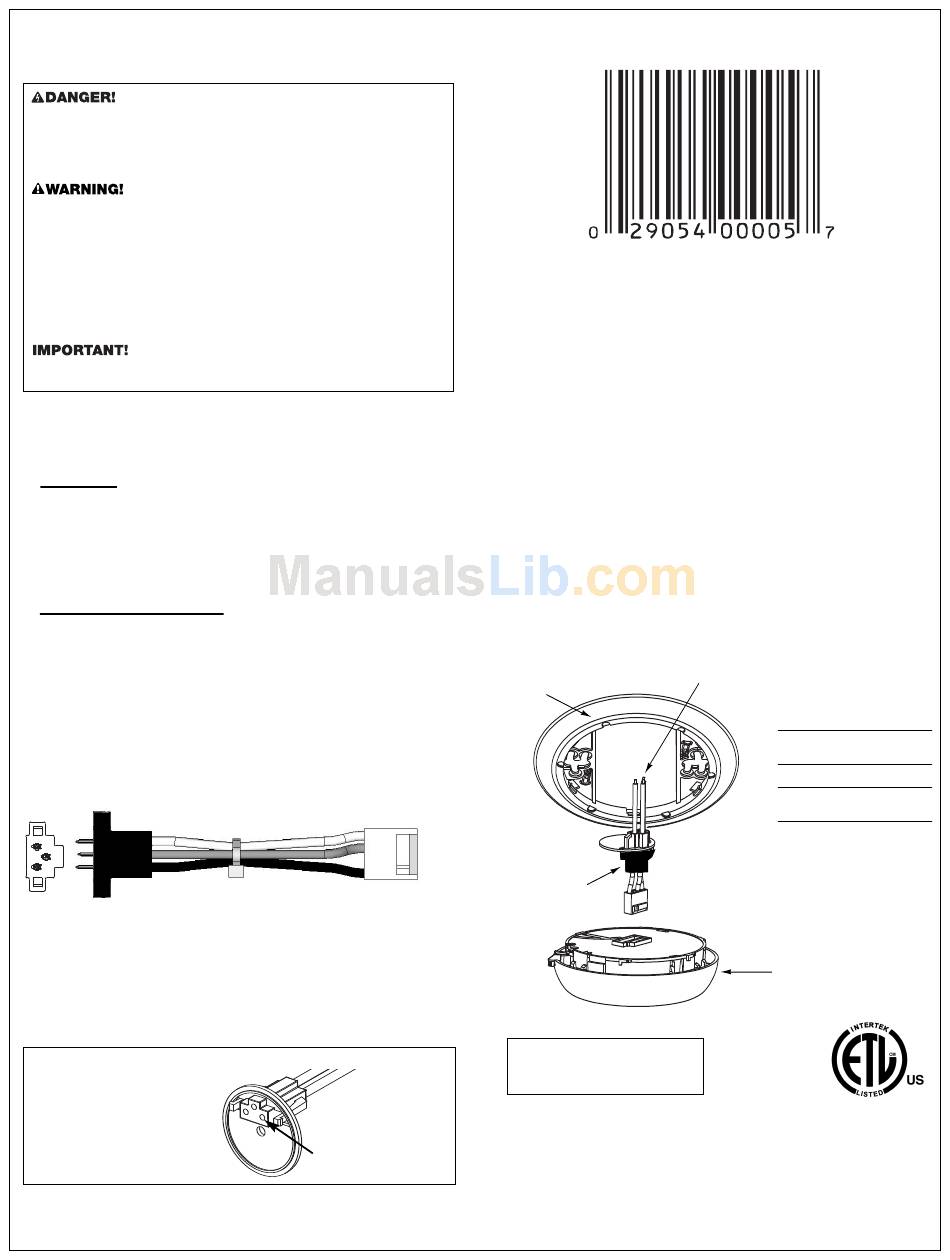

The Parts of This Installation
D
A Mounting Bracket
B BRK
C ADK Adapter
D Existing compatible
Electrical Rating:
120V AC, 100mA Maximum
Not for Current Interruption
B
RECOGNIZED
COMPONENT
CONFORMS TO
UL STANDARD 1977
Printed in Mexico M08-0126-001 H 06/07
®
4120, 9120 Series
Smoke Alarm
power connector
3055574
