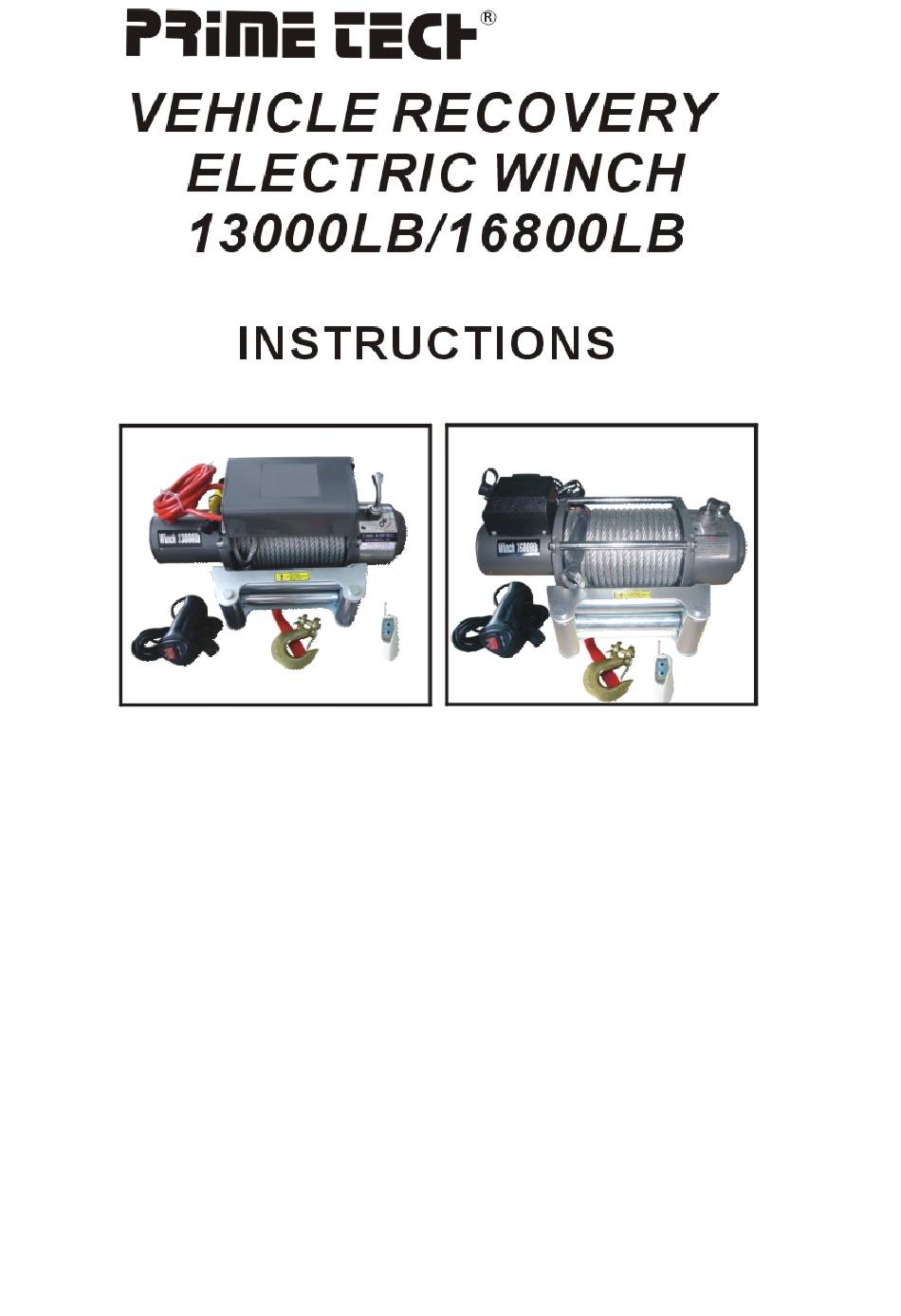

Summary of Contents for Primetech 13000LB
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS Warning! Observe safety precautions for personal safety and the safety of others. Improper equipment operation may cause personal injury and equipment damage. Read the following carefully before attempting to operate your winch and keep the instructions for future reference. 1. - Page 3 WINCH OPERATION WARNINGS Read the following carefully before attempting to operate your winch and keep the instructions for future reference. 1. The uneven spooling of cable, while pulling a load, is not a problem, unless there is a cable pile up on one end of the drum.
- Page 4 1. The cable stop spooling auotomatically while overloading. The sound of grating or a alarm tone means the pull has overed 13000lb / 16800lb and over-load protection is working. Please disconnect the remote control switch and power off, using pully block to increase the winch pull.
-
Page 5: Installation
INSTALLATION MOUNTING YOUR WINCH 1a) The winch is to be mounted into a suitable steel mounting frame using the 4 point foot mounting system in either a horizontal or vertical plane. b) It's very important that the winch be mounted on a flat surface so that the three sections (motor, cable drum and gear housing) are properly aligned. -
Page 6: Cable Installation
CABLE INSTALLATION Unwind the new cable by rolling it along the ground,to prevent kinking.Remove old cable and obsevre the manner in which it is attached to the cable drum flange. ELECTRICAL CONNECTION For normal self -recovery work, your existing electrical system is adequate. A fully charged battery and proper connections are essential. -
Page 8: Winch Operation
WINCH OPERATION SUGGESTION: The best way to get acquainted with how your winch operates is to make a few test runs before you actually need to use it.Plan your test in advance. Remember you can hear your winch as well as you can see it operate. - Page 9 NOTE: The safety precautions and instructions discussed in this manual can't cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors, which cannot be built into this product,but must be applied by the operator.
- Page 10 13000LBS FEATURES AND SPECIFICATIONS Single Line Rated Pull 13000lb(5900kg) single line Motor 12V 5.5hp/4.0kw,24V 6.44hp/4.8kw Series Wound Control Remote Switch,12ft(3.7m)lead Gear train 3 Stage Planetary Gear reduction ration 218.4:1 Clutch flexible operation,water-resistent Braking Action Automatic In-The-Drum Drum Size Φ64mmxL223mm Cable Φ9.5mm, 26m...
- Page 11 16800LBS FEATURES AND SPECIFICATIONS Single Line Rated Pull 16800lb(7620kg) single line Motor 12V 5.6hp/4.2kw,24V 6.17hp/4.6kw Series Wound Control Remote Switch,12ft(3.7m)lead Gear train 3 Stage Planetary Gear reduction ration 312.4:1 Clutch flexible operation,water-resistent Braking Action Automatic In-The-Drum Drum Size Φ85mmxL221.5mm(3.35"x8.72") Cable Φ11.5mm, 28m Fairlead 4-Way Roller Fairlead...
- Page 12 13000LBS LINE PULL AND CABLE CAPACITY Layer of cable Rated line 13000 10010 8840 7410 pull per layer 5900 4541 4010 3361 Cumulative 34.6 58.6 85.3 cable capacity 4.58 10.54 17.87 16800LBS LINE PULL AND CABLE CAPACITY Layer of cable 16800 13779 13779...
- Page 13 13000LBS SOLENOID BOX ASSEMBLY (12V/24V) PARTS LIST Item No. Part No. Description S13000/08-30 Solenoid Cover S13000/08-31 Solenoid- 12V S13000/08-32 Solenoid- 24V S13000/08-33 Black Cable with Black Sleeve(0.75mmx0.45m;earth) S13000/08-34 1.8m Long Red Cable S13000/08-35 0.425m Short Black Cable with Yellow Terminal Sleeve S13000/08-36 0.425m Short Red Cable with Red Terminal Sleeve...
- Page 14 16800LBS SOLENOID BOX ASSEMBLY (12V/24V) PARTS LIST Item No. Part No. Description S16800/08-30 Solenoid Cover S16800/08-31 Solenoid- 12V S16800/08-32 Solenoid- 24V S16800/08-33 Black Cable with Black Sleeve(0.75mmx0.45m;earth) S16800/08-34 1.8m Long Red Cable S16800/08-35 0.425m Short Black Cable with Yellow Terminal Sleeve S16800/08-36 0.425m Short Red Cable with Red Terminal Sleeve...
