Summary of Contents for DAEWOO ELECTRONICS TP-463

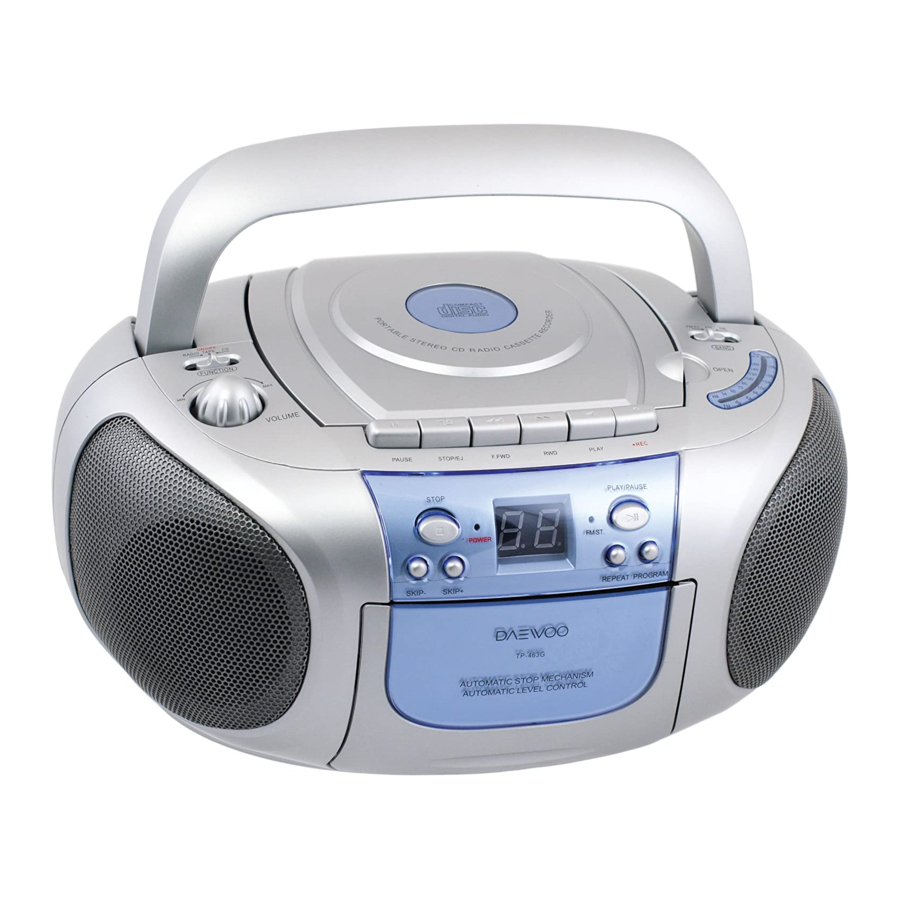

- Page 1 PORTABLE CD PLAYER WITH CASSETTE RECORDER TP-463 INSTRUCTION MANUAL HELPLINE NUMBER: 0870 100 2525...
- Page 2 WARNING : TO PREVENT FIRE OR SHOCK HAZARD DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE WARNING : SHOCK HAZARD-DO NOT OPEN This marking is located on the rear of the unit The lighting flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
- Page 3 SAFETY INSTRUCTIONS 12. OBJECT and LIQUID ENTRY-Care should be 1. READ INSTRUCTIONS-All the safety and taken so that objects do not fall and liquids are operating instructions should be read before not spilled into the enclosure through openings. the appliance is operated. 2.
-
Page 4: Location Of Controls
LOCATION OF CONTROLS AM / FM Antenna Tuning Knob CD Door Function Selector Band Selector Open / Close Volume Control Dial Pointer Cassette Pause Key Cassette Record Key Cassette Stop / Eject Key Cassette Play Key Cassette Forward Key Cassette Reverse Key LED Display Power Indicator FM Stereo Indicator... -
Page 5: Power Sources
LOCATION OF CONTROLS Head Phone Jack Handle DC Compartment AC Jack POWER SOURCES AC POWER You can power your portable system by plugging the detachable AC power cord into the AC inlet on the back of the unit and into a wall AC power outlet. Check that the rated voltage of your unit matches your local voltage. -
Page 6: Listening To Radio
LISTENING TO RADIO OPERATION 1. SET THE FUNCTION SELECTOR TO "RADIO" POSITION. 2. SELECT THE DESIRED RADIO FREQUENCY BAND WITH BAND SELECTOR. 3. TURN THE TUNING CONTROL TO SET THE DIAL POINTER TO THE STATION FREQUENCY AS DESIRED. 4. ADJUST VOLUME CONTROLS FOR THE DESIRED VOLUME LEVEL. FM &... - Page 7 CD OPERATION PLAYING COMPACT DISC • GETTING START 1. SET THE FUNCTION SELECTOR TO "CD" POSITION. OPEN THE CD COMPARTMENT WITH THE OPEN HANDLE. PUT A Repeat 1/ Play / CD INTO THE COMPARTMENT AND CLOSE THE CD DOOR. Repeat all Pause 2.
-
Page 8: Tape Operation
CD PROGRAMMING UP TO 20 TRACKS CAN BE PROGRAMMED FOR DISC PLAY IN ANY ORDER. TO PROGRAM 1) SET IN CD MODE. 2) PRESS THE PROGRAM BUTTON, DISPLAY WILL SHOW 01 AND FLASH. 3) SELECT A DESIRED TRACK BY USING THE SKIP BUTTONS. 4) PRESS THE PROGRAM BUTTON TO ENTER THE TRACK INTO SETTING. -
Page 9: Specifications
SPECIFICATIONS GENERAL Power Supply: 230V~50Hz Power Consumption: 12Watt Output Power(RMS): 1.2W x 2 Terminal impedence: Speaker 8ohms,Phones 32ohms Unit Dimensions: 290(L) x 219(W) x 144(H)mm Net Weight: 2.0kgs Gross Weight: 2.6kgs CASSETTE SECTION Tape Speed: 4.75cm/sec Recording System: AC BIAS Erasing System: DC MAGNET Frequency Response:...
