Summary of Contents for laguna WBSCH

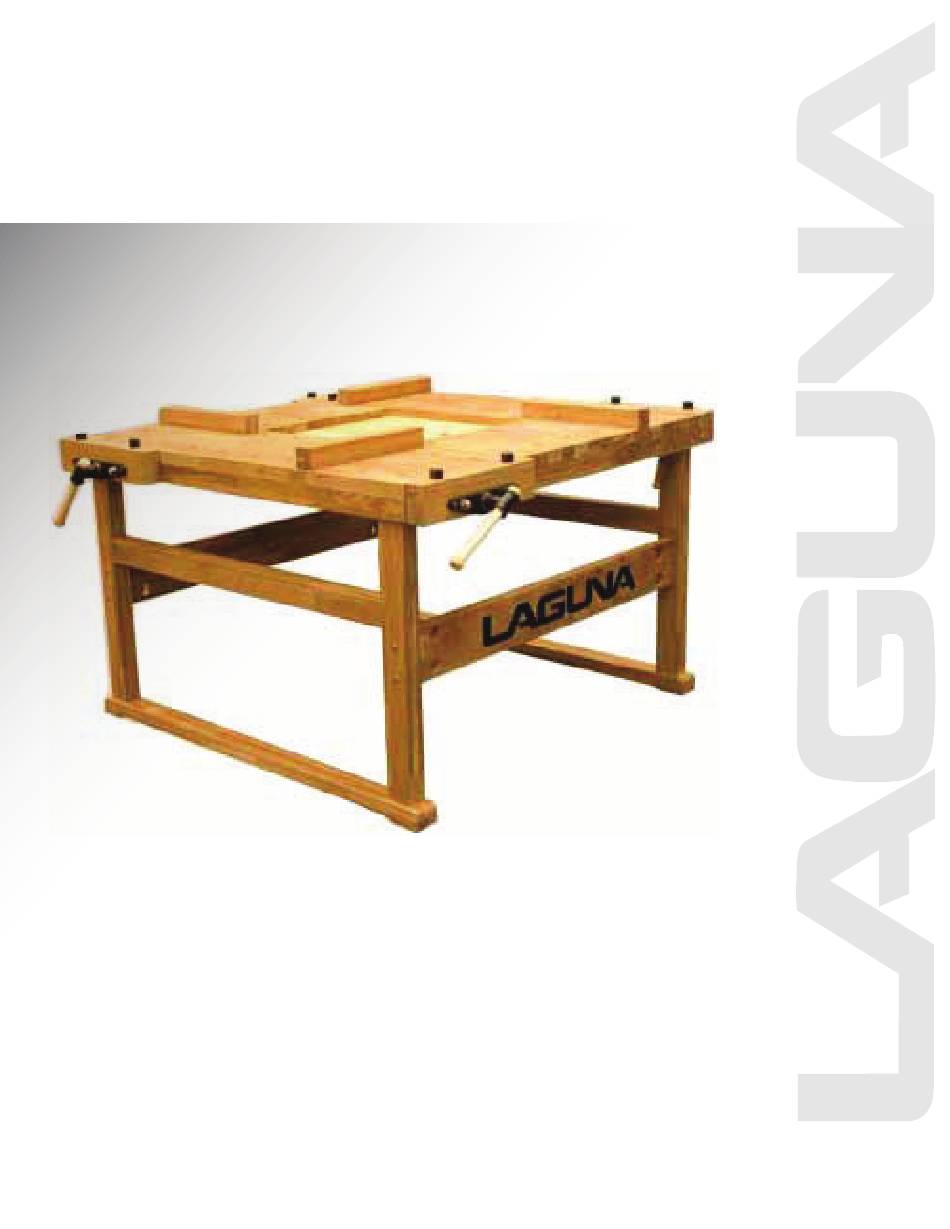

- Page 1 SCHOOL WORKBENCH WBSCH MANUAL LAGUNA TOOLS 2072 Alton Parkway Irvine, California 92606 Ph: 800.234.1976 www.lagunatools.com © 2018, Laguna Tools, Inc. LAGUNA® and the LAGUNA Logo® are the registered trademarks of Laguna Tools, Inc. All rights reserved.
-
Page 2: Specifications
OPERATION MAUNAL 48” x 48” OAK WORKBENCH (WBSCH) FEATURES SPECIFICATIONS Solid 1.5” thick table top with 2.5” thick skirt TABLE DIMENSIONS: 48” x 48” for extra support, total edge thickness is 4”. VISE DIMENSIONS: 13” x 2” x 3.5” Includes both front and end vises with a MAX. - Page 3 ASSEMBLY INSTRUCTIONS: (FIG. 1) (FIG. 2) Please insert the cap screw (No. A) with washer (No. Repeat the same steps on the other side of the left B) into the right stand (No. 3). Insert the wood pin at stand. the center hole.
- Page 4 (FIG. 6) Disassemble the vise support bracket with a 12 mm wrench. (FIG. 5) See (FIG. 6) Repeat step 1 with the left stand then attach the left stand to the front and side support as shown and secure with a moon nut (No. E) and hex nut (No. D). Tighten with the supplied 5mm Allen Wrench (No.
- Page 5 (FIG. 9) Insert the nut (No. H) into the table edge. See (FIG. 9) (FIG. 10) Turn the stand assembly up side down and carefully lower it into the underside of the table as shown. See (FIG. 10) (FIG. 12) (FIG.
- Page 6 (FIG. 14) (FIG. 13) Place a straightedge on the table and vise face. Manually adjust the vise face, so it is leveled with From under the table, re-install the flat washers and bolts previously removed as step 6, and tighten with the table top then firmly tighten the screw (No.
-
Page 7: Exploded Diagram
EXPLODED DIAGRAM:... -
Page 8: Part List
PART LIST: DESCRIPTION SPECIFICATION Q’TY Cap Screw M8 x 120mm Washer Ø8-Ø19mm Allen Wrench Hex Nut M8 x 14 x 6mm Moon Nut 30 x 15 x 8mm Cap Screw M6 x 70mm Washer Ø6-Ø19mm Ø9 x 13mm Allen Wrench Wood Pin Ø10 x 40mm Glue... - Page 9 Laguna Tools is not responsible for errors or omissions. Specifications subject to change. Machines may be shown with optional accessories. © 2018, Laguna Tools, Inc. LAGUNA® and the LAGUNA Logo® are the registered trademarks of Laguna Tools, Inc. All rights reserved.
