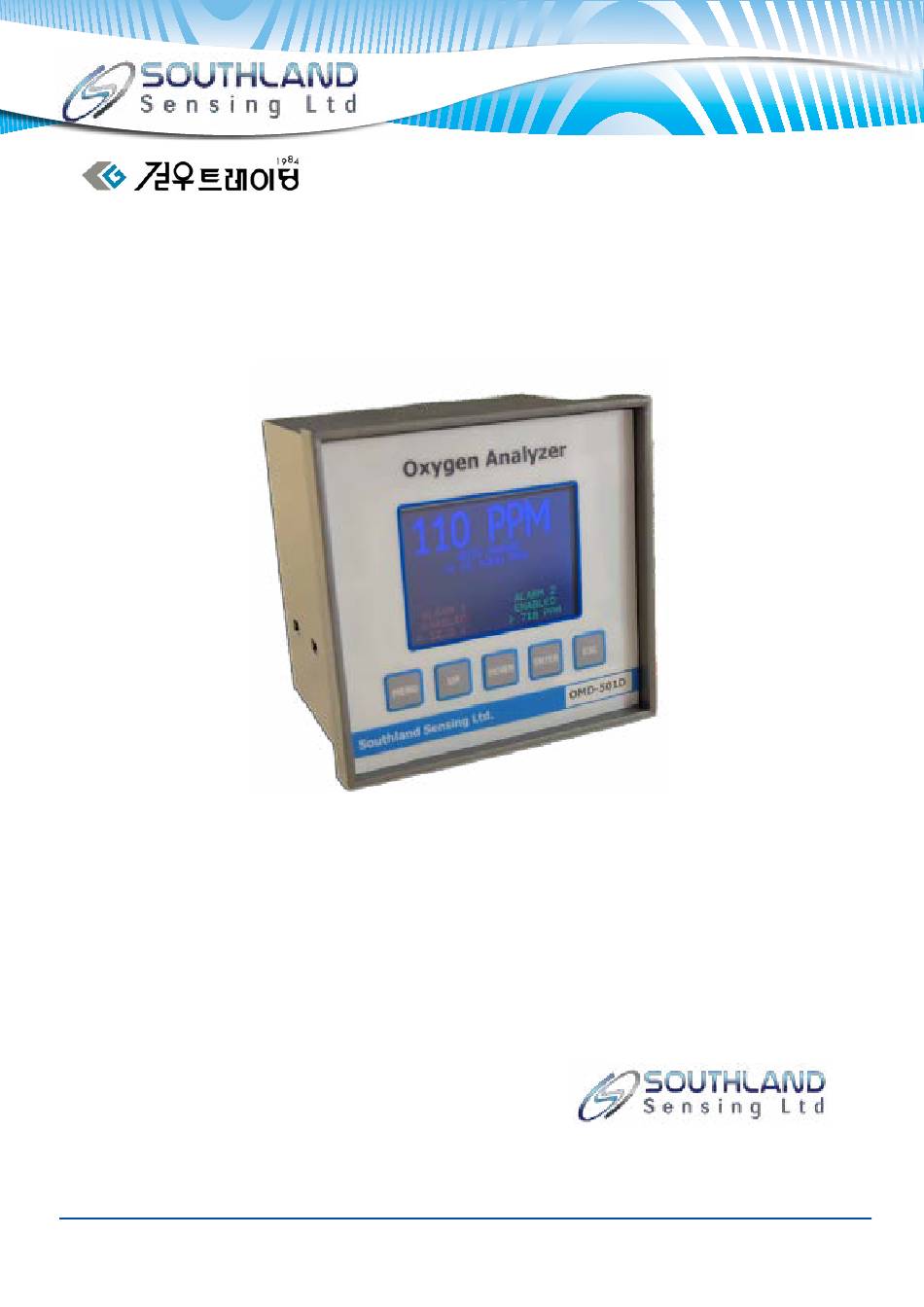

- Page 1 OMD-501D Trace Oxygen Analyzer Instruction Manual 4045 E. Guasti Rd. #203 Ontario, CA 91761 USA Web: www.sso2.com Phone: 1-949-398-2879 E-mail: sales@sso2.com OMD-501D Manual Rev 1.3 1_2015...
-
Page 2: Table Of Contents
Table of Contents Part 1 Introduction General Introduction Principle of Operation - The Oxygen Sensor OMD-501D Specifications Part 2 Installation Receiving Your New Oxygen Analyzer Mounting the Electronics Module Mounting the Sensor Housing Electrical Connections Gas Connections Installing the Oxygen Sensor using the H3 Flow Through Sensor Housing... -
Page 3: General Introduction
Principle of Operation - The Oxygen Sensor The precision electrochemical oxygen sensor used in the OMD-501D is designed and manufactured by Southland Sensing Ltd under a strict quality proceedure. -
Page 4: Omd-501D Specifications
Part 1 Introduction OMD-501D Specifications OMD-501D Trace Oxygen Analyzer Precision Electrochemical Sensor Technology Large Color Display w/ User Friendly Menu 5 Standard Analysis Ranges Auto-Ranging or Manual Range Mode Two Adjustable Alarm Contacts w/ delay mode Panel Mount, 1/4 DIN Enclosure Design... -
Page 5: Receiving Your New Oxygen Analyzer
The analyzer is shipped with all materials needed to install and prepare the system for operation. In some instances, added sample system components are necessary to condition the gas sample before entering the sensor housing. Southland Sensing offers free application consultation, and we encourage you to take advantage of our engineers and their expertise. -
Page 6: Mounting The Electronics Module
The OMD-501D is designed as an indoor unit. For field installations, please refer to the NEMA4X, IP66 en- closure option offered by Southland Sensing Ltd. - Page 7 The sensor housing has 4 wires and should be hard wired into the back of the OMD-501D electronics module as follows: Sensor (+) red wire = Pin 5 Sensor (-) black wire = Pin 6...
-
Page 8: Electrical Connections
Part 2 Installation Electrical Connections The OMD-501D accepts a 12 - 28VDC Power supply with a 1 amp minimum rating as standard. The maxi- mum power consumption is 8 watts. The unit has an optional 100-240VAC power supply. Verify which power your unit has been configured with. -
Page 9: Installing The Oxygen Sensor Using The H3 Flow Through Sensor Housing
CAUTION: Prior to installing the oxygen sensor. Read section 4.1 on performing a span calibration. The OMD-501D can accept either a TO2-1x or TO2-2x (CO2 Applications) trace oxygen sensor. For proper selection with your application, please view our online application guide or contact your local sales rep. - Page 10 CAUTION: Prior to installing the oxygen sensor. Read section 4.1 on performing a span calibration. The OMD-501D can accept either a TO2-1x or TO2-2x (CO2 Applications) trace oxygen sensor. For proper selection with your application, please view our online application guide or contact your local sales rep.
-
Page 11: Understanding The Controls And Their Operation
Understanding the Controls and their Operation The OMD-501D Trace Oxygen Analyzer is a feature packed unit with an easy to use menu interface. The key attributes within the menu are the ability to select a measurement range, both manually or set it to the auto-range mode. -
Page 12: Measurement Range Overview
Part 3 Operation Measurement Range Overview The OMD-501D Trace Oxygen Analyzer allows the user to field select 5 available ranges - custom ranges are available upon request. These ranges can be selected in manual mode meaning they are locked into that range by the user, or they can be set to auto-range so the analyzer will adjust to give you the best full scale resolution. -
Page 13: Advanced Alarm Functions
Part 3 Operation Advanced Alarm Functions The OMD-501D Trace Oxygen Analyzer is equiped with 2 advanced relay contact alarms. These alarms can be configured as normally open or normally closed, has a delay model built-in and can be enabled or disabled when necessary. Using the color display, the alarms are also color coded. -
Page 14: Analog Output 4 - 20Ma
Part 3 Operation Analog Output 4 - 20mA ** Caution: Integral 4 - 20mA converters are internally powered and do not require ex- ternal power. DO NOT supply any voltage across these terminals as the 4 - 20mA output will be damaged. It is also important to assure proper grounding of the external recording device such as a PLC, DCS prior to connecting the 4 - 20mA. -
Page 15: Span Calibration Using Ambient Air
Let the reading stabilize for about 45 seconds and then proceed to the following steps in the OMD-501D menu: SPAN calibration: To Calibrate the indicator, press MENU key Use UP/DOWN keys to bring * besides the option... -
Page 16: Span Calibration, Using Certified Span Gas
Part 4 Maintenance Span Calibration using a Certified Span Gas Calibration involves using a known span gas to match and adjust the oxygen sensor / analyzer combo to a known value. This can be as simple as using ambient air that tends to be a constant 20.9% or a bottle of certified span gas from your local air separation company. -
Page 17: Procedure For Replacing The Sensor
Part 4 Maintenance Procedure for Replacing the Oxygen Sensor Oxygen Sensor Replacement: The characteristics of a precision electrochemical fuel cell are similar to those of a battery. They both provide an output that is nearly constant throughout their usefule life and simply fall of sharply to- wards zero at the end. -
Page 18: Material Safety Data Sheets
Product Identification Product Name Oxygen Sensor Series – PO2, TO2 series Synonyms Precision Electrochemical Sensor Manufacturer Southland Sensing Ltd, 848 North Rainbow Blvd. Las Vegas, NV 89107 USA Emergency Phone Number 1-949-398-2879 Preparation / Revision Date April 23rd, 2012 Notes Oxygen sensors are sealed, contain protective coverings and, in normal conditions, do not present a health hazard. - Page 19 Part 5 Annexures 5.3 Cont. Material Safety Data Sheet (MSDS) Reactivity Data Stability Stable Conditions Contributing to Instability None Incompatibility KOH = Avoid contact with strong acids or Acetic Acid = Avoid contact with strong bases Hazardous Decomposition Products KOH = None or Acetic Acid = Emits toxic fumes when heated Conditions to Avoid KOH = None or Acetic Acid = Heat Spill or Leak...
- Page 20 Part 5 Annexures Certificate of Conformance OMD-501D Trace Oxygen Analyzer Model Number: Serial Number: ________________ Sensor Selection: ( ) TO2-1x Trace Oxygen Sensor ( ) TO2-2x Trace Oxygen Sensor CO2 > 0.1% Serial Number: ________________ Sensor Housing Selection: ( ) H3 Flow Through Sensor Housing 1/8” Swagelok ( ) H3 Flow Through Sensor Housing 1/4”...
