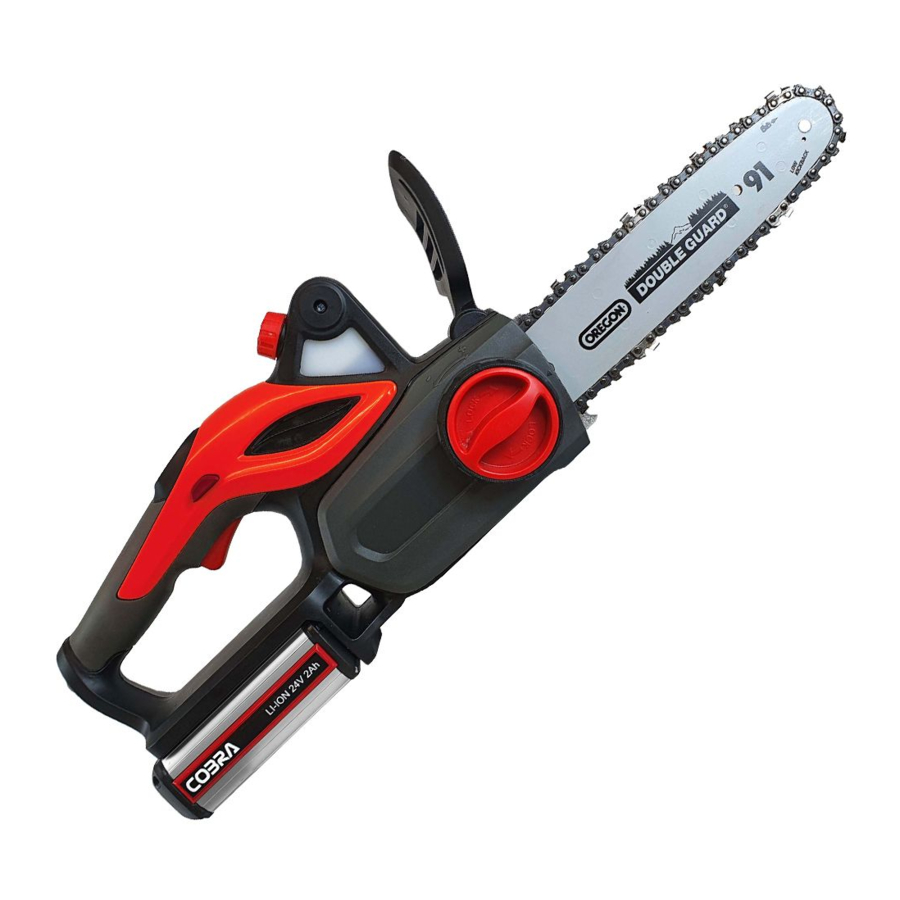

Cobra Garden Machinery CS1024V Owner's Manual

Cordless chainsaw

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

MODELS: CS1024V (CS11-2410D)

COBRA

CORDLESS CHAINSAW

OWNER'S MANUAL

Cobra Garden Machinery

Henton and Chattell Ltd., London Road, Nottingham NG2 3HW UK

www.cobragarden.co.uk

WARNING：

For your own safety please read this manual before attempting to operate your new tool.

Failure to follow instructions can result in serious personal injury. Spend a few moments to

familiarize yourself with your garden tool before each use. Keep this manual in a safe

place, so that the information is available at all times. If you give the equipment to any other

person, hand over these operating instructions and safety regulations as well.

Table of Contents

Need help?

Do you have a question about the CS1024V and is the answer not in the manual?

Questions and answers

Summary of Contents for Cobra Garden Machinery CS1024V

Page 1 MODELS: CS1024V (CS11-2410D) COBRA CORDLESS CHAINSAW OWNER’S MANUAL Cobra Garden Machinery Henton and Chattell Ltd., London Road, Nottingham NG2 3HW UK www.cobragarden.co.uk WARNING： For your own safety please read this manual before attempting to operate your new tool. Failure to follow instructions can result in serious personal injury. Spend a few moments to familiarize yourself with your garden tool before each use.
Page 5: Symbols Marked On The Product
1. SYMBOLS MARKED ON THE PRODUCT SYMBOLS NAME EXPLANATION The product meets the demands and regulations set CE Marking by the European Community (now European Union). CAUTION! Unusable power tools do not belong with domestic waste. They must be taken to a communal WEEE marking collecting point for environmentally friendly disposal in accordance with local regulations.
Page 6: General Safety Rules
Batteries Disposal: Old batteries must not be added to household waste, but should be disposed of in accordance with the applicable legislation. Take unusable rechargeable batteries to the dealer’s or community’s battery collection point. Disposing of the packaging: The packaging is made of cardboard and separately labeled foil which is also recyclable.
Page 7 c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Do not carry power tools with your finger on the power switch or with an energised power tool. d) Remove any adjusting key or wrench before turning the power tool on.
Page 8: Chain Saw Safety Warnings
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. 2.5 SERVICE Have your power tool serviced by a qualified repair person using only identical replacement parts.
Page 9: Causes And Operator Prevention Of Kickback
2.7 CAUSES AND OPERATOR PREVENTION OF KICKBACK Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut. Tip contact in some cases may cause a sudden reverse reaction, kicking the guide bar up and back towards the operator.
Page 10: Product Description
3. PRODUCT DESCRIPTION 3.1 Safety and protective devices WARNING! Danger of serious injury from manipulated safety and protective devices As a result of manipulated safety and protective devices, serious injury can occur when working with the chain saw. ■ Never deactivate safety and protective devices. ■...
Page 11 3.2 PRODUCT OVERVIEW (See figure 1) Item Component 01/1 Saw chain 01/2 Chain bar 01/3 Quick-tension chain wheel with central lock and rotating ring 01/4 Hand guard 01/5 Handle 01/6 Battery 01/7 Throttle lever 01/8 Locking button 01/9 Rear handle 01/10 Cover for chain sprocket 01/11...
Page 12 2. Guide the saw chain around the reversing sprocket of the chain bar. The saw chain must hang down slightly on the underside of the chain bar. 3. Put the cover (05/3) and tighten the central lock (05/2) slightly. 4.3 Tightening the saw chain (05, 07) NOTE The saw chain has been tensioned correctly when: ■...
Page 13 5.4 Checking the chain tension Frequently check the chain tension, because new saw chains stretch. At operating temperature, the saw chain stretches and hangs down.
Page 14 NOTE The saw chain has been tensioned correctly when: ■ It is in contact with the underside of the chain bar and can be pulled through by hand. ■ It can be lifted by 3 – 4 mm in the middle of the chain bar. CAUTION! Danger of injury due to the saw chain jumping off! An insufficiently tensioned saw chain can jump off during operation and lead to injury.
Page 15: Operation
5.7 Function test of the chain brake with the motor switched on (figure 8) NOTE Release the chain brake each time before switching on the chain saw. 1. Hold the chain saw securely and firmly by the handle and hand grip. 2.
Page 16 ■ Grip the rear saw grip firmly with your right hand (right-handed operator) and the front grip with your left hand and hold them tightly. ■ Do not release the grips for as long as the motor is running. ■ Do not use the chain saw if you are: ■...
Page 17 ■ Check the chain brake each time before starting work. ■ Do not switch the chain saw on if the chain brake is defective, in this case, have the chain saw checked in a service workshop.
Page 18 6.5 Switching the motor on and off CAUTION! Danger of hearing impairment! The operation of the chain saw causes intense noise that can cause hearing damage. ■ Whilst operating the chain saw, wear ear defenders. NOTE Release the chain brake each time before switching on the chain saw. Switching on the motor: 1.
Page 19 The actual vibration values may differ from the values specified in the technical data, depending on what the electrical tool is used for. In doing so, take account of the entire working process, i.e. also times during which the electrical tool is operating without load, or is switched off.
Page 20 ■ Safety boots with high-grip sole and steel toe caps ■ Do not use the chain saw above shoulder height, since safe handling is no longer possible in this way. ■ When changing position, switch off the engine and put on the chain guard. ■...
Page 21 ■ Watch out for power lines and other people's property. If necessary, notify the power supply company or the property owner. ■ Judge the falling direction of the tree. Factors influencing the falling direction of the tree: ■ Natural lean of the tree ■...
Page 22 NOTE Only use wedges made from wood, plastic or aluminium. DANGER! Danger of fatal injury from a falling tree! Having no escape route when felling a tree represents a danger of serious and even fatal injury! ■ Do not start the felling work until you are sure there is an unobstructed escape route away from the tree to be felled.
Page 23: Maintenance And Care
■ To prevent the chain saw becoming trapped and the wood splintering, first saw through 1/3 of the trunk diameter from below, then saw through the remainder from above, down as far as the cut made from underneath (10). Tree trunk is lying raised at both ends: To prevent the chain saw becoming trapped and the wood splintering, first saw through 1/3 of the trunk diameter from above, then saw through the remainder from underneath, up as far as the cut made from above (11).
Page 24 ■ Do not spray the chain saw with water and do not use a high-pressure cleaner. ■ Only use spare parts specified by the manufacturer. WARNING! Risk of injury due to chain saw being started inadvertently A chain saw that is started inadvertently can lead to serious injury. ■...
Page 25 Sharpen the saw chain frequently, without removing much material while doing so. After sharpening 3 to 4 times yourself, have the saw chain resharpened by a specialist workshop. This also involves resharpening the depth limiter. Renew the saw chain as soon as the minimum cutting tooth length of 4 mm (13) is reached.
Page 26: Environmentally-Friendly Disposal
3. Use a suitable grease gun to pump in sufficient grease from both sides in succession until the grease emerges evenly at the tips of the sprocket. Keep turning the sprocket when doing this. 10. STORAGE Thoroughly clean the chain saw after each use. Store it in a dry, lockable place out of the reach of children.
Page 27 Fault POSSIBLE CAUSE Remedial Action Before starting, make sure the hand guard is in Chain brake its most rearward position (chain brake engaged disengaged). For correct hand guard position, see “Starting The Saw” in this manual Battery Check the charge-level indicator on the battery. discharged If no green indicator lights are on recharge Trigger lock-out must be depressed.
Page 28: Warranty
13. WARRANTY This product is warranted in accordance with legal regulations for a 24 month period effective from the date of purchase by the first user. This product will not be covered if used in a commercial application. This warranty covers all material or production failures, it does not include: defects from normal wear and tear, parts such as, bearings, brushes, cables, air cleaning elements, brake pad, clutch disc, tyre, wheel, recoil starter rope, belts, cutter blades, plugs, lubricant oils and grease or accessories.
Page 29: Ec Declaration Of Conformity
14. EC-DECLARATION OF CONFORMITY EC Declaration of Conformity We herewith declare, Cobra Garden Machinery, Henton & Chattell Ltd, London Road, Nottingham NG2 3HW UK That the following machine complies with the appropriate basic safety and health requirements of the EC Directive based on its design and type, as brought into circulation by...
