KW F Series Installation And Operation Manual

Reach-in display case
Hide thumbs
Table of Contents

Advertisement

Quick Links

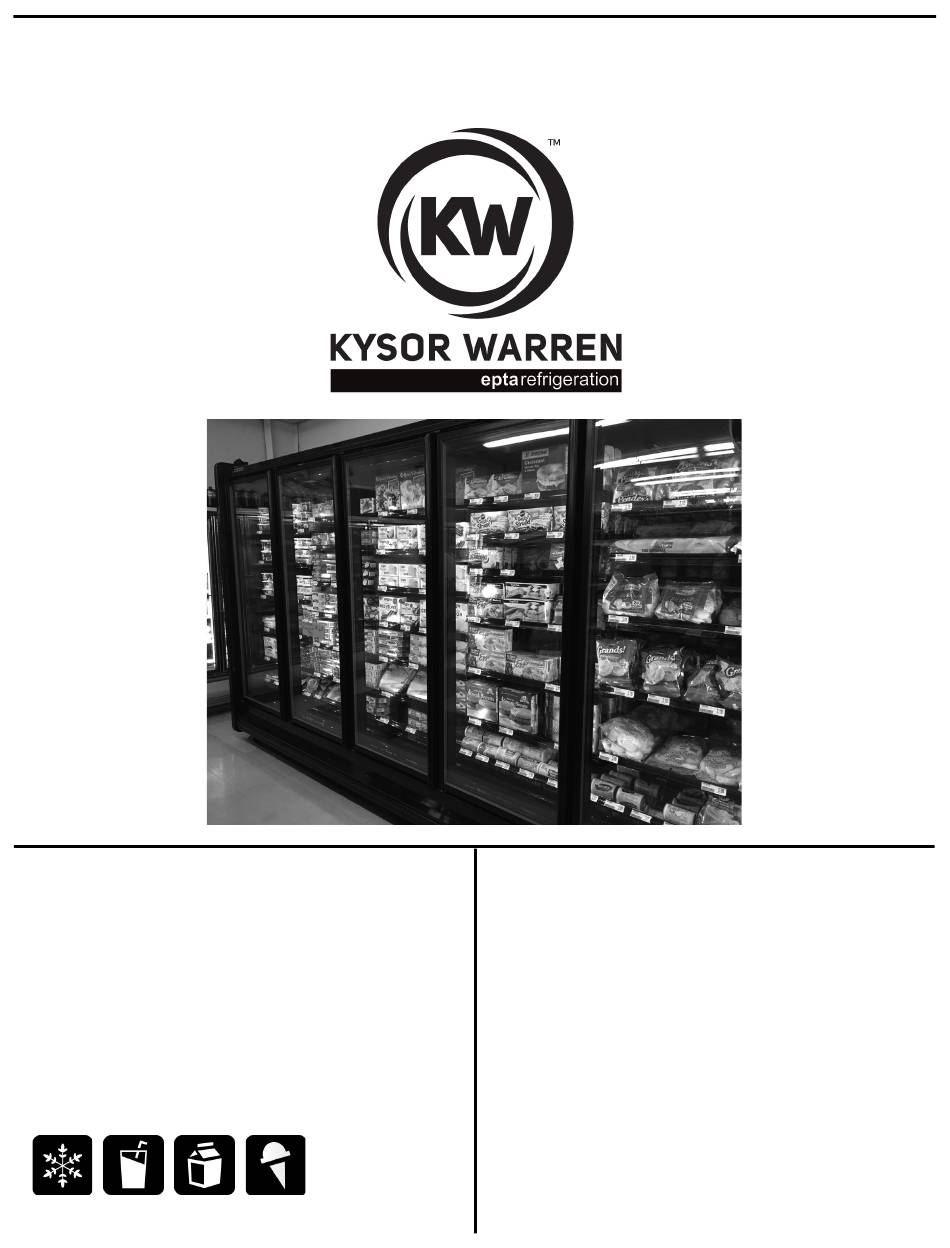

F-Series Reach-in
Display Case
June 2019
Part No. 31E02149
(Low Temperature)
(Medium Temperature)
Applications:
KW-IOM-2149 | Version 07
Installation and Operation Manual
2
3
5
15
19
36
37
38
40
42
43

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KW F Series

  • Page 1: Table Of Contents

    Case Data FX5SL FN6SL, FX6SL FN7SL, FX7SL Case Installation (Low Temperature) Electrical Connections—General Refrigeration Piping and Dehydration FX5SN, FN6SN, FX6SN FN7SN, FX7SN Expansion Valve and Superheat (Medium Temperature) ECM Evaporator Fan Applications: Operation Parts List Warranty KW-IOM-2149 | Version 07...

  • Page 2: Models

    Installation and Operation Manual Introduction—General Information This manual has been prepared for our customers and the personnel involved in installing and servicing our display cases. Kysor Warren glass door reach-in cases are designed to provide years of trouble free service. Our reach-in case line has been designed with a focus on things most important to your bottom line.

  • Page 3: Plan And Cross Views

    F-Series Reach-in Display Case Plan and Cross Views FX5SL- F-Series FX6SL- F-Series REACH IN SPECIFICATION SHEET REACH IN SPECIFICATION SHEET FX(5,6, & 7) SL/SN Cross Section View (Standard) FX7SL CROSS VIEW FX5SL CROSS VIEW FX6SL CROSS VIEW DOOR 69 DOOR 64 DOOR Ø1 Ø1...
  • Page 4 CONDENSATE DRAINS Installation and Operation Manual FX5SL Add 3” thickness for a pair of ends. FN6SL- F-Series FX(5,6 & 7)SL/SN Plan Section View (Standard) FX5SL PLAN VIEW REACH IN SPECIFICATION SHEET FN6SL CROSS VIEW 69 DOOR Ø1 CONDENSATE DRAINS Add 3” thickness for a pair of ends. FN6SL FN(6 &...

  • Page 5: Case Data

    F-Series Reach-in Display Case ISSUE DATE: OCTOBER 2018 FX5SL- F-Series Case Data ISSUE DATE: OCTOBER 2018 FX5SL- F-Series REACH IN SPECIFICATION SHEET # of Doors REACH IN SPECIFICATION SHEET APPLICATIONS General Case Data # of Doors APPLICATIONS 24.00 36.10 48.10 60.10 Total Display Area (ft 59.20...
  • Page 6 Installation and Operation Manual ISSUE DATE: OCTOBER 2018 FX5SL- F-Series Case Data ISSUE DATE: OCTOBER 2018 REACH IN SPECIFICATION SHEET FN6SL- F-Series # of Doors APPLICATIONS REACH IN SPECIFICATION SHEET General Case Data 24.00 36.10 48.10 60.10 Total Display Area (ft # of Doors APPLICATIONS 59.20...
  • Page 7 F-Series Reach-in Display Case ISSUE DATE: OCTOBER 2018 Case Data FX5SL- F-Series ISSUE DATE: OCTOBER 2018 FX6SL- F-Series REACH IN SPECIFICATION SHEET # of Doors APPLICATIONS REACH IN SPECIFICATION SHEET General Case Data # of Doors 24.00 36.10 48.10 60.10 APPLICATIONS Total Display Area (ft 59.20...
  • Page 8 Installation and Operation Manual ISSUE DATE: OCTOBER 2018 Case Data FX5SL- F-Series ISSUE DATE: OCTOBER 2018 FN7SL- F-Series REACH IN SPECIFICATION SHEET REACH IN SPECIFICATION SHEET # of Doors APPLICATIONS General Case Data # of Doors APPLICATIONS 24.00 36.10 48.10 60.10 Total Display Area (ft General Case Data...
  • Page 9 F-Series Reach-in Display Case ISSUE DATE: OCTOBER 2018 Case Data FX5SL- F-Series ISSUE DATE: OCTOBER 2018 FX7SL- F-Series REACH IN SPECIFICATION SHEET REACH IN SPECIFICATION SHEET # of Doors APPLICATIONS General Case Data # of Doors APPLICATIONS 24.00 36.10 48.10 60.10 Total Display Area (ft General Case Data...
  • Page 10 Installation and Operation Manual Case Data ISSUE DATE: OCTOBER 2018 FX5SN- F-Series REACH IN SPECIFICATION SHEET # of Doors APPLICATIONS General Case Data 24.00 36.10 48.10 60.10 Total Display Area (ft 59.20 88.30 117.30 146.40 Cubic Capacity (ft Max Shelf Depth (in) [Top/Bottom] 27/27 27/27 27/27...
  • Page 11 F-Series Reach-in Display Case Case Data ISSUE DATE: OCTOBER 2018 FN6SN- F-Series REACH IN SPECIFICATION SHEET # of Doors APPLICATIONS General Case Data 26.10 39.20 52.20 65.30 Total Display Area (ft 50.20 74.90 99.50 124.10 Cubic Capacity (ft Max Shelf Depth (in) [Top/Bottom] 22/22 22/22 22/22...
  • Page 12 Installation and Operation Manual Case Data ISSUE DATE: OCTOBER 2018 FX6SN- F-Series REACH IN SPECIFICATION SHEET # of Doors APPLICATIONS General Case Data 26.10 39.20 52.20 65.30 Total Display Area (ft 64.10 95.70 127.10 158.60 Cubic Capacity (ft Max Shelf Depth (in) [Top/Bottom] 27/27 27/27 27/27...
  • Page 13 F-Series Reach-in Display Case Case Data ISSUE DATE: OCTOBER 2018 FN7SN- F-Series REACH IN SPECIFICATION SHEET # of Doors APPLICATIONS General Case Data 27.50 41.40 55.30 68.50 Total Display Area (ft 52.50 78.30 104.10 129.90 Cubic Capacity (ft Max Shelf Depth (in) [Top/Bottom] 22/22 22/22 22/22...
  • Page 14 Installation and Operation Manual Case Data ISSUE DATE: OCTOBER 2018 FX7SN- F-Series REACH IN SPECIFICATION SHEET # of Doors APPLICATIONS General Case Data 27.50 41.40 55.30 68.50 Total Display Area (ft 67.10 99.30 132.50 166.00 Cubic Capacity (ft Max Shelf Depth (in) [Top/Bottom] 27/27 27/27 27/27...

  • Page 15: Case Installation

    F-Series Reach-in Display Case IMPORTANT NOTES: (1)At ASHRAE conditions. For conditions above 75F and 55% RH increase defrost time by 15min. ASHRAE/ ARI: Total Display Area (FT2) and Gross Volume (FT3). For sizing conventional/individual condensing units, add 8% to BTUH load. Where termination temperatures are given, mechanical defrost termination is required.
  • Page 16 Installation and Operation Manual Installation The following instructions are provided for unpacking, moving, loading, and lifting the case prior to installation. NOTE: READ ALL INSTRUCTIONS CAREFULLY BEFORE BEGINNING INSTALLATION. Unpacking WARNING: Use caution when removing the strapping in the following procedure, as the shelves are very heavy and could fall causing personal injury or equipment damage.
  • Page 17 F-Series Reach-in Display Case 1. Move cases as near their permanent location as possible before removing shipping braces, skids, or rollers. 2. Remove skids, shipping braces, and optional casters, if provided. 3. Ensure all case expansion valves are correct. 4. Do not install electrical, drain lines, or refrigerant lines until all the cases have been set/placed into position and properly leveled.
  • Page 18 Installation and Operation Manual Shelf standards on back wall should be even when leveled properly. CASES MUST BE LEVELED FROM FRONT TO BACK AND END-TO-END AND SUPPORTED CONTINUOUSLY AS NEEDED WITH SHIMS Waste Outlet (Drip Pipe) Description and Location These cases are equipped with 1 1⁄2” inside diameter PVC waste outlet connection that terminates under the re- frigerator below the insulated bottom.

  • Page 19: Electrical Connections-General

    F-Series Reach-in Display Case Electrical Connections—General WARNING! Ensure the kickplate does not come in contact with the case electrical wiring. Live electrical wiring that comes in contact with the case is a shock hazard that may cause severe injury or death by electrocution. WARNING! Always disconnect the electrical power at the main disconnect when servicing or replacing any electrical component.
  • Page 20 Installation and Operation Manual Wiring Diagram - Wire Identification...
  • Page 21 F-Series Reach-in Display Case Wiring Diagram - Wire Identification (continued)
  • Page 22 Installation and Operation Manual Wiring Diagram - Electric Defrost, Top Electrical...
  • Page 23 F-Series Reach-in Display Case Wiring Diagram - Electric Defrost, Top Electrical (continued)
  • Page 24 Installation and Operation Manual Wiring Diagram - Electric Defrost, Bottom Electrical...
  • Page 25 F-Series Reach-in Display Case Wiring Diagram - Electric Defrost, Bottom Electrical (continued)
  • Page 26 Installation and Operation Manual Wiring Diagram – Hot Gas Defrost, Top Electrical...
  • Page 27 F-Series Reach-in Display Case Wiring Diagram – Hot Gas Defrost, Top Electrical (continued)
  • Page 28 Installation and Operation Manual Wiring Diagram - Hot Gas Defrost, Bottom Electrical...
  • Page 29 F-Series Reach-in Display Case Wiring Diagram - Hot Gas Defrost, Bottom Electrical (continued)
  • Page 30 Installation and Operation Manual Wiring Diagram - Off Cycle Defrost, Bottom Electrical...
  • Page 31 F-Series Reach-in Display Case Wiring Diagram - Off Cycle Defrost, Bottom Electrical (continued)
  • Page 32 Installation and Operation Manual Wiring Diagram - Off Cycle Defrost, Top Electrical...
  • Page 33 F-Series Reach-in Display Case Wiring Diagram - Off Cycle Defrost, Top Electrical (continued)
  • Page 34 Installation and Operation Manual Klixon Location Diagrams...
  • Page 35 F-Series Reach-in Display Case Door Mullion Assembly...

  • Page 36: Refrigeration Piping And Dehydration

    Installation and Operation Manual Refrigeration Piping and Dehydration Opening a Ferrule Hole The refrigeration lines are located under the deck pans. A refrigeration outlet is provided in the front right hand end of the cases. All refrigeration lines need to be as close to the drain pan as possible so as not to obstruct the air pattern or block the deck pans.

  • Page 37: Expansion Valve And Superheat

    F-Series Reach-in Display Case Expansion Valve and Superheat CAUTION: During service of this equipment, precautions should be taken to prevent loss of refrigerant to the atmo- sphere. Always install the expansion valve stem cap after making valve adjustments. The expansion valve furnished with your case has been sized for maximum coil efficiency. To adjust superheat, per- form the following: 1.

  • Page 38: Ecm Evaporator Fan

    Installation and Operation Manual ECM Evaporator Fan Product Overview This troubleshooting guide covers the evaporator fan. The fan is supplied as a complete assembly (fan blade, mo- tor mount and power harness) with no replaceable components. An electronically commutated (brush-less) motor powers the fan.
  • Page 39 F-Series Reach-in Display Case Procedures—Fan removed from the case 2—FAN HARNESS PLUG 1. Disconnect the fan plug from the case wire harness and inspect the pins. If they appear bent, straighten them out and reconnect the plug. If pins are broken, replace the power harness. 2.

  • Page 40: Operation

    Installation and Operation Manual Operation Merchandise should not be placed in the fixture until all controls have been adjusted and the case is at the proper temperature. AT NO TIME SHOULD THE CASE BE STOCKED BEYOND THE LOAD LINE OR OVER THE FRONT EDGE OF THE ADJUSTABLE SHELVES.
  • Page 41 F-Series Reach-in Display Case CAUTION—The following could damage the case: • Use of cleaning products containing chlorine, chloride ion, the words Bleach, is not recommended for unpainted stainless steel surfaces as it may cause rust to form. The operational warranty of the equipment will be voided if these products cause rust to form on the stainless steel parts or any other parts of the equipment.

  • Page 42: Parts List

    Installation and Operation Manual Parts List Item # Description Honeycomb Honeycomb Retainer Deck Pan Return Air Grill Bumper Kick Plate Fan Motor Inside Back Panel NOTE: Standard parts are provided in the parts lists. Cases may be equipped with specialty parts that were incorporated into the case(s) at the time they were manufactured.

  • Page 43: Warranty

    F-Series Reach-in Display Case Warranty KYSOR WARREN EPTA US CORPORATION EQUIPMENT LIMITED WARRANTY www.kysorwarren.com/warranty for complete details...
  • Page 44 5201 Transport Blvd. Columbus, GA 31907 P: 800.866.5596 F: 706.568.8990 www.kysorwarren.com...
