ES4300A-K1-T1
Operation

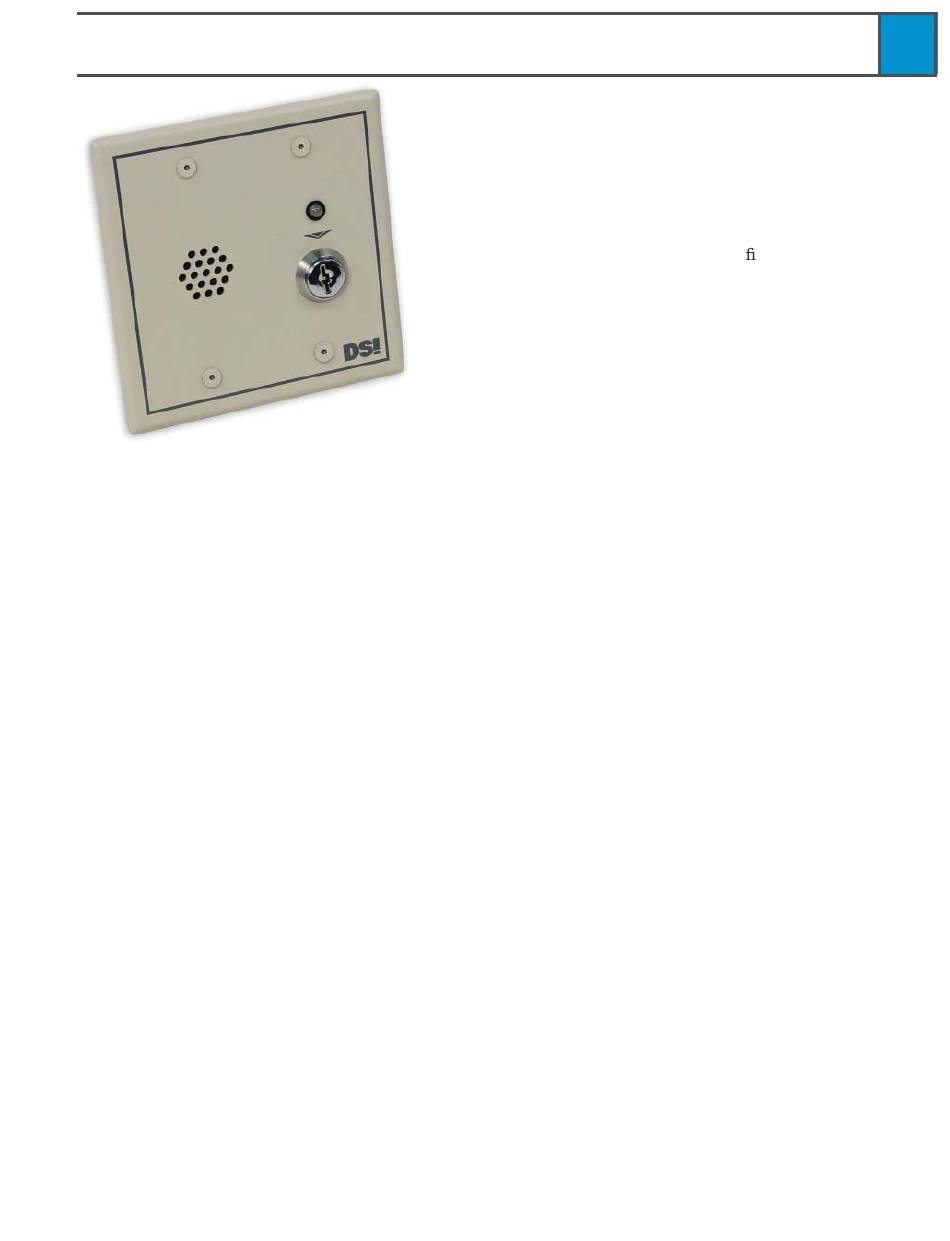

The ES4300A Series Exit Alarm (EA) is used to monitor secured doors. Typically located near
the door, it monitors door position and activates a sounder and alarm contact when a forced entry
occurs. Once triggered, the unit remains in alarm until reset by integral key switch or remotely
through a dry contact. The unit will automatically reset if the door is closed and the adjustable
auto reset time has expired. This time is user adjustable from 0 seconds to 60 seconds or manual
key reset and starts at the moment the alarm occurs.
The integral key switch may also be used to bypass the exit alarm, and allow passage for key
holders.
Access Control 13
02/28/18
Access Control > Exit Alarm (EA) > ES4300A Series
•
Enhances Access Control
*
Violation of the controlled door is
annunciated locally using an audible alarm
*
Provides intrusion/door forced detection with
audible alarm
•
Emergency Exits
*
Provides excellent security for re exits and
stairwells
•
Standard Features
*
Alarm override
*
Bi-color LED
*
Interfaces with remote key switch
*
Remote LED output (used with ES450)
*
Adjustable shunt delay 0-20 seconds
*
Tamper Switch
Designed Security, Inc.
www.dsigo.com * dsi@dsigo.com
Advertisement
Summary of Contents for DSI ES4300A Series
- Page 1 Tamper Switch Operation The ES4300A Series Exit Alarm (EA) is used to monitor secured doors. Typically located near the door, it monitors door position and activates a sounder and alarm contact when a forced entry occurs. Once triggered, the unit remains in alarm until reset by integral key switch or remotely through a dry contact.
- Page 2 Access Control > Exit Alarm (EA) > ES4300A Series Electrical Speci cations Power 12 or 24 VAC/VDC @ 200 mA Jumper Selectable Local Control Key switch reset/bypass Tamper switch (T1) Control Input N/C door contact N/O remote reset/bypass Control Output N/O &...
- Page 3 Access Control > Exit Alarm (EA) > ES4300A Series > Application Notes Exit Alarm Application The ES4300 Exit Alarm provides an audible and alarm contact activation for a “Forced Door” violation. The alarm contact may be used to remotely annunciate the security violation. The ES450 Key Switch Control may be used to reset or bypass the exit alarm from a remote location, such as the opposite side of a secured door at stairwell exits.
- Page 4 Access Control > Exit Alarm (EA) > ES4300A Series > Accessories and Options ES4300A Accessories Surface Mount Boxes DSI part number S2 Space inside for wiring Mounts directly to wall surface 2 gang For speci cations see accessories page 1...
