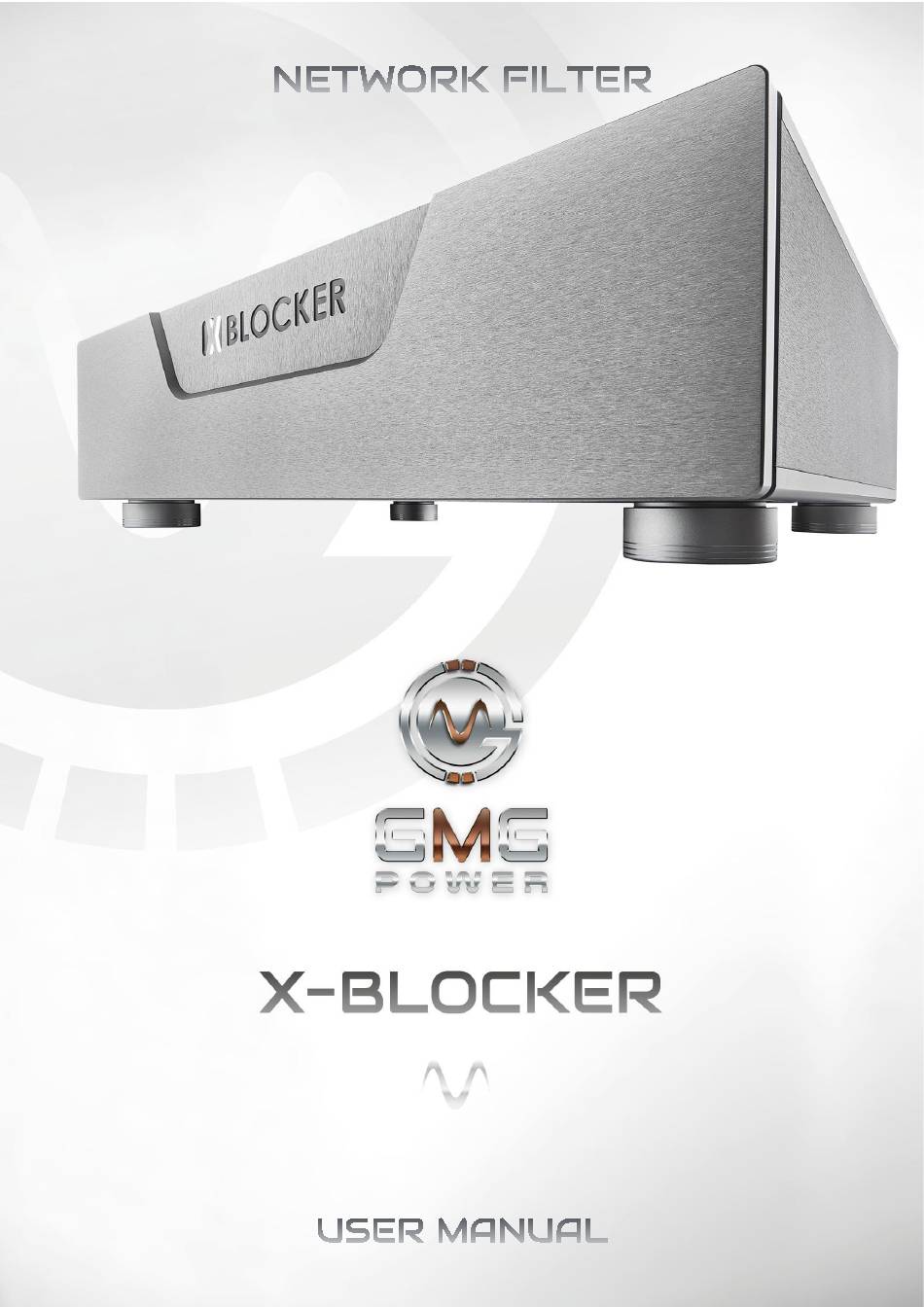

Summary of Contents for GMG Power X-BLOCKER
-
Page 2: Table Of Contents
CONTENTS: PREFACE: ..............................3 WARNING: ............................... 4 TRANSPORT AND UNPACKING: ....................... 5 PACKAGE CONTENTS: ..........................6 DESCRIPTION: ............................7 INSTALLATION AND COMMISSIONING: ....................9 MAINTENANCE AND CLEANING: ......................10 TROUBLESHOOTING: ..........................11 TECHNICAL SPECIFICATIONS: ........................ 12 WARRANTY CONDITIONS: ........................13 NORMS: .............................. -
Page 3: Preface
PREFACE: The team of GMG Power, s.r.o. congratulations on your purchase of the HIGH-END X- BLOCKER mains filter. This network filter has been designed with the maximum possible effect of harmonic noise suppression, with special emphasis on quality of make and its design. The whole filter consists of several blocks. -
Page 4: Warning
In the event of user intervention, the warranty will be lost. In case of problems or malfunctions, contact your dealer or the manufacturer of GMG Power s.r.o. CAUTION AND WARNING: All instructions and warnings on the equipment and in the user manual must be followed. -
Page 5: Transport And Unpacking
TRANSPORT AND UNPACKING: The weight of this device reaches the limit of 20 kg. Therefore, make sure you use the correct lifting techniques to avoid back strain and injury. Transport the product only in the supplied packaging. The shipping packaging has been designed to protect its contents and not be damaged under normal shipping conditions. -
Page 6: Package Contents
PACKAGE CONTENTS: You will find the following items in the package: ✓ 1pc X-BLOCKER mains filter ✓ 1pc user manual ✓ Packaging filling... -
Page 7: Description

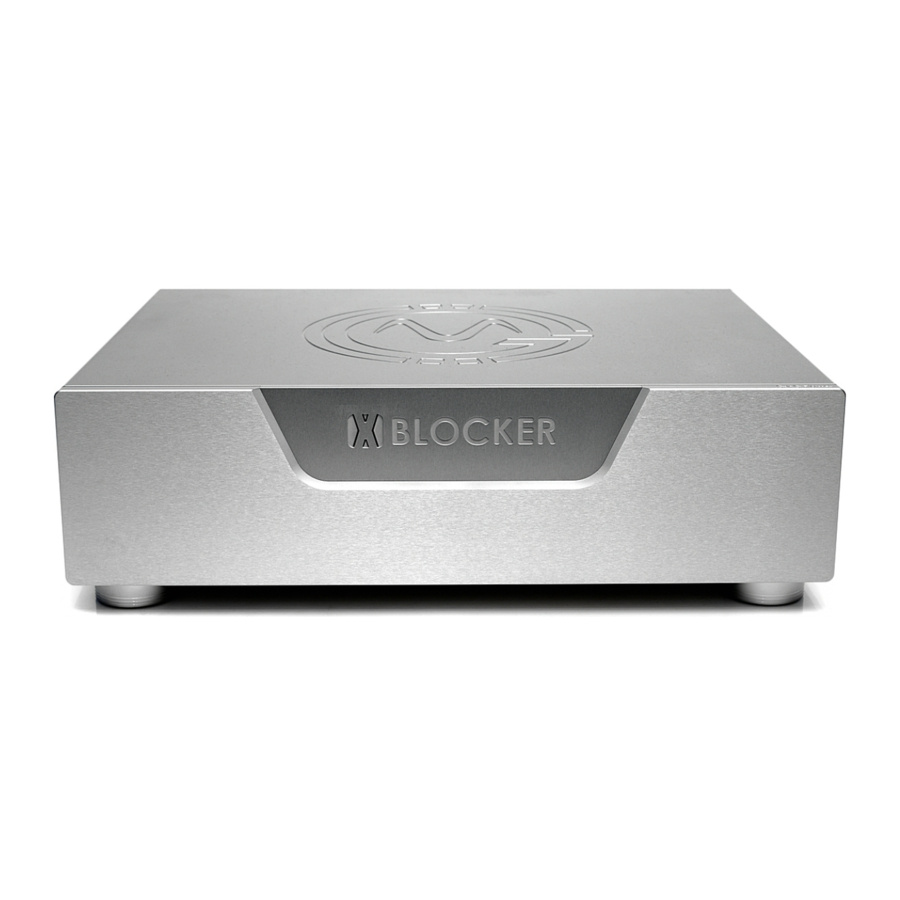

DESCRIPTION: Front side There is an On/Off status indication on the front. This condition is indicated by the illuminated letter X in the milled inscription, which glows white light. The device is free of any switching, control and safety elements. After connecting the power cord, the device starts working. - Page 8 Back side: Output sockets - 4x Schuko type output socket. Power socket IEC C20 - The power supply is connected via a C19 type connector. The device is delivered without a power cord. CAUTION Do not connect devices exceeding the continuous consumption of 16A to one socket! The total continuous current drawn from all sockets must not exceed 20A.
-
Page 9: Installation And Commissioning
INSTALLATION AND COMMISSIONING: Make sure that you have installed the device in a safe place from which it cannot fall or tip over and thus endanger your property or your health. Connect the mains lead to the socket marked No.2. according to the figure above. -
Page 10: Maintenance And Cleaning
MAINTENANCE AND CLEANING: The device is designed as maintenance-free. Use only a dry microfiber cloth for cleaning. It is forbidden to use any cleaning agents based on liquid sands or on hydroxides, alcohols, acids or thinners! -
Page 11: Troubleshooting
TROUBLESHOOTING: Problem A possible solution Make sure that the device is properly connected to the mains and the C19 connector is connected correctly. The device does not Find out if you have a sufficiently large mains supply and if the current protection (circuit breaker in the junction box) is not switched off. -
Page 12: Technical Specifications
TECHNICAL SPECIFICATIONS: 230V 50/60Hz ±10% Nominal input voltage: Maximum continuous input current: 230V 50/60Hz ±10% Nominal output voltage: 3 700W i.e 16A per socket Maximum load: 4 600W i.e 20A on all sockets together Max. power consumption: 4 600W i.e 20A / 230V Peak load: 10 000W Rated no-load power:... -
Page 13: Warranty Conditions
The right to claim the warranty expires in the event of unauthorized removal of the device covers and damage to the seal by the manufacturer and any intervention in the device. GMG Power s.r.o. reserves the right to make any changes to the information contained in this manual without prior notice. -
Page 14: Norms
NORMS: Device X-BLOCKER meets the following standards: EN 60065:2014 +A11:2017 +AC:2016 +AC2:2017 EN 55032:2015 +AC Jul.:2016 EN 61000-3-2:2014 EN 61000-3-3:2013 EN55024:2010 +A1:2015... - Page 15 Manufacturer's address: GMG Power, s.r.o.; Nedakonice 567, 68738 ID: 07166885 VAT No. (EU-ID): CZ07166885 Email (service): info@gmgpower.cz Tel: +420 773 299 599...
