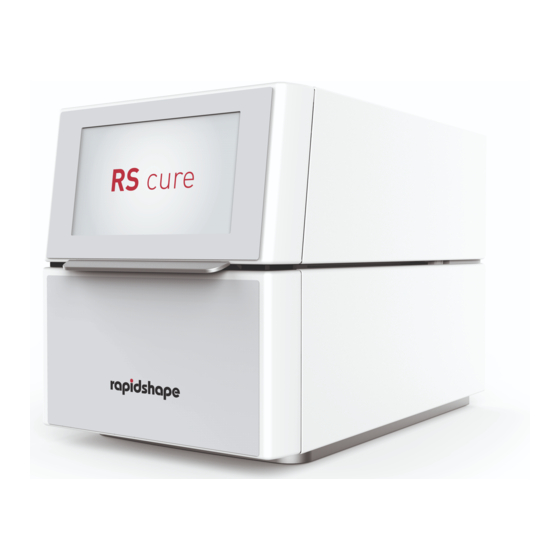

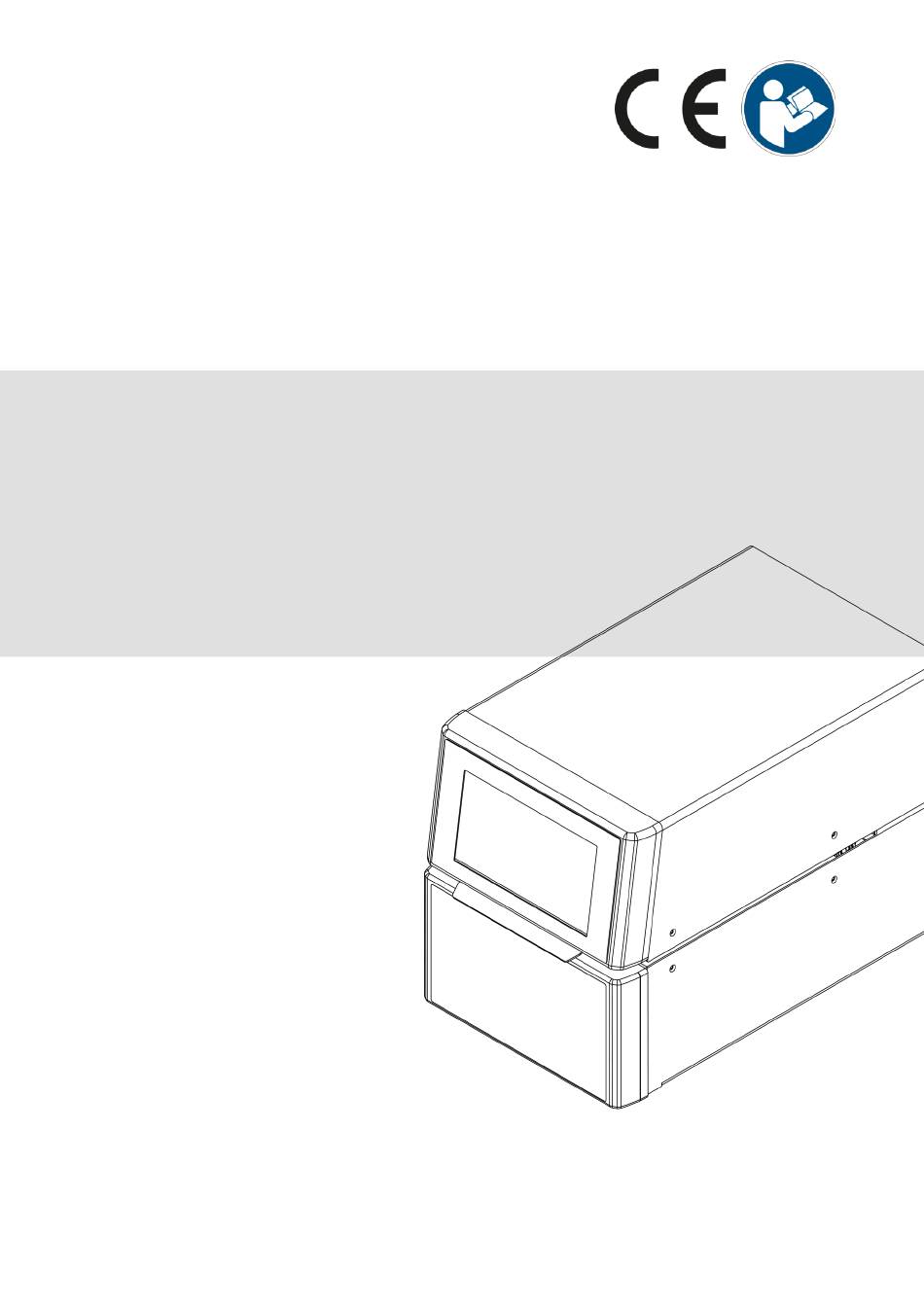

- Page 1 D cure │ P cure │ SHERAprint cure 3Decure Original Operating Instructions Rapid Shape GmbH │ Roemerstrasse 21 │ 71296 Heimsheim │ Germany Phone +49 (0)7033 309 878 0 │ info@rapidshape.de │ www.rapidshape.de Revision: 14.05.2019 │ Version: 1 │ DOCR000251...
- Page 2 Operating Instructions RS cure │ D cure │ P cure │ SHERAprint cure │ 3Decure About these Operating Instructions These operating instructions enable the safe and efficient use of the machine. The operating instructions are part of the product and must be kept accessible to the personnel in its immediate vicinity at all times.
-
Page 3: Table Of Contents
Operating Instructions RS cure │ D cure │ P cure │ SHERAprint cure │ 3Decure Safety ................5 Symbols in this Manual ..........5 Intended use ...............6 1.2.1 Digital Workflow ............6 Residual Risks .............7 1.3.1 Electrical Current ...........7 1.3.2 Mechanical Dangers ..........8 1.3.3... - Page 4 Operating Instructions RS cure │ D cure │ P cure │ SHERAprint cure │ 3Decure Shut Down the Machine for a Long Time (> 1 Month) ..22 Cleaning & Maintenance ..........23 Safety during Cleaning and Maintenance ....23 Overview of the Cleaning & Maintenance Work ..23 8.2.1...
-
Page 5: Safety
Operating Instructions RS cure │ D cure │ P cure │ SHERAprint cure │ 3Decure Symbols in this Manual Safety Instructions The safety instructions in this manual are marked with symbols. The safety instructions are introduced by signal words that express the extent of the hazard. -
Page 6: Intended Use
Operating Instructions RS cure │ D cure │ P cure │ SHERAprint cure │ 3Decure Special Safety Instructions In order to draw attention to particular dangers, the following symbols are used in safety notices: Warning: Dangerous electrical voltage Warning: Hand injuries Tips &... -
Page 7: Residual Risks
Operating Instructions RS cure │ D cure │ P cure │ SHERAprint cure │ 3Decure Residual Risks The machine is designed and manufactured according to the state of the art and according to current safety requirements. Nevertheless, residual risks remain, which require prudent action. The following lists the residual risks and the resulting behaviour and measures. -
Page 8: Mechanical Dangers
Operating Instructions RS cure │ D cure │ P cure │ SHERAprint cure │ 3Decure 1.3.2 Mechanical Dangers C A U T ION ! Risk of injury due to moving parts! The machine consists in part of accessible parts that can easily cause hand injuries through crushing or getting caught. -
Page 9: Personal Protective Equipment
Operating Instructions RS cure │ D cure │ P cure │ SHERAprint cure │ 3Decure The following are the required qualifications of the personnel to work with the machine: Operator The operator is the person who operates the equipment for commercial... -
Page 10: Environmental Protection
Operating Instructions RS cure │ D cure │ P cure │ SHERAprint cure │ 3Decure Protective Gloves Wearing protective gloves protects the skin from contact with skin damaging materials. Environmental Protection E NV IRO N MEN TA L P ROT E C TI ON ! -
Page 11: Overview
Operating Instructions RS cure │ D cure │ P cure │ SHERAprint cure │ 3Decure Machine Assembly / Operating Elements Figure 1: Machine overview Gas connection Shock absorber Air supply/inlet Air outlet Glass bottom USB/Ethernet connection Seal Power connection Handle... -
Page 12: Serial Plate
Operating Instructions RS cure │ D cure │ P cure │ SHERAprint cure │ 3Decure Serial Plate The serial plate is situated on the machine rear It shows the most important technical data and the serial number of the machine. -
Page 13: Transport & Storage
Operating Instructions RS cure │ D cure │ P cure │ SHERAprint cure │ 3Decure Safety during Transport N O TE ! Material damage caused by improper transport! Improper transport may cause the machine to fall. This can cause material damage. -
Page 14: Scope Of Delivery
Operating Instructions RS cure │ D cure │ P cure │ SHERAprint cure │ 3Decure Scope of Delivery The standard delivery includes the following parts: — Post curing unit — Power supply Optionally, additional accessories can be supplied. For more information, please contact Rapid Shape. -
Page 15: Installation
Operating Instructions RS cure │ D cure │ P cure │ SHERAprint cure │ 3Decure Installation Safety D A N GER ! Danger to life due to electric current! Incorrect connection, insulation faults, foreign objects (dust, liquid due to inappropriate installation environ- ment) or lack of grounding can lead to housing parts being live. -
Page 16: Connecting
Operating Instructions RS cure │ D cure │ P cure │ SHERAprint cure │ 3Decure 3. Remove all transport locks from the machine. 4. Make sure that the four feet of the machine are completely resting on the ground. Connecting 4.3.1 Power Connection... -
Page 17: Emergency Shutdown
Operating Instructions RS cure │ D cure │ P cure │ SHERAprint cure │ 3Decure In an emergency, proceed as follows: 1. Unplug the mains plug. 17 │ 27 Rapid Shape GmbH │ DOCR000251... -
Page 18: Operation
Operating Instructions RS cure │ D cure │ P cure │ SHERAprint cure │ 3Decure Safety during Operation C A U T ION ! Risk of injury due to moving parts! The machine consists in part of accessible parts that can easily cause hand injuries through crushing or getting caught. -
Page 19: Select Operating Mode & Start
Operating Instructions RS cure │ D cure │ P cure │ SHERAprint cure │ 3Decure For the curing of residual material, the complete disposable reservoir (D10+ capsule) can be placed in the exposure chamber. Select Operating Mode & Start To start the curing process, you can choose from the following three operating modes: —... -
Page 20: Operating Mode 'Material
Operating Instructions RS cure │ D cure │ P cure │ SHERAprint cure │ 3Decure 6.4.2 Operating Mode ‚Material’ In the ‚Material’ operating mode, the curing process is performed based on the materials used. To start the process, please proceed as follows: 1. -
Page 21: Check The Job
Operating Instructions RS cure │ D cure │ P cure │ SHERAprint cure │ 3Decure Check the Job After the cleaning and curing process, check the component for the desired result: 1. Open the lid. 2. Remove the components. 3. Close the lid. -
Page 22: Decommissioning
Operating Instructions RS cure │ D cure │ P cure │ SHERAprint cure │ 3Decure Switching Off the Machine To switch off the machine, please proceed as follows: 1. Go to the Home screen 2. Press the ‚Shut Down’ button. The shutdown countdown will appear. -
Page 23: Cleaning & Maintenance
Operating Instructions RS cure │ D cure │ P cure │ SHERAprint cure │ 3Decure Safety during Cleaning and Maintenance C A U T ION ! Risk of injury due to moving parts! The machine consists in part of accessible parts that can easily cause hand injuries through crushing or getting caught. -
Page 24: Check & Clean Filter
Operating Instructions RS cure │ D cure │ P cure │ SHERAprint cure │ 3Decure microfibre cloth moistened with glass cleaner or isopropanol. For persistent soiling, e.g. hard incrustations, the glass bottom must be replaced. Contact Customer Service for more information. -
Page 25: Disassembly & Disposal
Operating Instructions RS cure │ D cure │ P cure │ SHERAprint cure │ 3Decure Safety Instructions for Disassembly & Disposal Electrical Accessories D A N GER ! Danger to life due to electric current! There is an imminent danger of electrocution in the event of contact with live parts. - Page 26 Operating Instructions RS cure │ D cure │ P cure │ SHERAprint cure │ 3Decure E NV IRO N MEN TA L P ROT E C TI ON ! Incorrect disposal of electronic waste, electronic components, lubricants and other additives can be hazardous to the environment.
-
Page 27: Technical Details
Operating Instructions RS cure │ D cure │ P cure │ SHERAprint cure │ 3Decure 10.1 Operating Data Power Part volume, max. [mm] Ambient temperature [°C] +15 to +40 Storage temperature [°C] -15 to +70 Max. humidity *All values are approximate.
